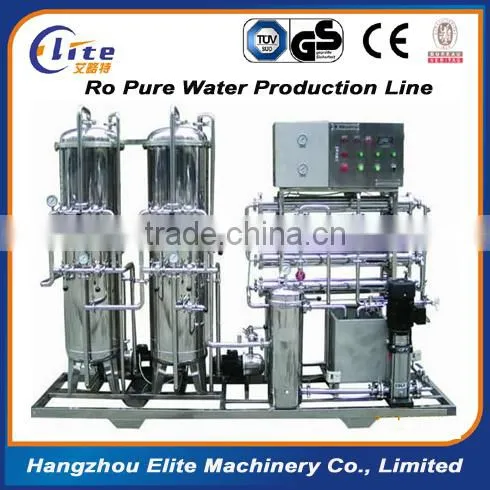

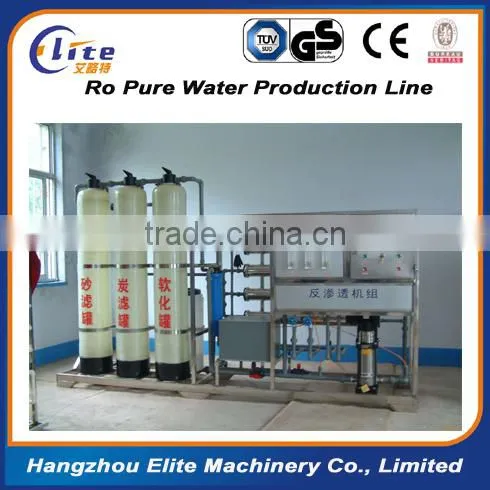

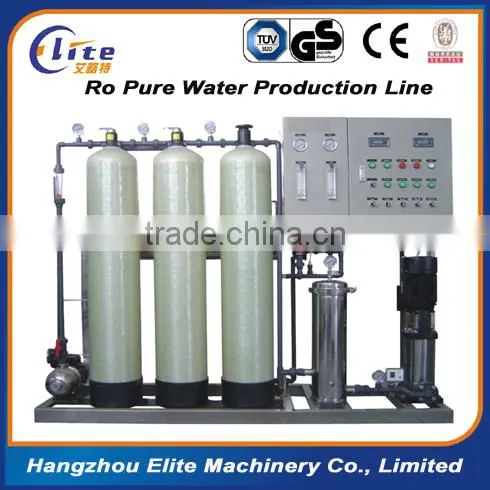

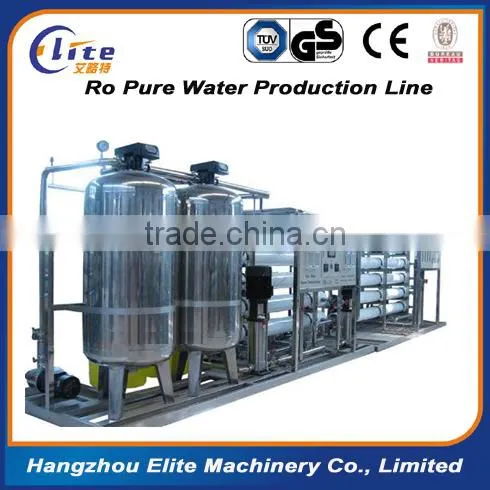

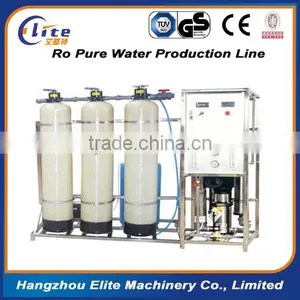

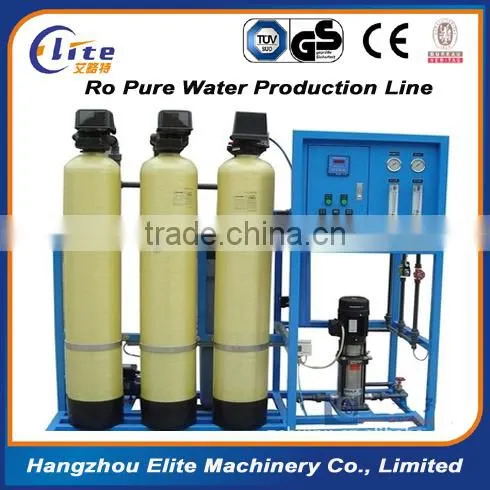

RO Pure Water Treatment Equipment/ Water Purification Machine/ Water Treatment Machine
Specification
1. Best quality, we strictly comply to quality standards
2. Best price, we have our own factory
3. Best after-sale service
4. New and rational design, it also can be customized
Main parameter:
Model: |
RO-1000I(500L/H) |
Capacity of pure water: |
500L/H 25℃ 3000GPD |
General power: |
2.1KW |
Electrical power: |
AC 220V 9A /AC 380V 5A 50Hz |
RO membrane housing: |
FRP 40inch 2pcs |
RO membranes: |
4040 2 items(1grade) from USA HYDRANAUTICS |
Multi-phases pump: |
CDL2-15/1.5KW 1 item 2T/H, H:112M |
Pre-filter: (sand& carbon filter) |
FRP1252(300*1340mm) 2 items with hand valve |
PP sediment membranes filter tube: |
90*1000PVC 1 item 1 or 5 micron |
Water softener |
FRP1252(300*1340mm)1 item With imported hand valve |
Booster pump: |
BJZ055/ 550W 1 item |
UV sterilizing lamp |
20W |
Active carbon filter: |
25kg |
Quartz sand filter: |
50kg |
Weight of the machine |
270kg |
Out size of main machine: |
1700×710×1700mm |
| |
Design basis
1. Raw water: According client’s water
2. Conductivity of raw water <150us/cm
3. Pure water
1) Capacity:500L/H
Temperature: 25 centigrade degrees
2) Quaity of pure water: According with National water qualty GB17323-1998
Description of the process
- 1. Adopt RO water treatment equipment, conductivity of pure water is always than 10 us/cm, quality better than National water qualty GB17323-1998. Pure water is sterilized, no grain and taste sweet.
- 2. Adopt ESPA-4040 RO membrane, can make the recovery to be 50~75%, desalinization ratio to be 98%. Can get rid off 99.99% of bug,95% of toxic metal, 99% of the radionuclide, and 95% of the organic material.
Process:
Whole process of pure water production:

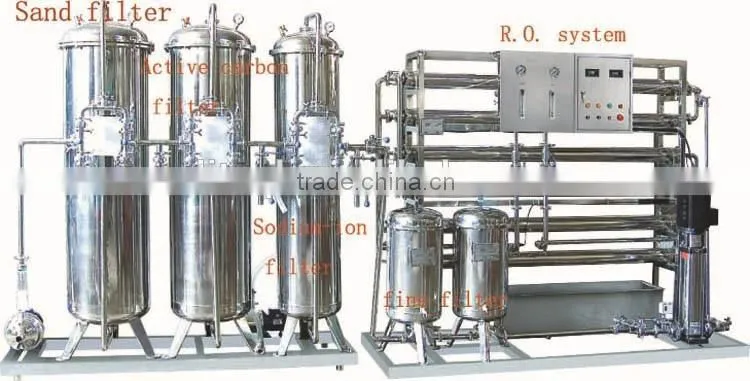

Source water--Source water pump -Quartz sand filter -Active Carbon filter -water softener -PP sediment filter -RO main machine -Pure water

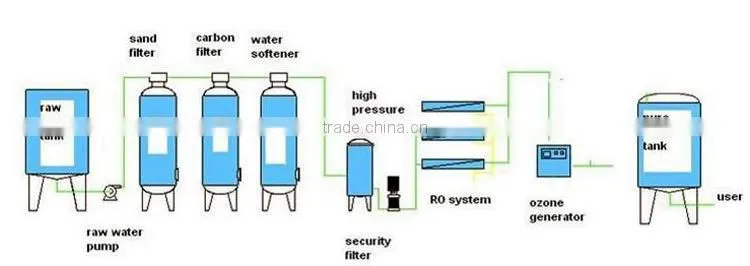

Chart of the process:
We focus on :
1- Solution 2 -Quality 3 -Delivery Time 4 -Service
Quick Response- All enquiries will be replied within 24 hours
Faster Delivery-Generally speaking, the order will be finished within 20-25working days
