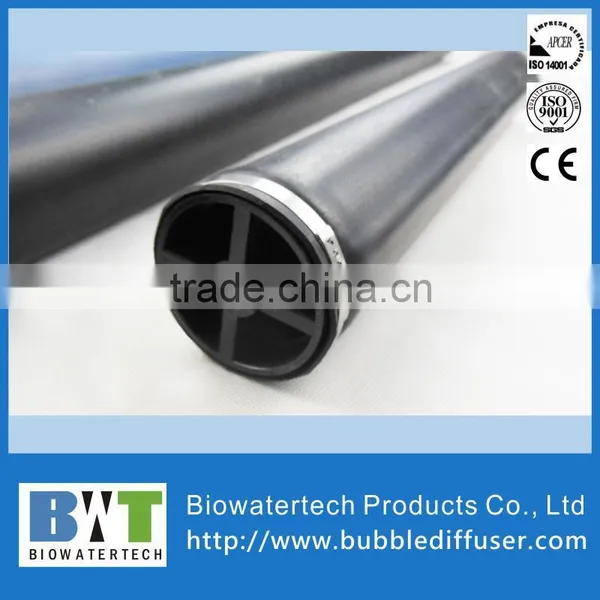

BWT Air Fine Bubble Diffuser

BWT Air Fine Bubble Diffuser thumbnail-1
BWT Air Fine Bubble Diffuser photo-1
US$ 1 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
BWT
Model Number:
BT9005
Contact Supplier Request Quote Chat Now
Gaozhou Biowatertech Product Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name BWT
Model Number BT9005

Specifications

Advantages:
1. Easy to install .
2. Low loss of pressure due to the non-buoyancy tube design.
3. Antomatic cleaning function.

BWT air fine bubble diffuserBWT air fine bubble diffuserBWT air fine bubble diffuserBWT air fine bubble diffuserBWT air fine bubble diffuserBWT air fine bubble diffuser



Tube Fine bubble  Diffusers:



Structure:



  1. 1.       Non-buoyancy aeration tube design.
  2. 2.       EPDM/ SILICONE/ TPU membrane adoption.
  3. 3.       ABS tube diffuser support and air intake.
  4. 4.       Germany SS304 clamps are fixed on the aeration tube membrane.
  5. 5.       Flash board and NPT3/4’’ theading connections for option.




Advantages:



  1. 1.       Easy to install .
  2. 2.       Low loss of pressure due to the non-buoyancy tube design.
  3. 3.       Antomatic cleaning function to prevent blocking.
  4. 4.       Preventing corrosion with ABS raw material .
  5. 5.       Low maintenance and service life can be 5~10 years.
  6. 6.       Low energy consumption.
  7. 7.       Well packaged with foampaper in each tube piece.




Application



1,Municipal/industrial/human wastewater treatment.

2.Lagoon system.

3.Fishing farms aeration

4.Active sludge treatment





Item BT6305 BT6307 BT6310
Size(mm) 63mm*500mm 63mm*750mm 63mm*1000mm
Working air flow (m3/h) 1~6 1~8 1~14
Designed air flow(m3/h) 3 4 7
Oxygen transform efficiency (%) >35 >35 >35
Service area (m2/piece) 0.5~1 0.6~1.2 0.8~1.6
Bubble size(mm) 0.7~1.9 0.7~1.9 0.7~1.9
Pressure loss (kpa) 2.2~4.8 2.2~4.8 2.2~4.8
Oxygenate capability (kgO2/h) 0.6 0.7 0.9
Theoretic dynamic efficency(kgO2/kw.h) >8.6 >8.6 >8.6
Membrane service life >5 >5 >5


Item BT9005 BT9007 BT9010
Size(mm) 90*500mm 90*750mm 90*1000mm
Working air flow (m3/h) 2~10 2~14 2~20
Designed air flow(m3/h) 5 7 10
Oxygen transform efficiency (%) >35 >35 >35
Service area (m2/piece) 0.8~1.6 1.3~2.6 1.8~3.2
Bubble size(mm) 0.7~1.9 0.7~1.9 0.7~1.9
Pressure loss (kpa) 2.2~4.8 2.2~4.8 2.2~4.8
Oxygenate capability (kgO2/h) 0.65 0.85 1.4
Theoretic dynamic efficency(kgO2/kw.h) >8.6 >8.6 >8.6
Membrane service life >5 >5 >5

 BWT air fine bubble diffuser
