XSJ-L Water-cooled PP Film Blowing Machine

XSJ-L Water-cooled PP Film Blowing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Film
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic No
Place of Origin Fujian, China
Brand Name Donghailong
Model Number XSJ55-FMX800L
Voltage 220/380V
Power(W) ~55kw
Dimension(L*W*H) 6.7*2.5*4.2m
Weight ~2700kg
Certification SGS,CE,TUV
Warranty 1 YEAR, 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Polypropylene PP Plastic Film Extruder&Film Blowing/Blown Machine Water-cooled
XSJ65-FMX1000L


Features:





XSJ-L series lower water-cooled film blowing machine employs lower blowing and self-overflowing method to produce products. The product is features by high transparency, good printing performance and adhesive. The extrusion system of the machine and the plasticization of the machine head have met the international advanced standard. Additionally, there are many types of equipment such as rotary machine head, static elimination and fully-automatic precise temperature control available for your choice. It is the ideal packing material for food, garment and other high grade products.

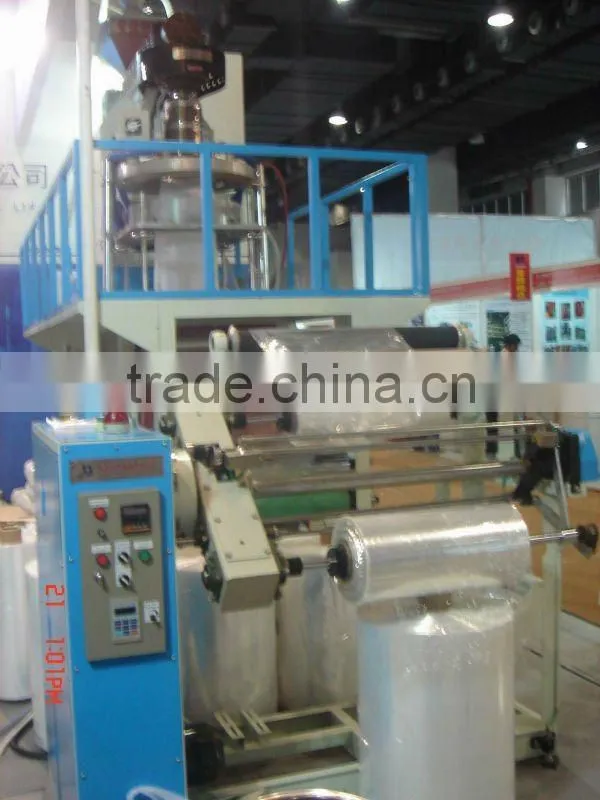

 XSJ-L Water-cooled PP film blowing machine


Main Technology Parameters


1) LAYER NUMBER: One layer
MAX. FILM WIDTH: 650mm
FILM THICKNESS: 0.020-0.12 mm
RAW MATERIAL: PP
Output: 50 KG/H


2) EXTRUDER:
SCREW DIAMETER: Φ55mm
SCREW L/D: 28:1
HEATER CAPACITY: 10.7kw
DRIVING MOTOR: 18.5kw



3) DIE:
DIE DIAMETER: Φ250mm
HEATER CAPACITY: 8 KW
COOLING AIR BLOWER: 0.75 KW



4) HAUL-OFF:

DRIVING MOTOR: 1.5 KW
TAKE-UP SPEED: 10-55 m/min
WINDER DRIVE MOTOR: 3.3 KW
TEMPERATURE CONTROL: 7 units
WHOLE POWER WITH TOTAL MACHINE: About 45KW
SHAPE SIZE: (L x W x H) 6.0*1.8*3.6m
WEIGHT: About 2700KG
