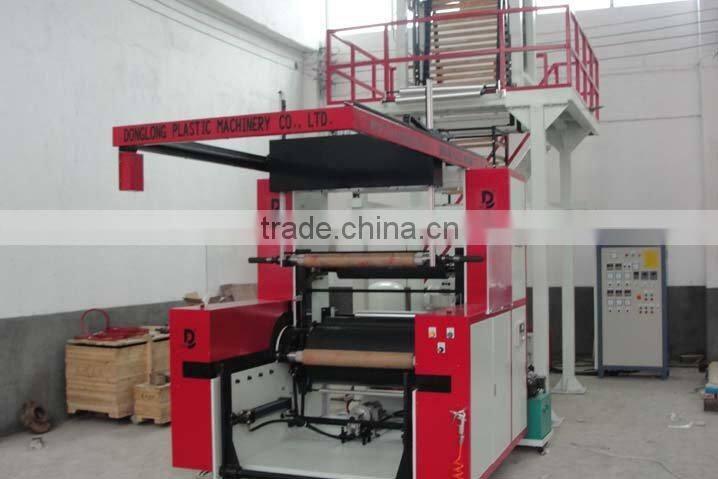

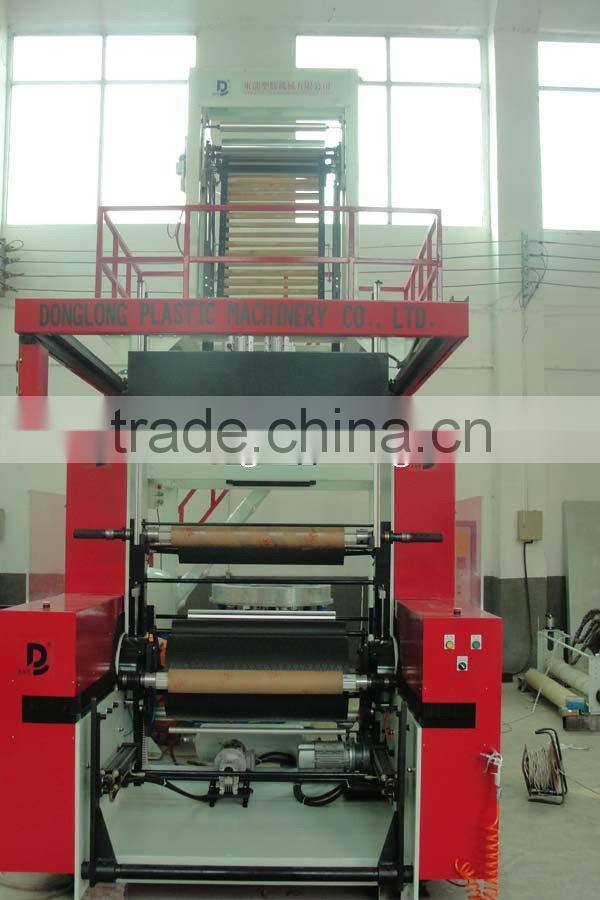

Automatic Winder Plastic Pe Film Blowing Machine

Automatic Winder Plastic Pe Film Blowing Machine thumbnail-1
Automatic Winder Plastic Pe Film Blowing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Donglong Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Film
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Fujian, China
Brand Name Donghailong
Model Number SJ50-FMS850PG
Voltage 220-380V
Power(W) 35kw
Dimension(L*W*H) 5.5*2.8*4.2m
Weight 3t
Certification CE,SGS,TUV
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

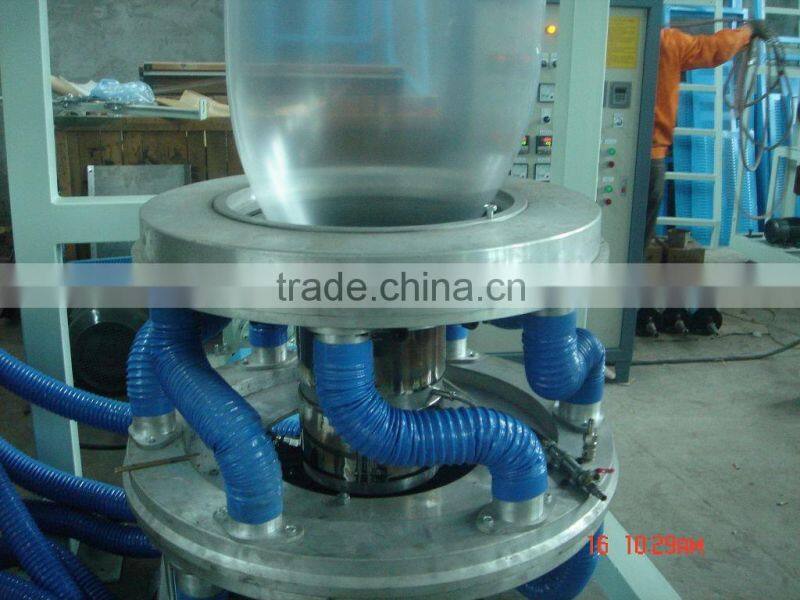

Rotary mould head and fully-automatic winder
Raw material: HDPE,LDPE,LLDPE



Features:

1.  The  film machine  employs new technologies such as rotary mould head and fully-automatic winder. It is featured by reasonable structure, few labor force, little waste, high efficiency and excellent quality etc.



2.  The products are widely used in application of package of civil and industrial products such as food, garment, textile and daily necessities. The products include vest bag, shopping bag, garment bag and food bag etc.





MAIN TECHNICAL PARAMETERS:



MODEL NO.

SJ45-FMS650PG

SJ55-FMS850PG

SJ55-FMS1100PG

SJ65-FMS1300PG

LAYER NUMBER

1

MAX.FILM WIDTH

LD mm

550

800

1050

1250

HD mm

500

750

1000

1200

FILM THICKNESS

LD mm

0.015~0.10

0.020~0.15

0.020~0.18

HD mm

0.006~0.07

0.006~0.10

0.015~0.10

0.015~0.12

OUTPUT

LD Kg/h

30

40

50

65

HD Kg/h

25

32

40

50

RAW MATERIAL

HDPE,LDPE,LLDPE

EXTRUDER



SCREW DIAMETER

mm

Φ45

Φ55

Φ55

Φ65

SCREW L/D

28:1

28:1

30:1

25:1

HEATER CAPACITY

kw

8.9

10.7

10.7

13.2

DRIVING MOTOR

kw

11

15

18.5

22

DIE:( Rotating die is optional)

DIE DIAMETER( LD&HD FREE CHOICE)

mm

LDPE Φ 150

LDPE Φ 200

LDPEΦ250

LDPEΦ300

HDPEΦ50Φ70

HDPEΦ60Φ80

HDPEΦ60Φ90

HDPEΦ80Φ110

HEATER CAPACITY

kw

LDPE 4.0

LDPE 4.8

LDPE6.15

LDPE6.7

HDPE: 3.45

HDPE: 3.45

HDPE: 3.45

HDPE: 6.1

COOLING AIR BLOWER

kw

1.5

2.2

3

HAUL-OFF:



DRIVING MOTOR

kw

0.75

1.5

TAKE-UP SPEED

m/min

10~70

WINDER DRIVE MOTOR

kw

4

4.5

TEMPERATURE CONTROL

point

5

6

WHOLE POWER WITH TOTAL MACHINE

kw

~35

~36.5

~43

~52

SHAPE SIZE

m

5.5 X 2.8 X 4.2

6.2 X 3.0 X 4.8

6.5 X 3.3*5.2

7.3 X 3.5 X 5.5

WEIGHT

t

3

3.5

4.2

4.8

Design and the Specification are subject to change without any notice.
