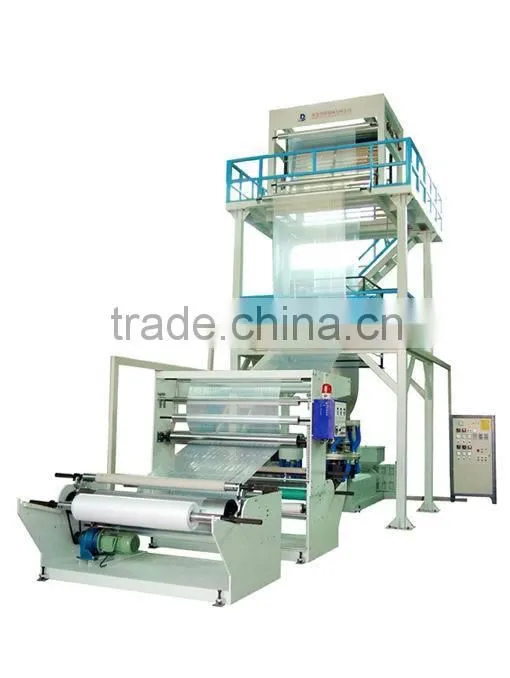

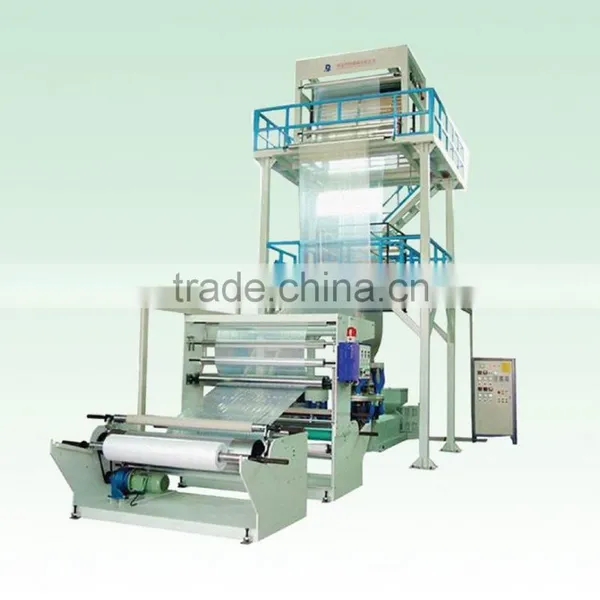

LD film blowing machine LDPE film blowing machine
- 15 Set / Sets per Month
- Xiamen port
- T/T
-
High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
-
Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
-
Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
-
custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
-
Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
-
Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
| Condition: | New | Application: | Film | Plastic Processed: | PE |
| Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Other, free choice | Place of Origin: | Fujian, China |
| Brand Name: | Donghailong | Model Number: | film blowing machine: SJ65-FMS1500N, SJ75-FMS1700N, SJ90-FMS2000N | Voltage: | 380V, 50HZ(OR 220V, 60HZ) |
| Power(W): | 80~120KW | Dimension(L*W*H): | Different model different size | Weight: | 5200~7500KG |
| Certification: | CE | Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
LD film blowing machine LDPE film blowing machine
Features:
1) The LD film blowing machine is used to produce the mulch plastic film, agricultural film and outer package film made of LDPE, LLDPE and LLDPE.
2) The PE film blowing machine employs some new technologies like the most advanced heat running technology and special wind ring that used to extrude the shaped mulch plastic film. The machine is designed reasonably and elegantly. It is small and is easy to operate and maintain. The product features with good plasticization, high physical and technology and reasonable accessories, the machine is featured by high output, low energy consumption, good stability and reliability etc. Therefore, it is the ideal equipment to agricultural mulch plastic film in the new century.
Main Technical Parameters:
Model No. | SJ65-FMS1500N | SJ75-FMS1700N | SJ90-FMS2000N |
Layer Number | Single Layer | ||
Max. Folded Film Width | 1400mm | 1600mm | 1900mm |
Film Thickness | 0.015~0.20mm | 0.02~0.25mm | 0.02~0.25mm |
Output | 110kg/h | 120kg/h | 130kg/h |
Raw Material | HDPE,LDPE,LLDPE | ||
Screw Diameter | Φ65mm | Φ75mm | Φ90mm |
Screw L/D | 30:1 | 28:1 | 25:1 |
The Total Power of the Machine | ~80kw | ~95kw | ~120kw |
Shape Size | 6.7*3.2*7.0m | 7.3*3.5*7.5m | 8.0*4.0*8.0m |
Weight | ~5200kg | ~6700kg | ~7500kg |
Note: Correct specification depend on the actual model all specifications are subject to change without prior notice. | |||
