Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > Co-extruded Cast Embossed Film Line(Single Layer/Multi Layer)

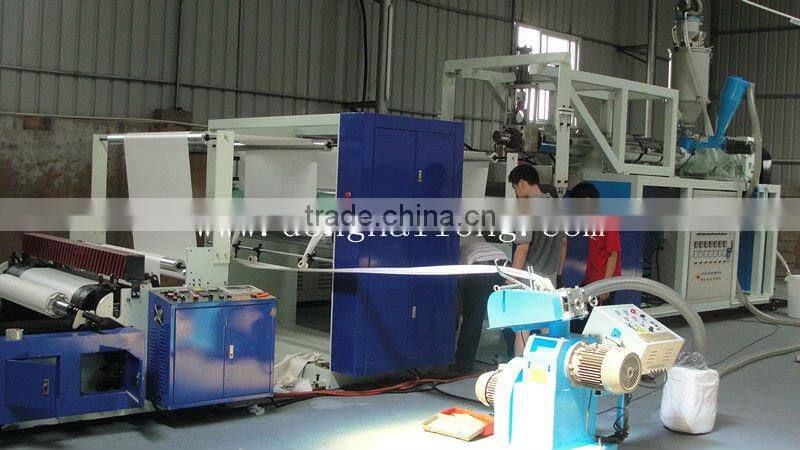

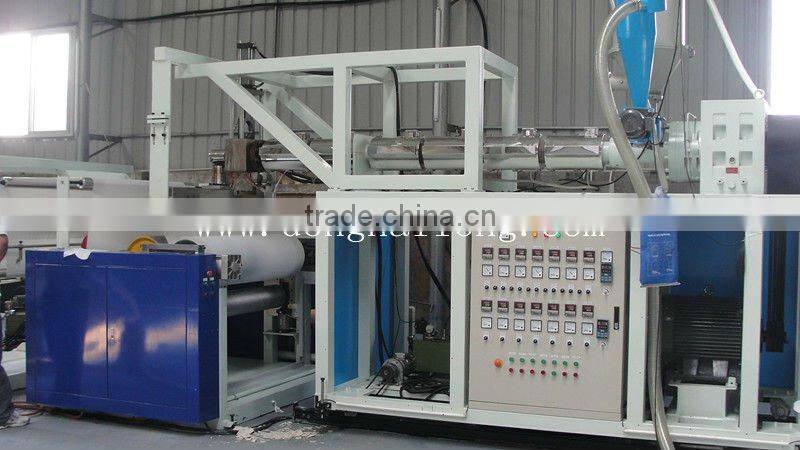

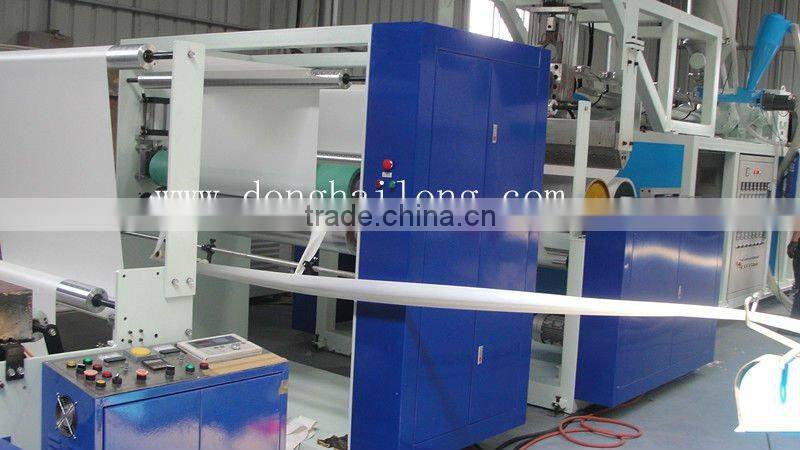

Co-extruded Cast Embossed Film Line(Single Layer/Multi Layer)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single-layer/Multi-layer Co-extruded Cast Embossed Film LineNegotiableMOQ: 1 Set -
Plastic Embossed Cast Film Extrusion LineNegotiableMOQ: 1 Set
-
TSJ-3500L Single-layer Co-extruded Cast Embossed Film LineUS$ 2,000 - 50,000MOQ: 1 Set
-
Newest Co-Extruded Cast Embossed Film LineNegotiableMOQ: 1 Set
-
Co-extrusion pe Cast Stretch Film LineNegotiableMOQ: 1 Set
Condition
New
Application
Film
Plastic Processed
PE
Blow Moulding Type
Extrusion Blow Moulding
Automatic
No
Place of Origin
Fujian, China
Brand Name
Donghailong
Model Number
TSJ-2000L
Voltage
220/380V
Power(W)
~165kw
Dimension(L*W*H)
14*5.5*4.0m
Weight
~27T
Certification
CE,TUV,SGS
Warranty
1 YEAR, 1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Main techinial parameters:
| Model | TSJ-1500L | TSJ-2000L | TSJ-2500L | TSJ-3500L |
| Screw Diameter | Φ 90mm | Φ 110mm | Φ 125mm | Φ 150mm |
| L/D Ratio of Screw | 35: 1 | 35: 1 | 35: 1 | 35: 1 |
| Width of Die Head | 1500mm | 2000mm | 2500mm | 3500mm |
| Width of Finished Products | 1200mm | 1700mm | 2200mm | 3200mm |
| Thickness of Finished Products | 0.02~0.20mm | 0.02~0.20mm | 0.02~0.20mm | 0.02~0.20mm |
| Max. Extrusion Capacity | 150kg/h | 200kg/h | 240kg/h | 320kg/h |
| Total Power | 120kw | 165kw | 210kw | 260kw |
| Overall Dimensions(LxWxH) | 13x4.5x4.0m |
14x5.5x4.0m |
15x6.0x4.2m |
17x7.5x4.3m |
| Weight | ~20T | ~27T | ~32T | ~43T |
|
Note: Correct specifications depend on the actual model all specifications are subject to change without prior notice. | ||||
