DL-D Series Hot Seal and Cool Cut Bottom Sealing Bag Making Machine

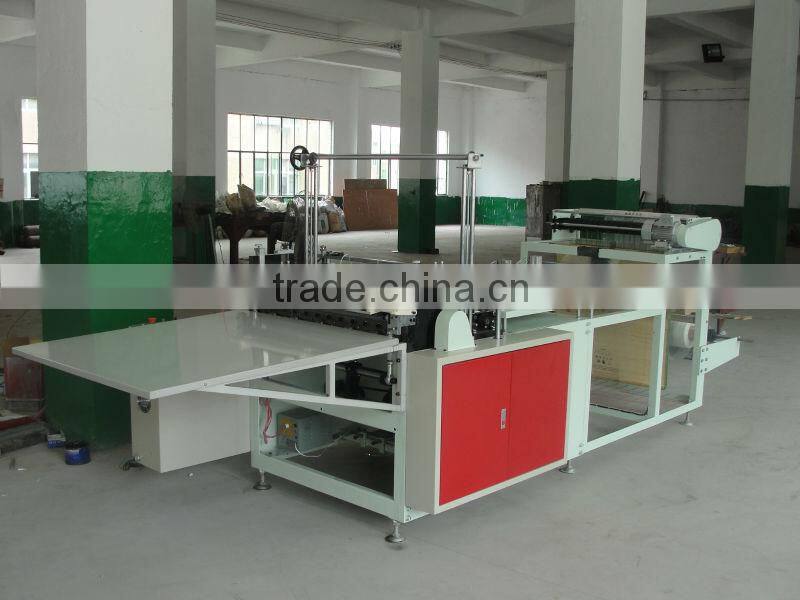

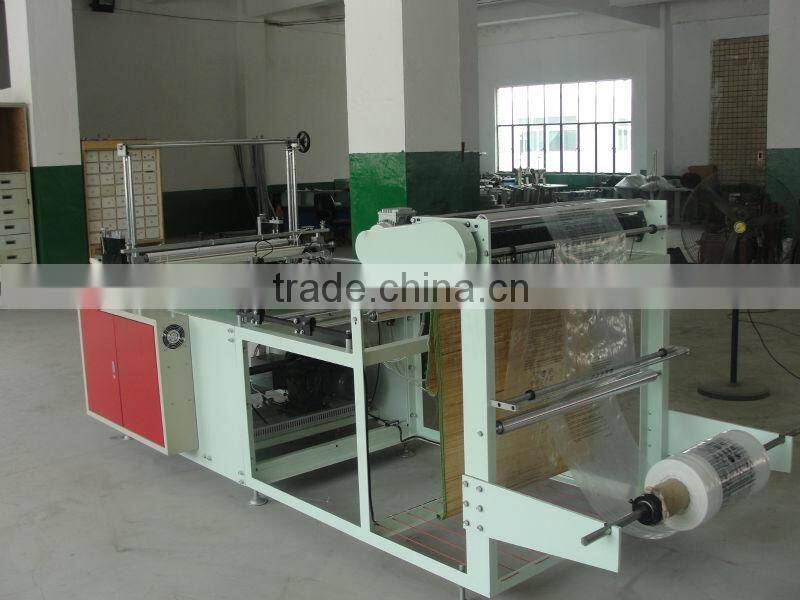

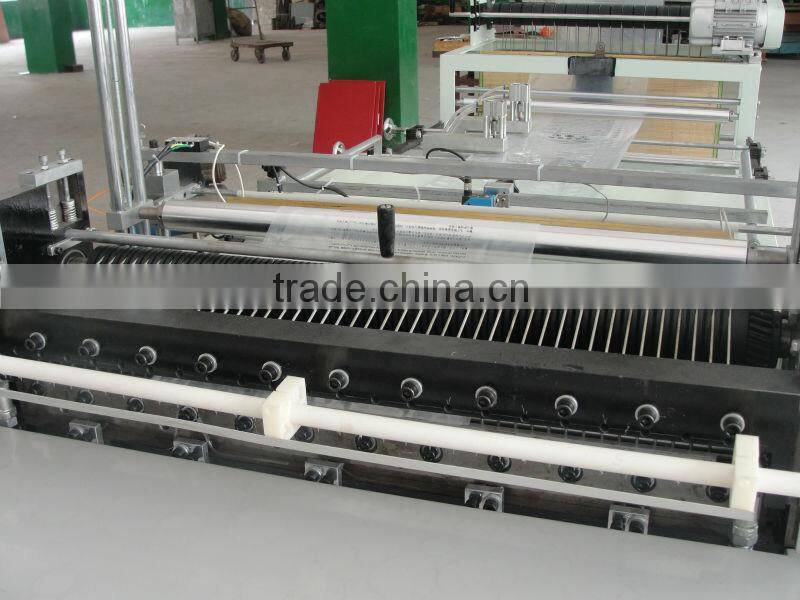

DL-D Series Hot Seal and Cool Cut Bottom Sealing Bag Making Machine photo-1

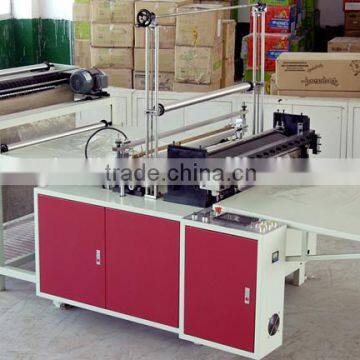

DL-D Series Hot Seal and Cool Cut Bottom Sealing Bag Making Machine photo-2

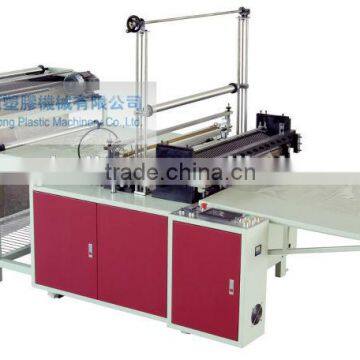

DL-D Series Hot Seal and Cool Cut Bottom Sealing Bag Making Machine photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Film
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Fujian, China
Brand Name DONGLONG
Model Number DL-D500 DL-D850 DL-D1100
Power(W) 3.1kw
Dimension(L*W*H) 3.0x1.76x1.5m
Weight 2000kg
Certification CE,SGS
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Features:

1,This plastic film blowing machine is designed to produce heat sealing&cold cutting bags,such as flat-end bags ,it can also make t-shirt bags(optinal).

2,The whole machine is control led bby servo motor,thus the material will be conveyed smoothly and quickly.

3,With Japan brand 'panasonic' electric eyes,it has advantage of great quality.sensitive to colors,catching colors accurately.

The whole machine adopts computer control system to set the bag length,production speed ,thus can reduce the waste and save cost; feeding material counting and sending out material automatically;the machine will aralm automatically when the machine is out of work,therefore it will be safer to operiate.





Main technical parameters:

Model

DL-D500

DL-D850

DL-D1100

Max. Bag Width

450mm

800mm

1000mm

Max.Bag Length

1300mm

1300mm

1300mm

Bag Thickness

0.02-0.20mm

0.02-0.20mm

0.02-0.20mm

Speed

30-150(pic/min)

30-150(pic/min)

30-120(pic/min)

Total Power

2.2kw

2.7kw

3.1kw

Size(L x W x H)

3.0x1.16x1.5m

3.0x1.46x1.5m

3.0x1.76x1.5m

Weight

~1100kg

~1550kg

~2000kg

Ps:Correct specifications depend on the actual model all specifications are subject to change without prior notice.
