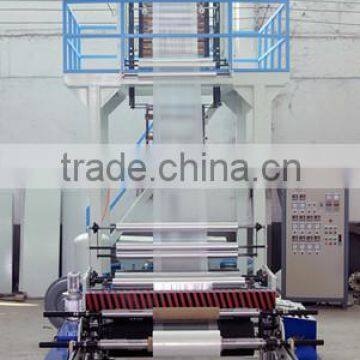

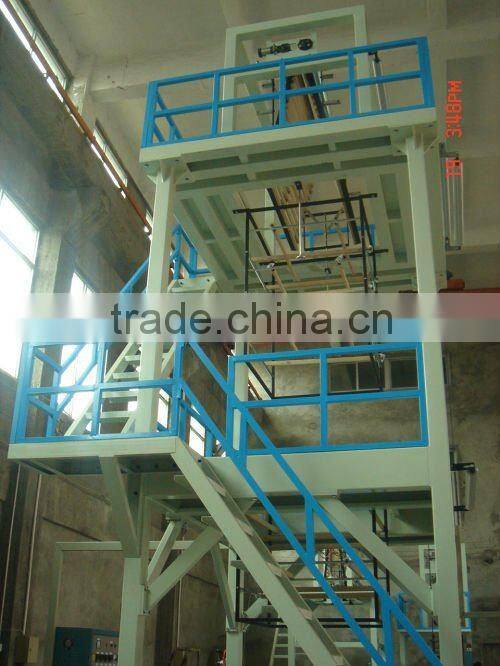

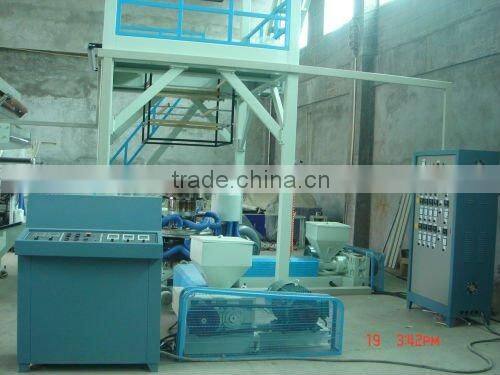

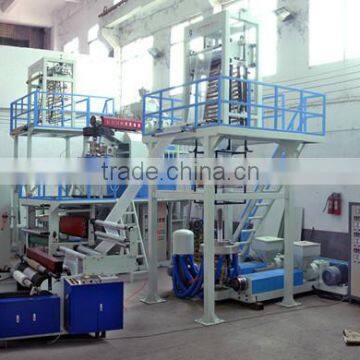

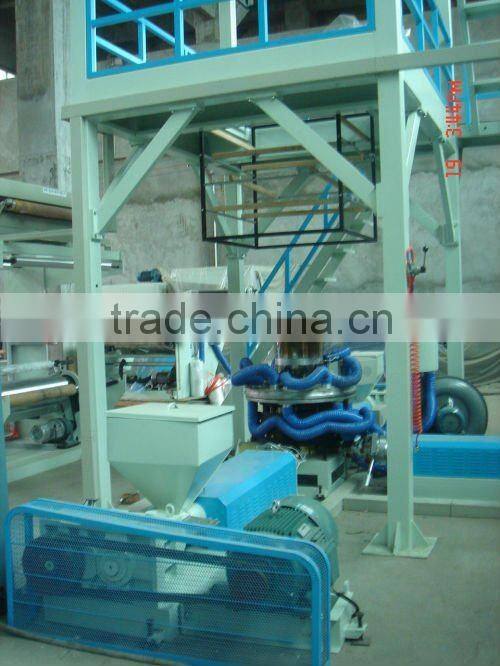

Help CenterThree Layers Co-extrusion Plastic PE Film Blowing Machine
Related Products
-
Popular Three-Layer Film Blowing MachineNegotiableMOQ: 1 Set -
3 Layer Hdpe Film Extruder Film Blowing Machine From Donglong Plastic MachineryUS$ 2,000 - 50,000MOQ: 1 Set
-
3 Layers Film Blowing Machine(ABC)US$ 2,000 - 50,000MOQ: 1 Set
-
3 Layers Plastic Film Squeezing MachineUS$ 2,000 - 50,000MOQ: 1 Set
-
3G-SJ Series Three-layer Co-extrusion Film Blowing Machine (ABC)NegotiableMOQ: 1 Set
Machine features:
The pe film extruder machine employes many technologies such as rotary traction, double wind gap & wind ring, air driving, speed regulation by frequency variation and fully automatic double tight friction winder.
This kind of film extruder machine is applicable to LLDPE, MLLDPE, LDPE, EVA, PA and adhesive etc to machine features with clear layering, good plasticization, excellent physic and mechanic performance, high output and low energy consumption.
Main Technical Parameters:
|
Model No.
|
3G-SJ45/50/45-FMJ1300 |
3G-SJ55/65/55-FMJ1500 |
3G-SJ65/75/65-FMJ1700 |
Layer Number |
3 layers |
||
Max. Film Width |
1200mm |
1400mm |
1600mm |
Film Thickness |
0 .025 ~ 0.35mm |
||
Max. Output |
100kg/h |
160kg/h |
200kg/h |
Raw Material |
LDPE, LLDPE, HDPE, EVA |
||
Screw Diameter |
2*Φ45mm/1*Φ50mm |
2 *Φ55mm/1*Φ65mm |
2 *Φ65mm/1*Φ75mm |
Screw L/D |
30:1 |
||
Die Diameter |
Φ250, Φ300mm |
Φ300, Φ350mm |
Φ350, Φ400mm |
Whole Power of the Machine |
~ 110kw |
~ 152kw |
~ 190kw |
Shape Size(L*W*H) |
10.0* 4.5 * 6.5m |
10.0 * 5.0 * 7.5m |
11.5 * 5.5 *8.5m |
Weight |
~ 5.5t |
~ 7.0t |
~ 8.5t |
Send Inquiry to This Supplier
