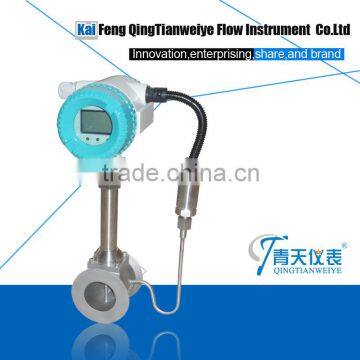

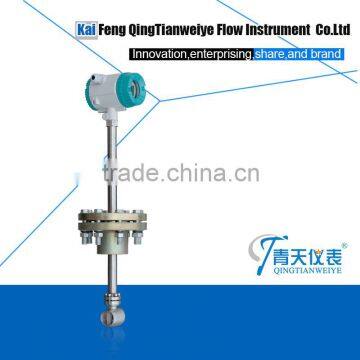

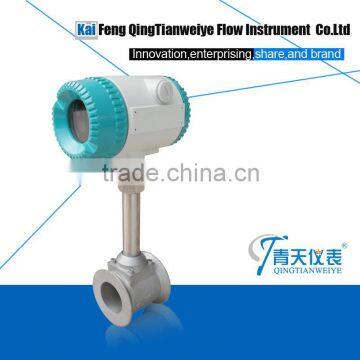

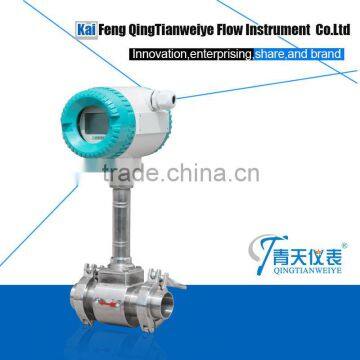

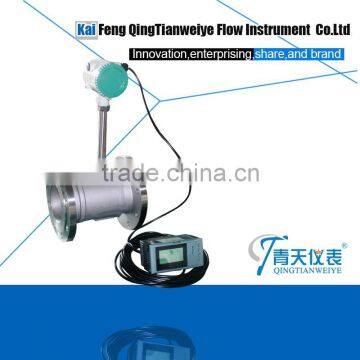

Help CenterVortex Flow Totalizer
US$ 299 - 4,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
qtyb
Model Number:
LUCB-type 2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Accuracy Coriolis Mass Flow Meter for Crude OilUS$ 499 - 499MOQ: 1 Set -
QT Super Coriolis Mass Flow MeterUS$ 499 - 499MOQ: 1 Set
-
Qingtian High Accuracy Coriolis Mass Flow MeterUS$ 499 - 499MOQ: 1 Set
-
High Quality Coriolis Mass Flow Meter ManufacturerUS$ 499 - 499MOQ: 1 Set
-
Kaifeng Coriolis Mass Flow Meter ManufacturerUS$ 499 - 499MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
qtyb
Model Number
LUCB-type 2
Application
Vortex flow meter is used to meausre kinds of steam, gas, air and low viscosity liquid.
Introduction
According to Carmen and Strouhal relevant spiral produce and on the theory of the flow relationship. As shown in picture, In the meter body vertical insert a triangular prism root namely the happening of the body, when eddies of medium flow through the table body, in triangular prism behind the alternate produce in opposite directions regular karman swirl,its spiral separation and the flow of the medium frequency F speed by sensing head is proportional to the V detected the number of spiral,can measure the flow velocity,again according tp the table body mouth.
Features
- Flange&body: integrally forged pieces, it will avoid break down into pieces. 100% SS304 material,we can provide material report.
- Circuit Board: Digital circuit board,anti most of the supplier use analog circuit board,digital circuit board enjoy the advantages of anti-vibration and anti-interference.
- Flow converter: Distinctive modular design, amateurs can operate, disassemble and assemble easily, it will avoid accident risks.
- Welding: adopt the advanced fish scale technology,which makes the welding seam looks nice and smooth.
- Japan OVAL technology with embedded-type sensor, triangular prism will not fall off, we already apply for patent.
- Our medium temperature sensor can measure highest temperature around 350℃,normal it is -40~250℃
| <p >Nominal diameter DN(mm) |
<p >Liquid(t=20℃ ρo=1000Kg/m3) | <p >Gas(t=20℃ 101325 Pa Air) | ||
|---|---|---|---|---|
| <p >Standard Range | <p >Obtained Flow Range | <p >Standard Range | <p >Obtained Flow Range | |
| 20 | 1~8 | 0.6~12 | 5~50 | 5~60 |
| 25 | 1.5~12 | 0.8~16 | 8~80 | 8~120 |
| 40 | 2.5~30 | 1.5~40 | 20~200 | 18~300 |
| 50 | 3~50 | 2~60 | 30~300 | 30~500 |
| 65 | 5~80 | 3~90 | 50~500 | 50~900 |
| 80 | 8~120 | 5~150 | 80~1000 | 60~1200 |
| 100 | 12~200 | 6~240 | 100~1000 | 100~2000 |
| 125 | 20~300 | 13~390 | 150~1600 | 150~3000 |
| 150 | 30~400 | 15~600 | 250~2500 | 200~4000 |
| 200 | 40~800 | 30~1200 | 400~4000 | 350~8000 |
| 250 | 80~1200 | 40~1600 | 600~6000 | 500~12000 |
| 300 | 100~1800 | 1000~10000 | 1000~10000 | 600~18000 |
