Kaifeng Coriolis Mass Flow Meter Manufacturer
US$ 499 - 499
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
QTMF
Model Number:
QTLD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/tianjin/qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dalian High Accuracy Coriolis Mass Flow MeterUS$ 499 - 499MOQ: 1 Set -
QT High Accuracy Coriolis Mass Flow MeterUS$ 499 - 499MOQ: 1 Set
-
High Accuracy Coriolis Mass Flow Meter ManufacturerUS$ 499 - 499MOQ: 1 Set
-
Kaifeng Qingtianweiye Flow Instrument Co,.LtdUS$ 0.001 - 99,999MOQ: 1 Set
-
QT Battery Powered Ultrasonic Water MeterUS$ 300 - 5,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
QTMF
Model Number
QTLD

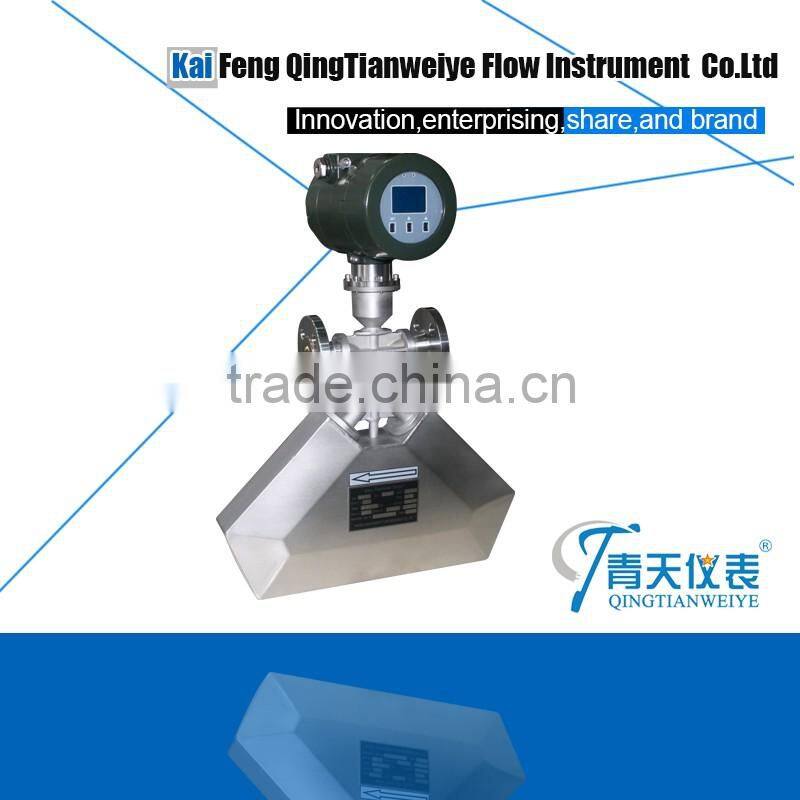

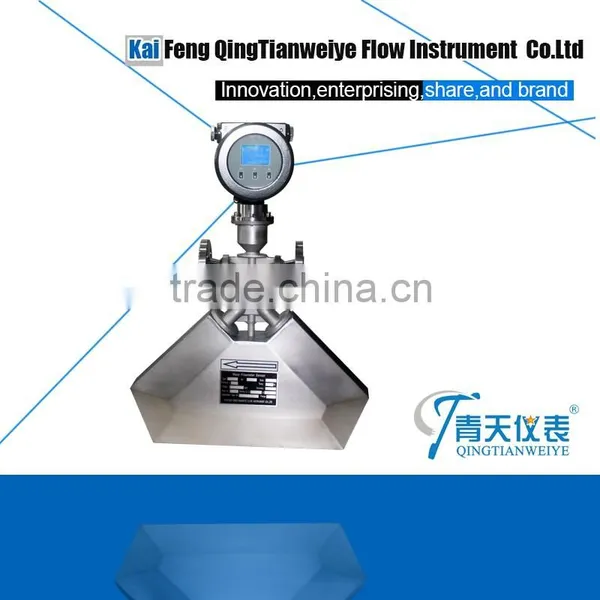

Kaifeng coriolis Mass flow meter manufacturer

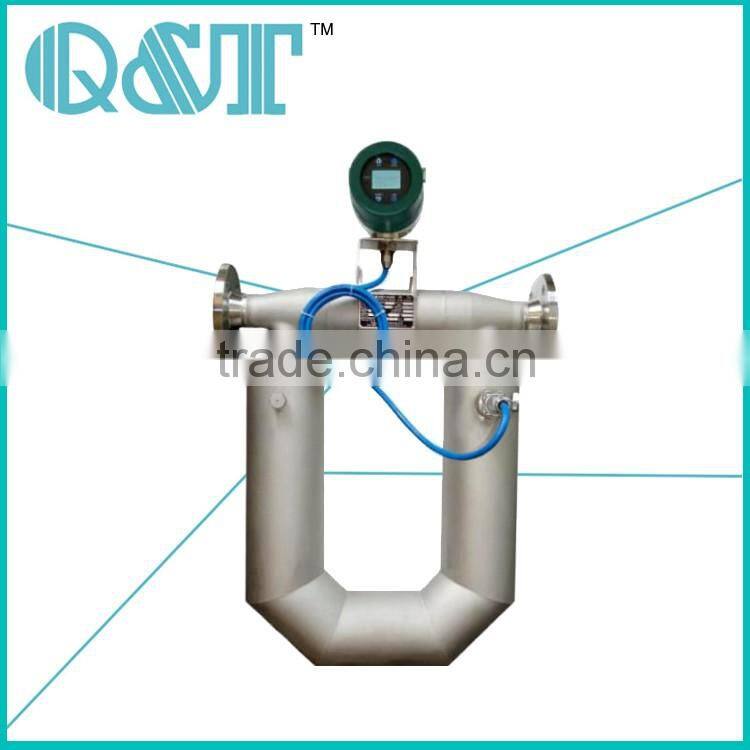

Coriolis mass flow meter (PHCMF) is a new type flow meter which is designed according to Micro Motion and Coriolis principle.This kind of new flow meter can measure the fluid directly in a sealed pipeline. It consists of two sections: Sensor and Signal Transmitter.
Features
- Measuring fluid flow rate directly (It is significant to the energy measurement and chemical reaction during the producing detection)
- High Measurement accuracy: (0.1%~0.5%)
- Wide Application (Besides general fluid measurement, other industrial medium which is hard to be measured by general flow meters also can be measured, such as Non-Newtonian fluid and Slurries etc.)
- Low Installation Requirement: (there is no requirement for straight pipe upstream or downstream) Reliability, low maintenance rate.
Application
The PHCMF mass flow meter can be used in the following fields to meet the requirements of ingredient, mixing processes and commercial measurement.
- Chemical: containing chemical reaction system
- Petroleum: moisture content analysis
- Lipids: including vegetable oils, animal fats and other oils
- Pharmaceutical
- Painting
- Paper making
- Textile printing and dyeing
| Display | 128x64 LCD display, Window size: 54x40mm (WxH) Φ80mm |
| Display Accuracy | 0.02% |
| Unit | Mass flow rate: g/h, kg/h, t/h, g/m, kg/m, t/m |
| Total flow: g, kg, t | |
| Volume flow rate: ml/h, l/h, m 3 /h, ml/m, l/m, m 3 /m | |
| Total volume: ml, l, m 3 | |
| Density: kg/m 3 , g/cm 3 | |
| Temperature: ℃,F, K | |
| Ambient Temperature | 0~10000Hz pulse frequency signal flow signal (open collector signal) |
| Equivalent pulse signal flow signal | |
| 4~20mA Current signal choose one signal from flow rate, density, temperature | |
| Accuracy: Pulse signal 0.02% Current signal 0.2% | |
| Communication signal: RS485, MODBUS protocol | |
| Power Supply | 18~36VDC power≤7W |
| 85~265VAC power: 10W | |
| Protection | Protection: IP67 |
| Ex-proof: Ex d [ia]ⅡCT6Gb | |
| Dimension | Φ125×180mm |
| Specification | DN (mm) | Flow range(kg/h) |
| PHCMF-006 | 6 | 0~600~720 |
| PHCMF-008 | 8 | 0~960~1200 |
| PHCMF-010 | 10 | 0~1800~2100 |
| PHCMF-015 | 15 | 0~3600~4500 |
| PHCMF-020 | 20 | 0~6000~7200 |
| PHCMF-025 | 25 | 0~9600~12000 |
| PHCMF-032 | 32 | 0~18000~21000 |
| PHCMF-040 | 40 | 0~30000~36000 |
| PHCMF-050 | 50 | 0~48000~60000 |
| PHCMF-080 | 80 | 0~150000~180000 |
| PHCMF-100 | 100 | 0~240000~280000 |
| PHCMF-150 | 150 | 0~480000~600000 |
| PHCMF-200 | 200 | 0~900000~1200000 |
