Specifications

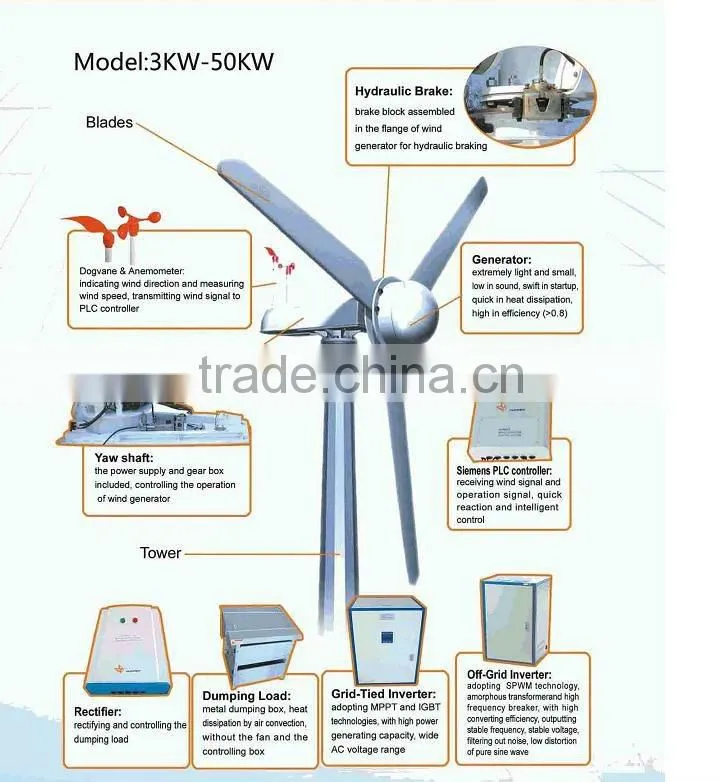

30kw vertical wind mill for power plant1..Smart yaw shaft
2..PLC controller system
3.7 patents
4.SKF bearings

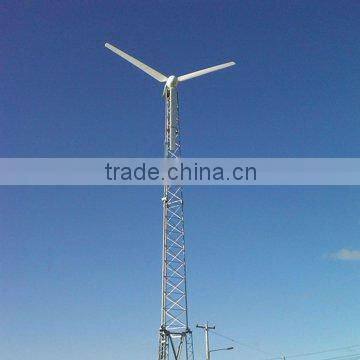

popular 30kw Horizontal wind mill for power plant
Application of 30KW home wind power generator
It can drive air condition ( ≤30 horsepower), 10kw water pump or other resistive appliances (≤30KW).
Well used in:
Housing and factory and farm
Telecommunication Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
shipping
Smart Control
H10.0-30KW home wind power generator is controlled by a comprehensive smart system.
This smart system is able to automatically seek wind direction and constantly monitor :generator
working status,rotation speed,generator temperature ,wind speed and direction etc .All data will
be transmitted to control center .
When abnormal situation takes place ,our control center will instruct wind power generator to deflect from wind direction .After problem is released wind turbinewill turn to face the
wind direction again and resume generation .
H10.0-30KW home wind power generator, both off grid and grid tied are available.
Main technical parameter
| Rated power (W) | 30000 |
| Maximum output power (W) | 45000 |
| Charging voltage (V) | DC 360 |
| Blade quantity | 3 |
| Rotor blade material | GRP |
| Rotor blade diameter (ft.) | 33 (10.0m) |
| Start-up wind speed (mph) | 6 (2.5m/s) |
| Rated wind speed (mph) | 25 (11.0m/s) |
| Rated rotating rate (r/min) | 160 |
| Wind energy utilizing ratio (Cp) | 0.42 |
| Generator output | Frequency conversion AC |
| Rated charging current (A) | 83 |
| The maximum charging current (in a short time ) (A) | 125 |
| Output AC frequency (Hz) | 0~400 |
| Generator efficiency | >0.92 |
| Free standing tower diameter (in.) | Φ47.2*Ø18.7 (Ø1200*Φ475mm) |
| Tower height (ft.) | 59 (18m) |
| The weight of generator (lb) | 1764 (800kg) |
| Suggested Battery (Ah) | 600/1000 |
