Specifications
30kw Horizontal Axis wind turbine systemCompetitive price

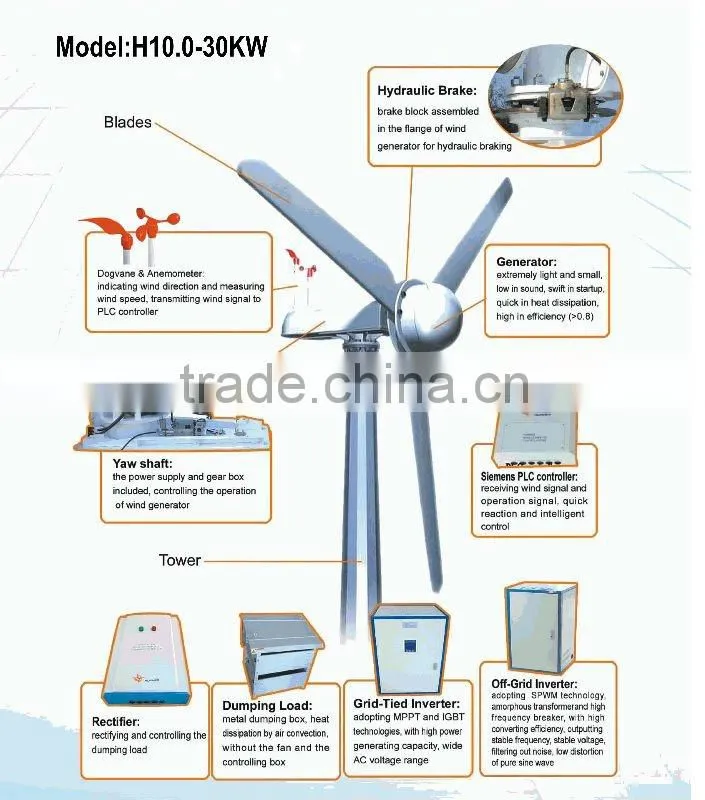

Electronic yawing,electromagnetic,
mechanical brake&dump load

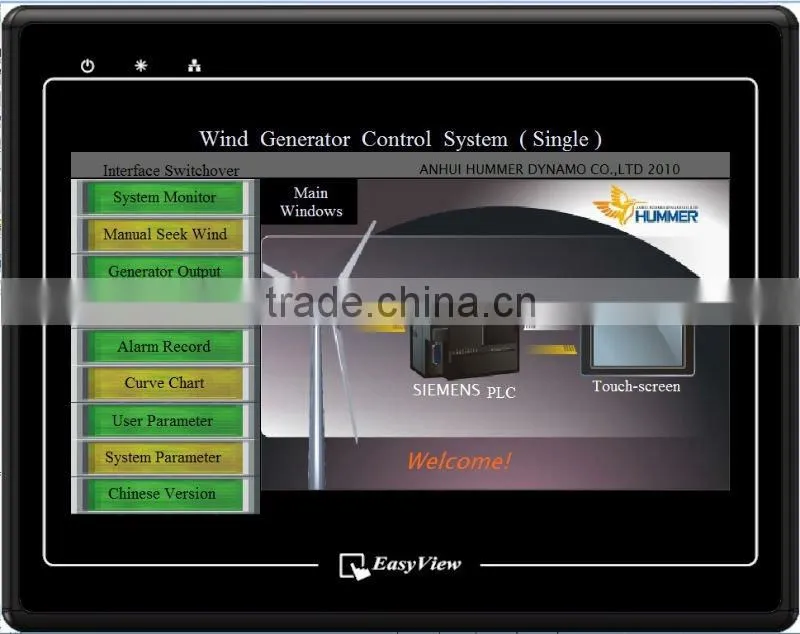

Hummer H10.0-30000W wind turbine generators is controlled by a comprehensive smart system .
Through our years of monitoring on wind turbine operation ,we successfully develop an automatic control system for small and medium scaled wind turbines.
This smart system is able to automatically seek wind direction and constantly monitor :generator working status,rotation speed,generator temperature ,wind speed and direction etc .All data will be transmitted to control center .
When abnormal situation takes place ,our control center will instruct wind turbine to deflect from wind direction .After problem is released wind turbinewill turn to face the wind direction again and resume generation .
Hummer H10.0-30000W wind generators, both off grid and grid tied are available.
Application ofModel Hummer H10.0-30000W windmill generator
It can drive air-condition ( ≤30 horsepower), 10kw water pump or other resistive appliances (≤30KW).
Well used in:
Housing and factory and farm
Telecommunication Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
shipping
Main technical parameter of Hummer H10.0-30000W wind turbines
| Rated power(W) | 30000 |
| Maximum output power(W) | 45000 |
| Charging voltage (V) | DC 240 |
| Blade quantity | 3 |
| Rotor blade material | GRP |
| Rotor blade diameter(m) | 10.0 |
| Start-up wind speed (m/s) | 2.5 |
| Rated wind speed (m/s) | 11.0 |
| Rated rotating rate (r/min) | 160 |
| Wind energy utilizing ratio (Cp) | 0.42 |
| Generator output |
Single-phase
frequency conversion AC |
| Rated charging current (A) | 125 |
| The maximum charging current (in a short time )(A) | 190 |
| Output AC frequency (Hz) | 0~400 |
| Generator efficiency | >0.92 |
| Free standing tower diameter(mm) | 1200*840 |
| Tower height(m) | 18 |
| The weight of generator(kg) | 680 |
| Suggested Battery | 600/1000Ah |
If you want to know more about the 30KW wind turbine system , pls do not hesitate to coantct with us .
