Specifications
2kw wind magnet generator-rated power 2kw
-application:domestic farm
-permanent magnet generator
-small in size with patent

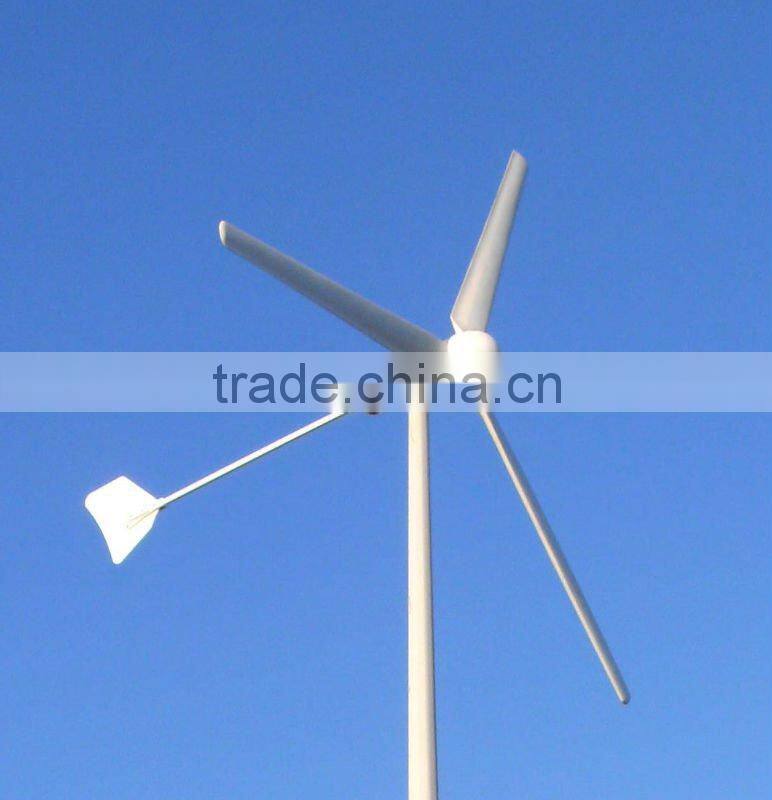

2kw wind magnet generator
Well used in:
Housing and factory and farm
Telecommunication Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
shipping
rated power |
2000w |
max power |
3200w |
battery bank voltage |
120v |
blade quantity and material |
3 pieces of reinforced fiber glass |
start up wind speed |
3m/s |
rated wind speed |
9m/s |
rated rotating speed |
450rpm |
wind energy utilizing ratio |
0.45 |
generaor output |
single phase frequency conversion AC |
output AC frequency |
0--370 |
rated charging current |
15A |
max charging current in a short time |
28A |
generator efficiency |
above 0.8 |
tower specification |
diameter 118mm plus 5 segments each 2 meters |
suggested battery |
200AH/150AH |

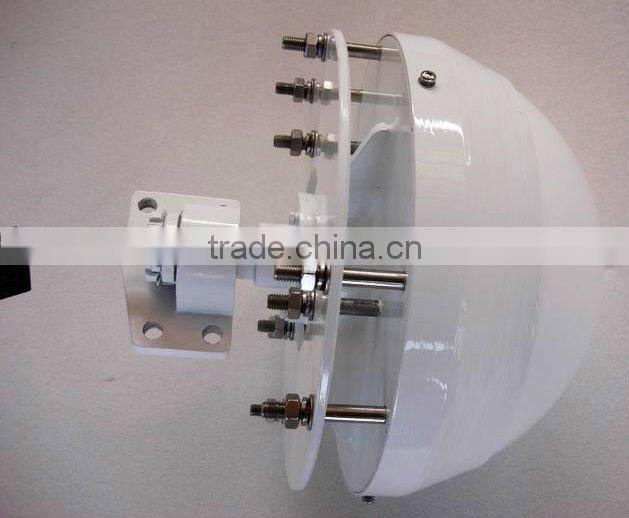

1. generator located inside nose cone to radiate heat easily, with generator itself extremely light and small, low in noise.

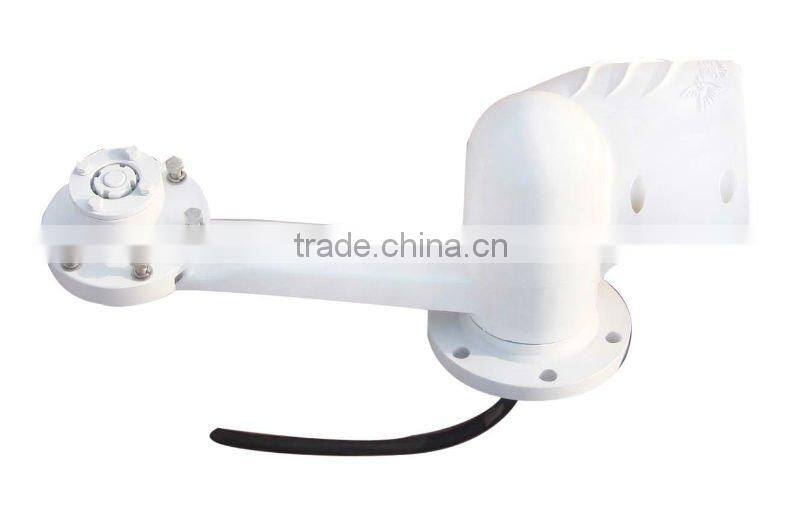

2. yaw shaft with the slip ring to ensure the rotation at 360 circulation.
3. tail ple and tial wing connecting with the body of wind turbine through SKF ball bearing, more endurable and strong.

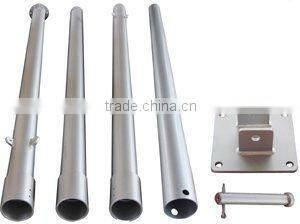

4. tower made of galvanised steel anti acid proof and salt proof.

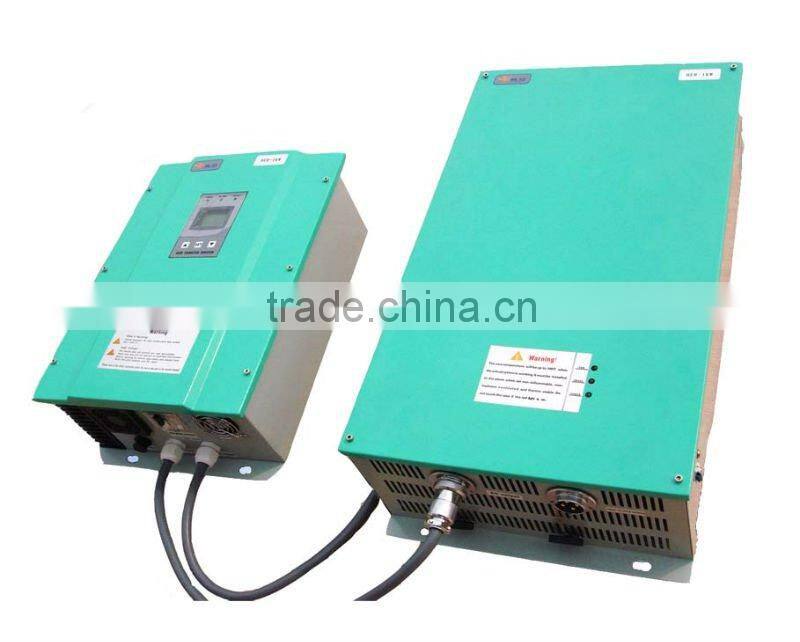

5. on-grid inverter

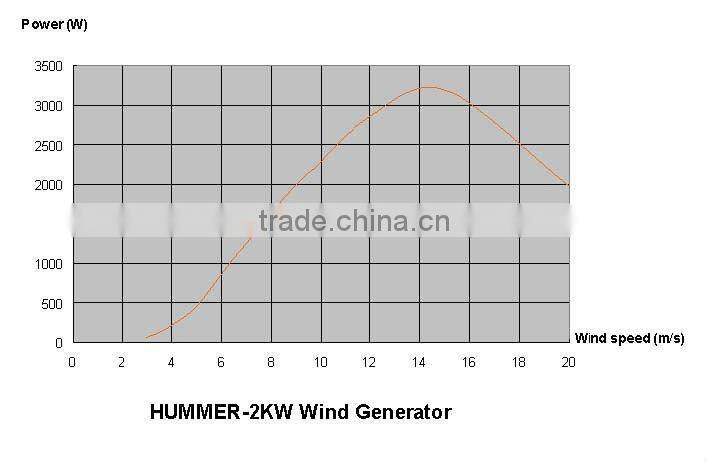

power curve
