Help Center20kW Wind Turbine Power Generator for Utility Grid
Related Products
-
Offshore Installed Wind Turbine---Hummer 3KWUS$ 1,500 - 5,000MOQ: 1 Set -
New Wind Energy Magnet Generator 100kW Alternator Wind PowerUS$ 111,750 - 120,000MOQ: 1 Set
-
Horizontal Axis Wind Turbine Generator 50kW AlternatorUS$ 46,950 - 48,600MOQ: 1 Set
-
50kW Wind Generator Hydraulic for Farm Power PlantUS$ 48,600 - 49,999MOQ: 1 Set
-
20kW Small Wind Turbine Generator for Power PlantUS$ 16,250 - 16,800MOQ: 1 Set
Specifications
1. safety as a priority.2. easy to operate.
3. lower speed.
4. higher efficiency.
5. long lifespan.
Main technical parameter of wind turbine 20kW power:
| Configuration | 3 Blades, Horizontal axis, Upwind |
| Rotor Diameter | 9.0 m / 29.5 ft |
| Swept Area | 63.62 m2 / 684.7 ft2 |
| Direction of Rotation | Clockwise looking upwind |
| Blade Material | Fiberglass reinforced composite |
| Rated Power | 20 kW @ 11.5 m/s |
| Maximum Output Power | 28kW |
| System Output Voltage | 220/380 Vac |
| Cut-in Wind Speed | 3 m/s / 6.7 mph |
| Rated rotating rate | 180 r/min |
| Working Wind Speed | 3-25 m/s / 6.7-82.6 mph |
| Survival Wind Speed | 50 m/s / 164 mph |
| Alternator | Permanent magnet alternator, SCF technology |
| Alternator Weight | 496 kg / 1093.5 lbs |
| Energy monitoring & User control | Siemens PLC controller with touch screen |
| Gearbox | None, Direct drive with front generator design |
| Over Speed Regulation | Auto Yawing & Hydraulic Braking |
| Shutting Down Method | Manual & Automatic electromagnetism Braking & Hydraulic Braking |
| Warranty | 2 years |
20kW wind turbine generator adopting SCF supercritical technology and two SKF bearings.Siemens PLC controller with human-oriented touch screen, which can realize real-time monitoring.Optional off grid and grid connected system, optional single phase and three phase output, and optional hydraulic braking system as well as hydraulic towers.
1. Efficient Generator of 20kW wind turbine:

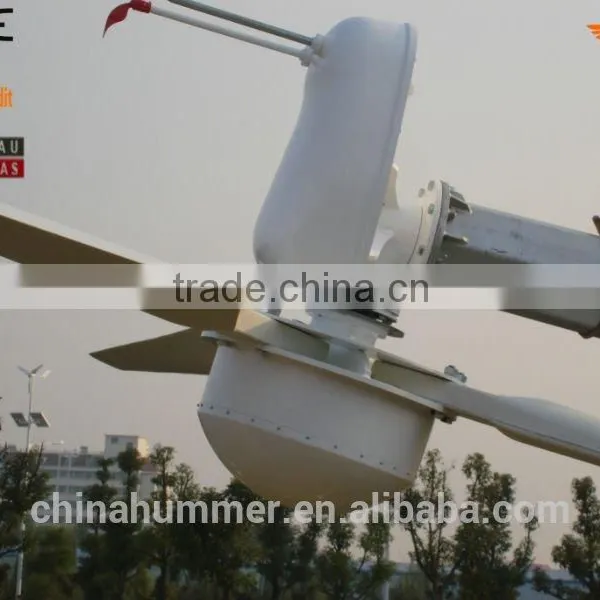

Hummer 20kW wind turbine generator is one of the most advanced generators in the world. Made of refined permanent magnetic material, special copper alloy, aviation aluminum alloy and stainless steel, it is highly efficient in power. Due to its smallness, it is able to be placed inside the nose cone to reduce air resistance and increase efficiency.
Due to its advanced technologies, refined materials and unique design, H9.0-20KW wind turbine generator's wind energy utilization factor is as high as 0.4 while generator efficiency is higher than 0.87.

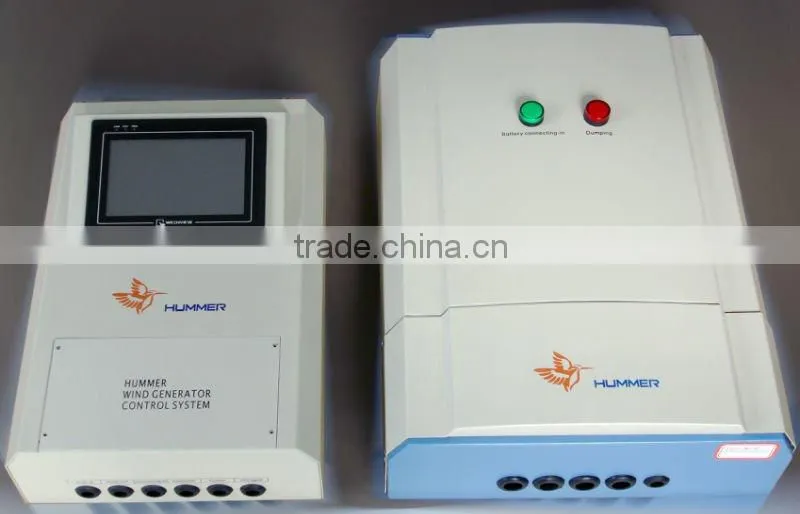

2. Smart Control of 20kW wind turbine:
H9.0-20KW wind turbine generator is controlled by a comprehensive smart system. Through our years of monitoring on wind turbine operation, we successfully develop an automatic control system for small and medium scaled wind turbines.
This smart system is able to automatically seek wind direction and constantly monitor generator working status, rotation speed, generator temperature, wind speed and direction etc. All data will be transmitted to control center.
When abnormal situation takes place, our control center will instruct wind turbine to deflect from wind direction. After problem is released wind turbine will turn to face wind direction again and resume generation.

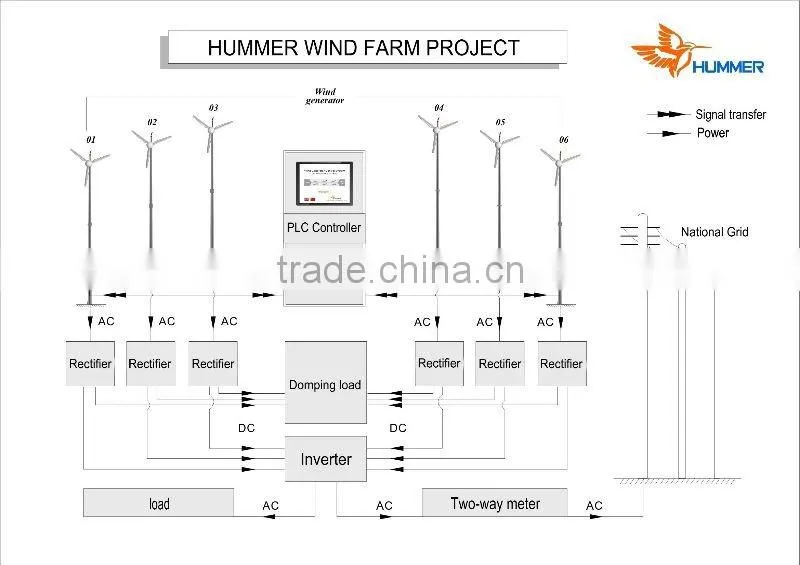

We can offer both off grid and grid-tied H9.0-20KW wind turbine power system. For more details, please contact us.
| Packing list of wind turbine 20kW power: | ||||||
| No | Parts | Package material | Dimension(m) | Volume | Total Weight(kg) | |
| (CBM) | N.W | G.W | ||||
| 1 | Generator box | plywood containers | 0.875*0.875*0.770 | 0.590 | 548 | 651 |
| 2 | Inverter box | (on-grid)0.750*0.660*1.130 | 0.560 | 98 | 145 | |
| (off-grid)0.780*0.780*1.380 | 0.840 | 154 | 193 | |||
| 3 | Blades box | 4.600*0.505*0.365 | 0.848 | 170 | 191 | |
| 4 | Yaw shaft box | 1.180*0.615*0.745 | 0.541 | 350 | 380 | |
| 5 | Control box | 0.500*0.377*0.215 | 0.041 | 8 | 13 | |
| 6 | Rectifier box | 0.645*0.465*0.225 | 0.067 | 16 | 23 | |
| 7 | Dump load box | 0.565*0.940*0.790 | 0.420 | 78 | 98 | |
| 8 | Wireless tower | bales nylon bags | 8.000*1.050*1.050 | 8.820 | 1960 | 1960 |
| TOTAL | Off-grid system | with Wireless tower | 12.167 | 3284 | 3509 | |
| On-Grid system | with Wireless tower | 11.887 | 3228 | 3461 | ||

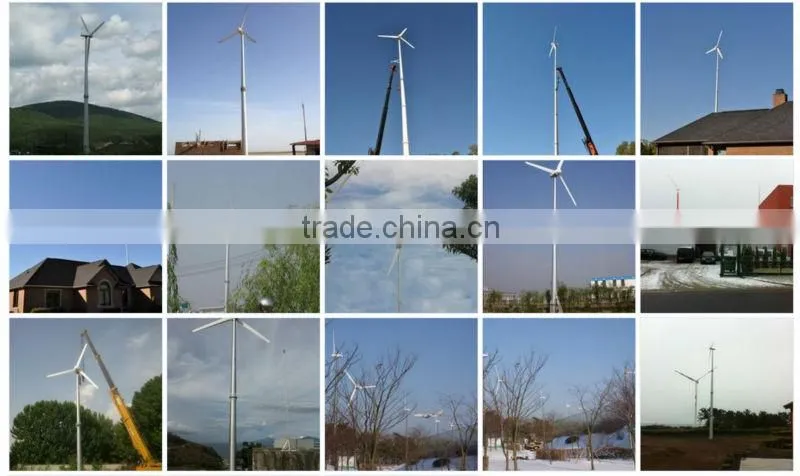

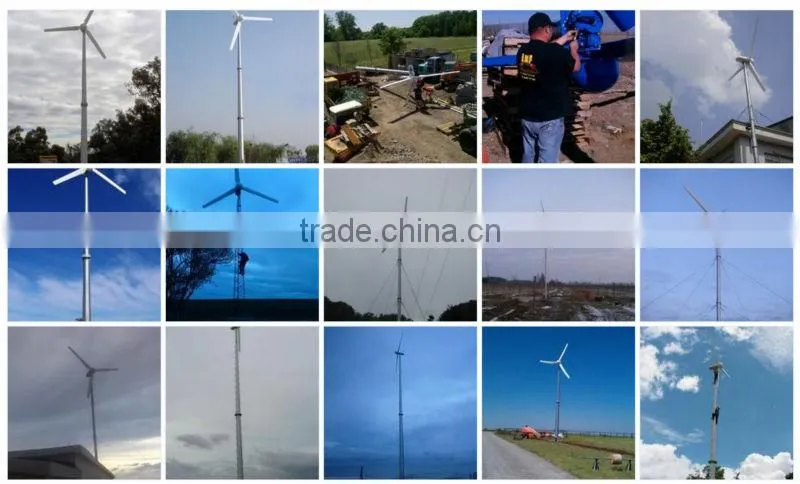

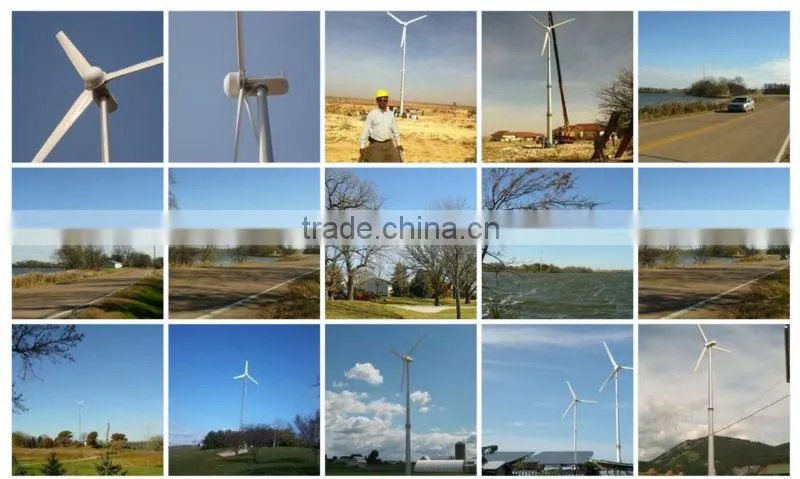

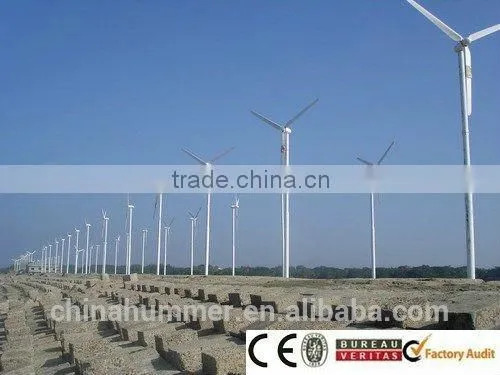

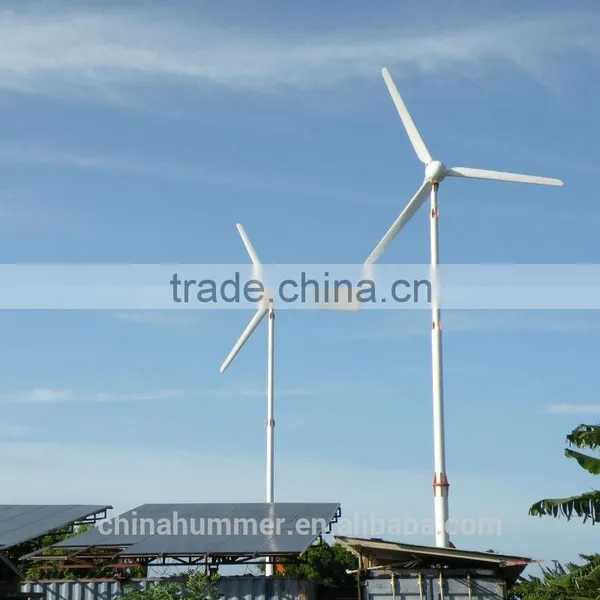

Previous Projects of wind turbine 20kW power:
