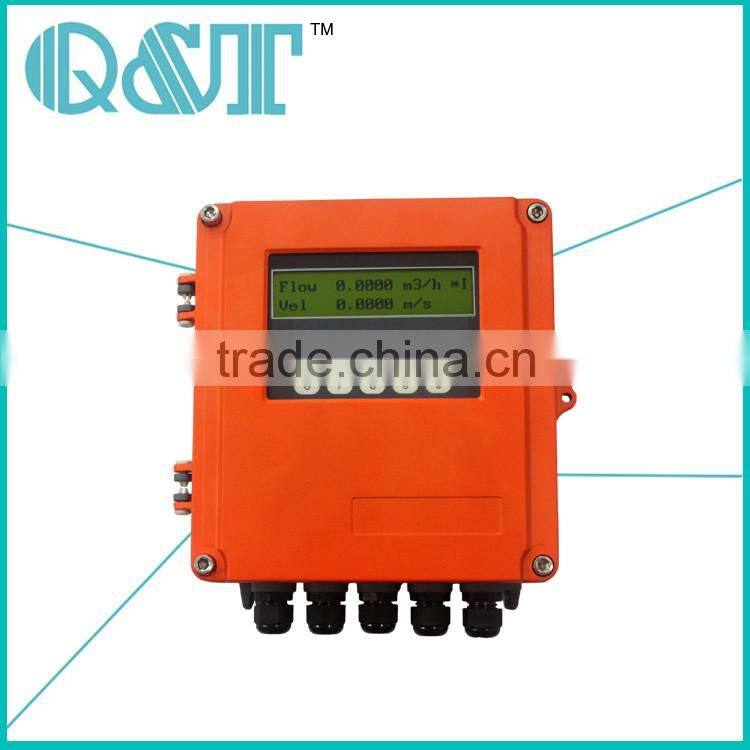

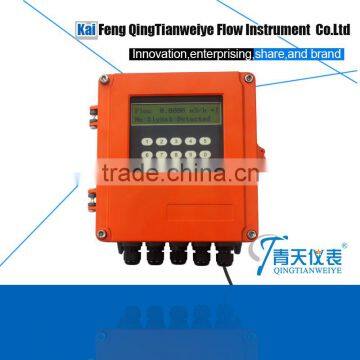

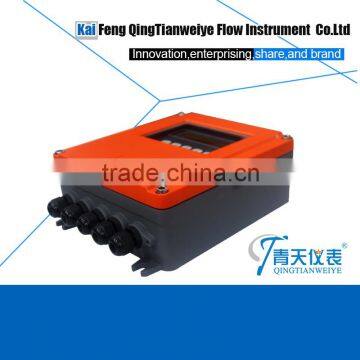

stationary ultrasonic heat BTU energy meter
Application:

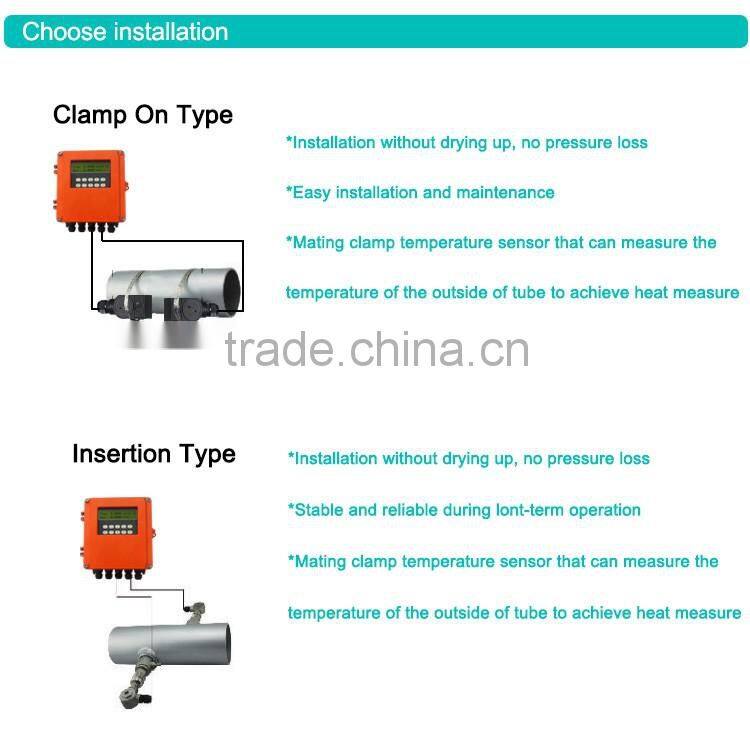

The ultrasonic flow meter is designed to measure the fluid velocity of liquid within closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non- fouling operation and easy installation.
| Accuracy | Better than 1% |
| Measurement period | 500ms |
| The maximum flow rate | 64 m/s |
| Disply | 2*10 LCD display with english totalizers for net accumulation and positive and negative accumulations |
| Body material | Aluminium alloy |
| Operation | 2*5 membrane keyboards |
| Input | Three 4-20mA Current input,accuracy 0.1%,can collect temperature, pressure,level signals etc. |
| Two way three wired PT100 | |
| Data storage | Built-in SD sard can store time ,instant flow,totle flow,signal statusand so on , via special Software send the data to computer ,and easy to Statistics and Management |
| Communication | MOBUS ,M-BUS,FUJI extension agreement ,compatible for other manufacturers's communication |
| Communication Interface | RS-232C,baud-rate :from 75 to 57600.Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. |
| Other function | Automatic memory the negative and positive and net flow 512 days ago and 128 month ago and ten years ago . |
| Can automatic memory outage and flow data before thirty times ,can also achieve the flow automatically and manually refill, all flow can be read by MODBUS | |
| Can programme ration or batch controller,Self diagnosis failure function | |
| Can via email to transmit the code to update the software |

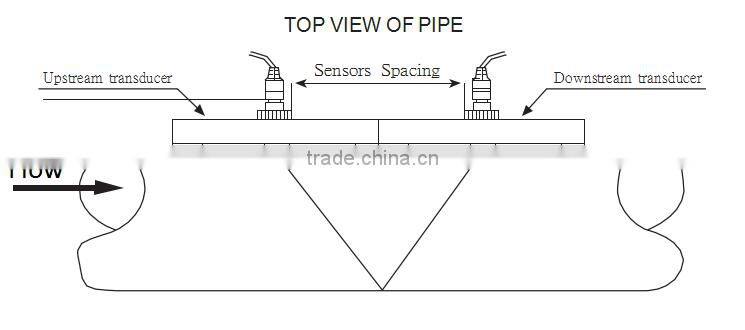

V-method Installation
V-method installation is the moswidely used mode for daily measurement with pipe inner diameters ranging from 15 millimeter to 200 millimeter. It is also called reflective mode or method.

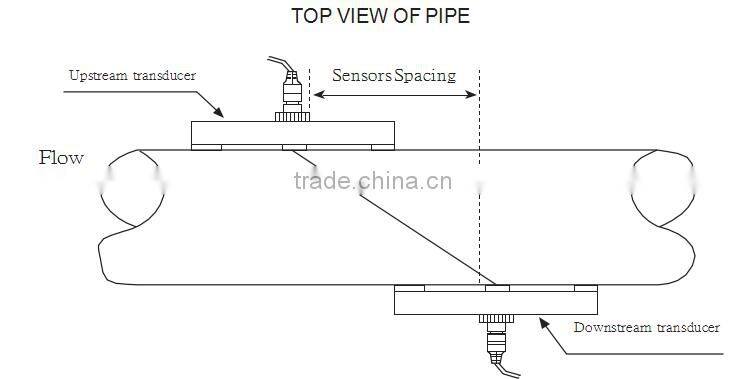

Z-method Installation
Z-method is commonly used when the pipe diameter is between 300 millimeters and 500 millimeters.
W-method Installation
W-method is usually used on plastic pipes with a diameter from 15 millimeters to 100 millimeters
