Help CenterSmall Wind Power Generator 10kW for Residential
Related Products
-
Free Energy Generator 10kW Wind Power no Fuel for MunicipalUS$ 9,050 - 9,999MOQ: 1 Set -
Generador de Viento/generador de Viento Vertical and HorizontalUS$ 9,050 - 9,999MOQ: 1 Set
-
Horizontal Axis 5kw Wind Turbine Wind Power Generator Wind Generator System With Patented Technologies With CE ISO CertificateUS$ 4,000 - 5,000MOQ: 1 Set
-
2015 the Newest Style Grid Connected 60kWmagnetic Power GeneratorUS$ 75,500 - 77,175MOQ: 1 Set
-
NEW 60kW Wind Mill Wind Turbine Wind Generator Turbina Eolica for ItalyUS$ 180,000 - 210,000MOQ: 1 Unit
Advantage of 10kW residential wind power generator :
1. SCF Supercritical generator
Hummer’s 10kW wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator’s weight and size down to 20% to 30% of the traditional one, and the production efficiency is 10% to 30% higher. This ensures that the generator functions perfectly in small wind condition.
2. SKF bearings
Hummer 10kW wind generator adopts the SKF bearings which are produced by the renowned bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. As well as enabling smooth and quiet rotation, they also perform an important function by taking on the motor's load
3. PLC control
Hummer 10kw wind generator's controlling system adopts the smart touch-screen PLC (Programmable Logic Controller) which is integrated with Siemens controlling unit. The PLC will alarm and adjust the abnormal running status of the wind turbine automatically both timely and efficiently. Siemens module offers high reliability to our PLC and its customers worldwide can testify for that.
4. Low noise
The design of the rotor blade of Hummer 10kW wind generator absorbs the highlights of the small aircraft’s airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.
5. High reliability
Hummer 10kW wind generator adopts the triple braking protection system, which are the yawing mechanism, the electromagnetic braking system and the hydraulic braking system to regulate the rotation of the wind turbine. It is easy and convenient to shut down the whole system both manually and automatically.
Structure of 10kW residential wind power generator :
Main Technical Parameter of 10kW residential wind power generator :
Rated power (W) |
10000 |
Maxi mum output power (W) |
15000 |
Battery bank voltage (Vdc) |
240 |
System output voltage (Vac) |
110/220/380 |
Start-up wind speed (m/s) |
3 |
Rated wind speed (m/s) |
10 |
Working wind speed (m/s) |
3-25 |
Survival wind speed (m/s) |
50 |
Generator type |
Permanent Magnet Alternator |
Generator weight (kg) |
287 |
Blade material/quantity |
GRP/3 |
Blade diameter (m) |
8.0 |
Speed regulation method |
Yawing+Electromagnetism braking (Optional hydraulic braking) |
Shutting down method |
Manual+Automatic |
diagram of residential wind power generator system:

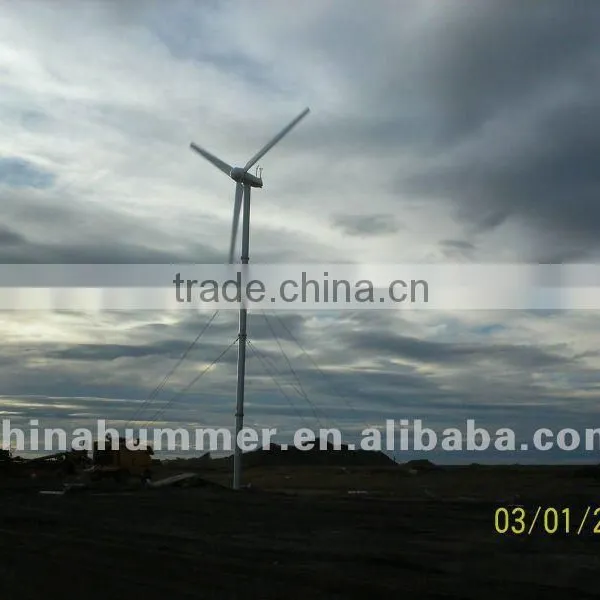

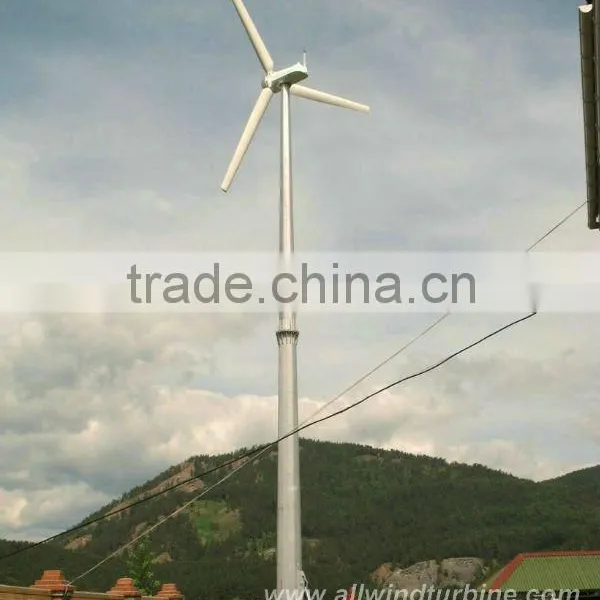

Project Case of Hummer 10kW residential wind power generator :
application of 10kW wind power generator:
Housing and factory and farm
Telecommunication Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
Shipping
Certificate of Hummer residential wind power generator :
