1. small wind dynamo generator 10kW alternator:
| Configuration | 3 Blades, Horizontal axis, Upwind | 3 Blades, Horizontal axis, Upwind | 3 Blades, Horizontal axis, Upwind |
| Rotor Diameter | 4.9 m / 16.1 ft | 6.4 m / 20.1 ft | 8.0 m / 26.2 ft |
| Swept Area | 18.86 m2 / 203.0 ft2 | 32.17 m2 / 346.3 ft2 | 50.27 m2 / 541.1 ft2 |
| Direction of Rotation | Clockwise looking upwind | Clockwise looking upwind | Clockwise looking upwind |
| Blade Material | Fiberglass reinforced composite | Fiberglass reinforced composite | Fiberglass reinforced composite |
| Rated Power | 3 kW @ 10m/s / 22.4 mph | 5 kW @ 12m/s / 26.8 mph | 10 kW @ 11m/s / 24.6 mph |
| Maximum Output Power | 3.3 kW @ 20m/s / 44.7 mph | 5.6 kW @ 20m/s / 44.7 mph | 11 kW @ 20m/s / 44.7 mph |
| Battery Bank Voltage | 180 Vdc | 240 Vdc | 240 Vdc |
| System Output Voltage | 110/220 Vac | 110/220/380 Vac | 110/220/380 Vac |
| Cut-in Wind Speed | 3 m/s / 6.7 mph | 3 m/s / 6.7 mph | 3 m/s / 6.7 mph |
| Rated rotating rate | 265 r/min | 240 r/min | 200 r/min |
| Working Wind Speed | 3-25 m/s / 6.7-82.3 mph | 3-25 m/s / 6.7-82.4 mph | 3-25 m/s / 6.7-82.5 mph |
| Survival Wind Speed | 50 m/s / 164 mph | 50 m/s / 164 mph | 50 m/s / 164 mph |
| Alternator | Permanent magnet alternator, SCF technology | Permanent magnet alternator, SCF technology | Permanent magnet alternator, SCF technology |
| Alternator Weight | 72 kg / 158.7 lbs | 147 kg / 324.1 lbs | 287 kg / 632.7 lbs |
| Generator Efficiency | >0.80 | >0.80 | >0.85 |
| Wind Energy Utilizing Ratio | 0.40 Cp | 0.40 Cp | 0.40 Cp |
| Energy monitoring & User control | Siemens PLC controller with touch screen | Siemens PLC controller with touch screen | Siemens PLC controller with touch screen |
| Gearbox | None, Direct drive with front generator design | None, Direct drive with front generator design | None, Direct drive with front generator design |
| Over Speed Regulation | Auto Yawing | Auto Yawing | Auto Yawing & Hydraulic Braking |
| Shutting Down Method | Manual & Automatic electromagnetism Braking | Manual & Automatic electromagnetism Braking | Manual & Automatic electromagnetism Braking & Hydraulic Braking |
| Warranty | 2 years for generator and 1 year for other parts | 2 years for generator and 1 year for other parts |
With touch control interface, matching with Siemens PLC control module, H8.0-10kw wind dynamo generator offers users a variety of data and images displays together with the function to manual and remote control operations.
2. structure of 10kW alternator wind dynamo generator:
3. Siemens PLC controller receiving wind signal and operation signal, quick response and reaction, reliable and intelligent control.
We use dogvane and anemometer to ensure wind speed and direction and transmitting wind signal to PLC controller, then the controller will make intelligent judgment to drive the blades following with the wind direction to make full use of it. This is called auto-wind-seeking system.
Hydraulic breaking system Combines manually and automatically functions controlled by PLC controller though touch screen, hydraulic braking system makes it possible that to stop the system in very short time to protect the wind turbine system in extreme weather.
If in too strong wind such as typhoon (user set max wind speed though PLC touch screen), the PLC controller send order to yaw shaft and will drive the blade off of the wind direction to protect the system.
We can also monitor the real time power, voltage, current via the touch scream which all the data collected from hummer rectifier/dumping load controller and recorded in PLC controller.
With all the data collected, the PLC controller will auto make a real time chart in which you can see all the curves anytime, anywhere.
4. We have three solutions for 10KW wind dynamo generator:

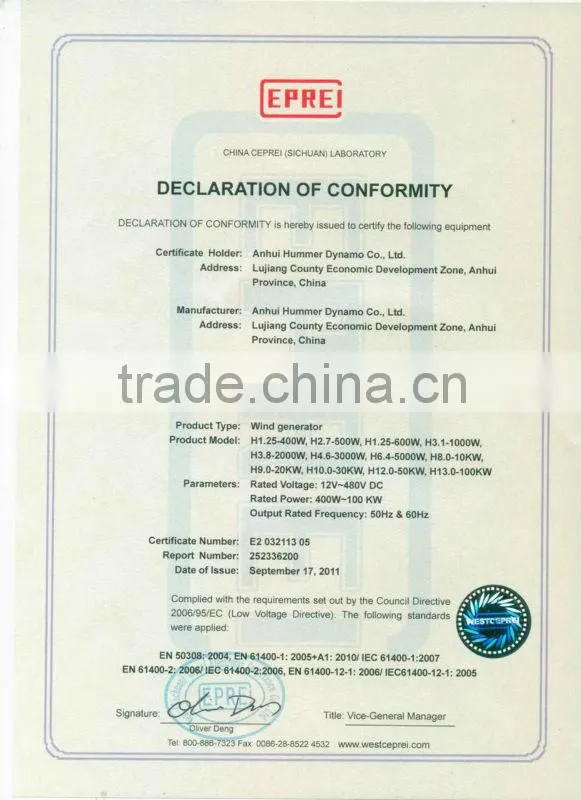

7. Certificate
