Help CenterWind Turbine Generator 20kW Tunnel for Grid Connection
Related Products
-
High Output 50kW/60kW/100kW Wind Turbine Generator Electric Wind Mill for SaleUS$ 80,000 - 130,000MOQ: 1 Set -
150kW 200kW Power Plant by Wind Generator SetUS$ 46,950 - 49,999MOQ: 1 Set
-
China Hummer 3KW Small-scale Wind Power Turbine/wind Power Generator 3KW for Home /farm/base StationUS$ 5,000 - 9,000MOQ: 1 Set
-
Hybrid Power Engine Wind Solar Generator 20kW SystemUS$ 16,250 - 16,800MOQ: 1 Set
-
100kW Wind Turbine Tower for Turnkey Power PlantUS$ 111,750 - 120,000MOQ: 1 Set
Technical parameter of horizontal wind tunnel 20kW:
| Rated power (W) | 20000 |
| Maximum output power (W) | 28000 |
| Battery bank voltage (Vdc) | 240 |
| System output voltage (Vac) | 220/380 |
| Start-up wind speed (m/s) | 3 |
| Rated wind speed (m/s) | 11.5 |
| Working wind speed (m/s) | 3-25 |
| Survival wind speed (m/s) | 50 |
| Generator type | Permanent Magnet Alternator |
| Generator weight (kg) | 496 |
| Blade material/quantity | GRP/3 |
| Blade diameter (m) | 9.0 |
| Speed regulation method | Yawing+Electromagnetism braking(Optional hydraulic braking) |
| Shutting down method | Manual+Automatic |
Features of vertical wind tunnel 20kW:

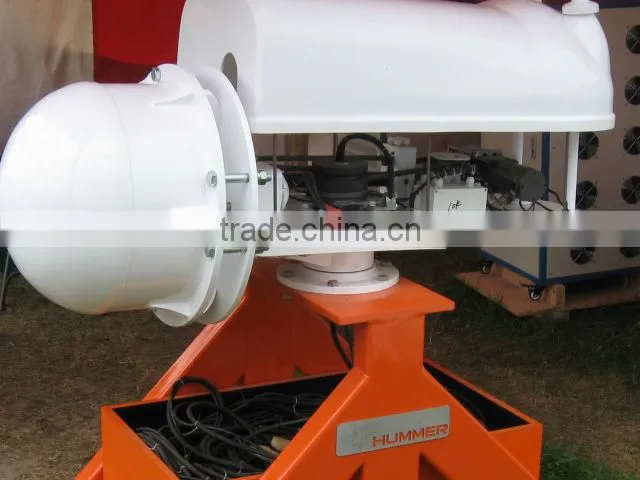

1. Efficient Generator of wind tunnel 20kW:
Hummer 20kW wind tunnel is one of the most advanced generators in the world. Made of refined permanent magnetic material, special copper alloy, aviation aluminum alloy and stainless steel, it is highly efficient in power. Due to its smallness, it is able to be placed inside the nose cone to reduce air resistance and increase efficiency.
Smart Control of wind tunnel 20kW:
H9.0-20KW wind tunnel is controlled by a comprehensive smart system. Through our years of monitoring on wind turbine operation, we successfully develop an automatic control system for small and medium scaled wind turbines.
This smart system is able to automatically seek wind direction and constantly monitor generator working status, rotation speed, generator temperature, wind speed and direction etc. All data will be transmitted to control center.
When abnormal situation takes place, our control center will instruct wind turbine to deflect from wind direction. After problem is released wind turbine will turn to face wind direction again and resume generation.
Diagram of 20kW wind tunnel power system:
