Home > Products > Tungsten carbide dies > Carbide Drawing Dies Nibs for Drawing Nonferrous Wire and Rods
Carbide Drawing Dies Nibs for Drawing Nonferrous Wire and Rods
- any port in china
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Jinboshi | |
| Model Number | S11 | Shaping Mode | Punching Mold | |
| Product Material | Other, carbide | Product | Other, making dies |
Product Description
we can produce carbide drawing dies with differents size and specification for you.

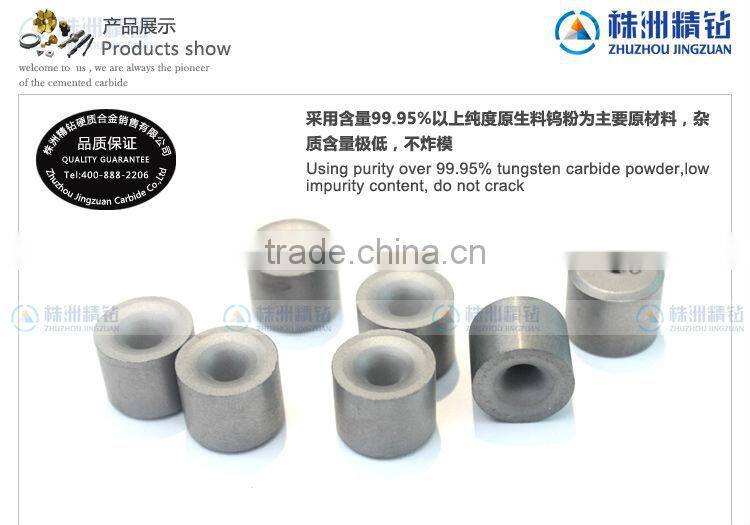

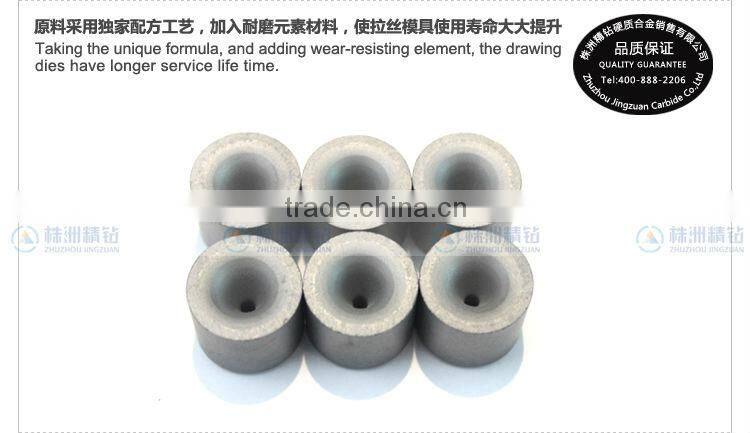

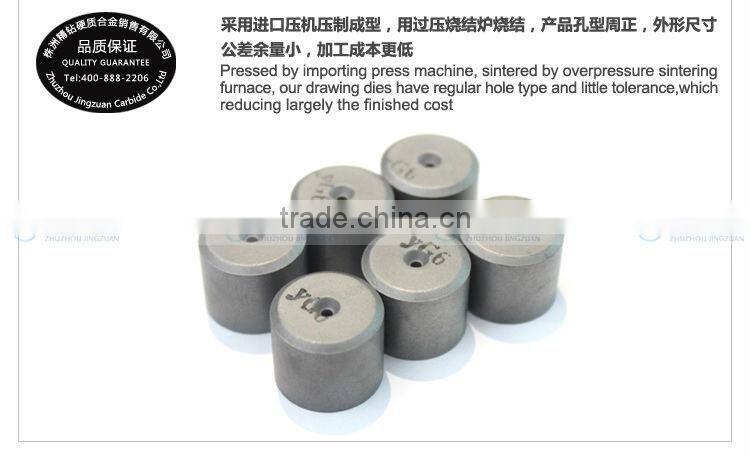

carbide drawing dies nibs for drawing nonferrous wire and rods
[Detail]
1. Name: wire drawing dies blank, drawing dies nibs.
2. Material: tungsten carbide. TC. cemented carbide
3. Type: S11
[Application]
Type S11 are drawing dies with large reducing angles for ferrous wires or rods.
[ Grade]
Grade | Equal to ISO Category Number | Performance | ||
Density | Bend Strength | Hardness | ||
G/Cm3 | N/mm2 | HRA | ||
YG3 | K01 | 14.9-15.3 | 1180 | ≥90.5 |
YG3X | K01 | 15.1-15.4 | ≥1300 | ≥91.5 |
YG6X | K10 | 14.8-15.1 | ≥1560 | ≥91.0 |
YG6A | K10 | 14.7-15.1 | ≥1580 | ≥91.0 |
YG6 | K20 | 14.7-15.1 | ≥1670 | ≥89.5 |
YG8 | K20-K30 | 14.6-14.9 | ≥1840 | ≥89 |

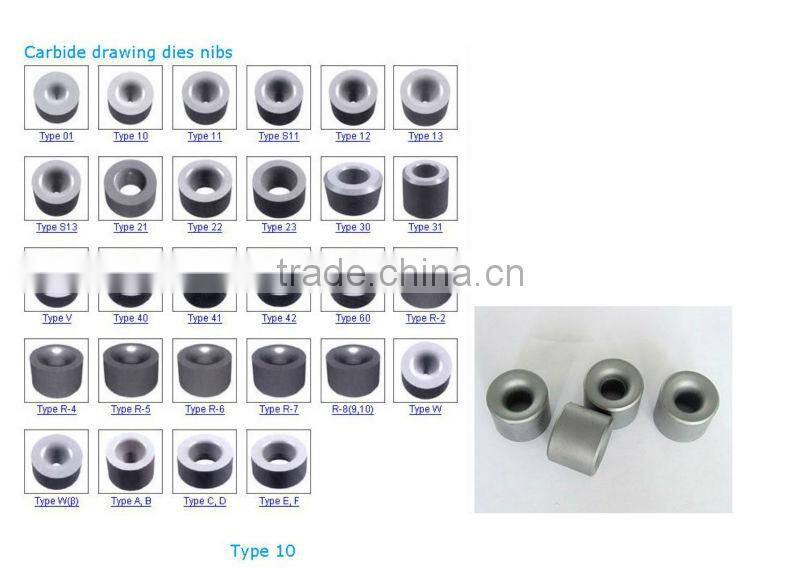

defferents type of wire drawing dies blanks:
Type | Dimensions (mm) | |||||
D | d | H | α | β | γ | |
01 | 6~8 | 0.2 | 4~6 | 10° | 40° | 60° |
10 | 6~8 | 0.4~0.8 | 4~6 | 40° | - | |
11 | 8~22 | 0.4~5.7 | 6~20 | 10°~40° | 40° | |
12 | 8~26 | 0.4~8.0 | 6~16 | 16° | 40° | |
13 | 30~140 | 3.7~84 | 21~50 | 14°~20° | - | |
for more infornation about tungsten carbide wire drawing dies blank or finish dies, please contact:
Sales: Ms.Bigel Wu
Skype: haocarbide
Tel: 86 731 22031856
Mob: 86 15273315755
Email: bigel(at)
