Specifications
1KW wind generator1.3.0m/s low start-up wind speed
2.lower noise with SKF
3.CE ,ISO9001
4.hot sale ,cheap price
Trust the strength of corporation brand---It is your best choise!
1.Product Features
1.SCF (Supercritical Generator Technology) generator technology as core, Features are extremely light in weight ,smaller in size, fasting, stable with higher power efficiency.
2.Adopt 2 SKF bearings from the biggest manufacturer in the world, which have a 15 years life span with free maintenance.
3.Smart intelligent yas shaft system has designed with sensor to detect speed,Rpm,angle ,tempreture of generator, speed,direction of wind etc.
4.One international patents of SCF tech, Six National patents and ensure the perfect performance.
2.Main technical datas and curve
Rated power(W) |
1000 |
Maximum output power(W) |
2000 |
Charging voltage(V) |
DC 60V |
Blade quantity |
3 |
Rotor blade material |
GRP |
Rotor blade diameter(m) |
3.1 |
Start-up wind speed (m/s) |
3.0 |
Rated wind speed (m/s) |
9.0 |
Rated rotating rate (r/min) |
500 |
Wind energy utilizing ratio (Cp) |
0.45 |
Generator output |
single-phase frequency conversion AC |
output AC frequency (Hz) |
0~400 |
Rated charging current (A) |
15 |
The maximum charging current (in a short time )(A) |
30 |
Generator efficiency |
>0.8 |
Tower diameter(mm) |
D89X3.5×2000 |
Tower height(m) |
8 |
Weight of generator (kg) |
15 |
Battery 12V 120Ah/150Ah/ 200Ah |
5pcs |
3. 1kw high quality wind generator structure
4.Solutions

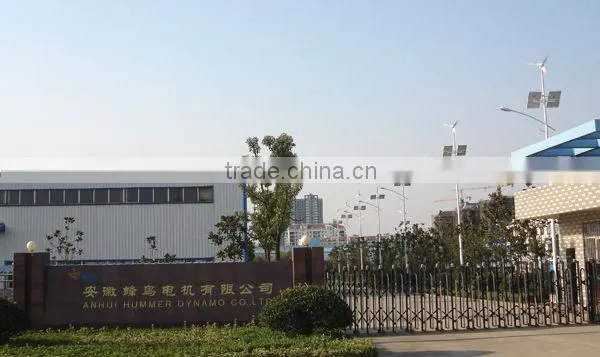

5. Factory and Exhibitions
