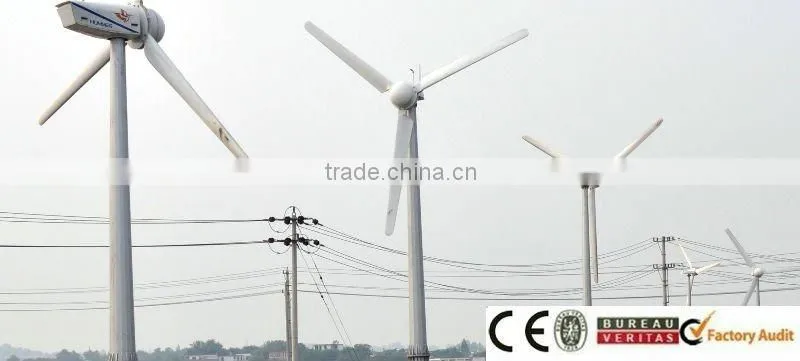

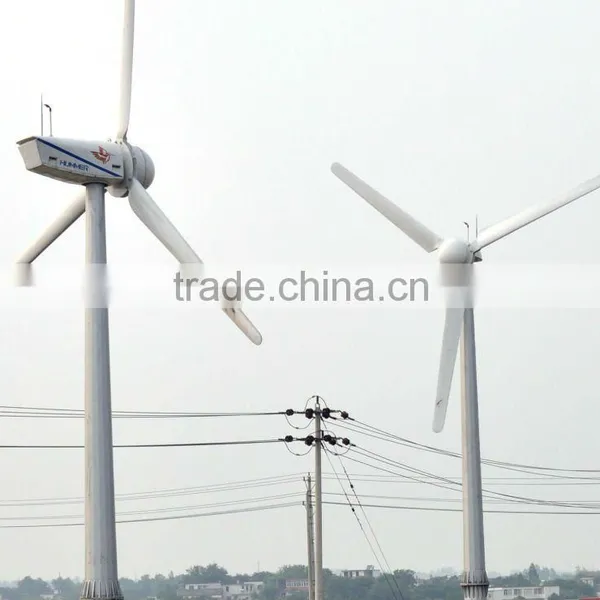

1MW Wind Farm build with 10 sets 100kw(0.1MW) Wind Turbine Generator
Main Technical Parameter of 100KW/0.1MW wind turbine generator :
Rated power(W) |
100000 |
Maximum output power (W) |
100000 |
Charging voltage (V) |
DC 480 |
Blade quantity |
3 |
Rotor blade material |
GRP |
Rotor blade diameter |
20.8M |
Start-up wind speed (m/s) |
3 |
Rated wind speed (m/s) |
11 |
Rated rotating rate (r/min) |
60 |
Generator efficiency |
>0.93 |
Free standing tower diameter (in.) |
Ø53.1*Ø20.9 (Φ1350×Φ530mm) |
Tower height (ft.) |
24m |
The weight of generator |
4000kg |
Suggested Battery (Ah) |
800/1500 |
Parts and Components:

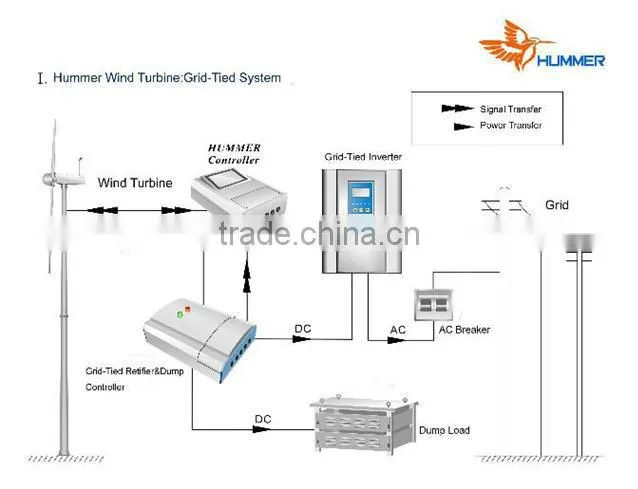

Wind Turbine Generator Solutions:

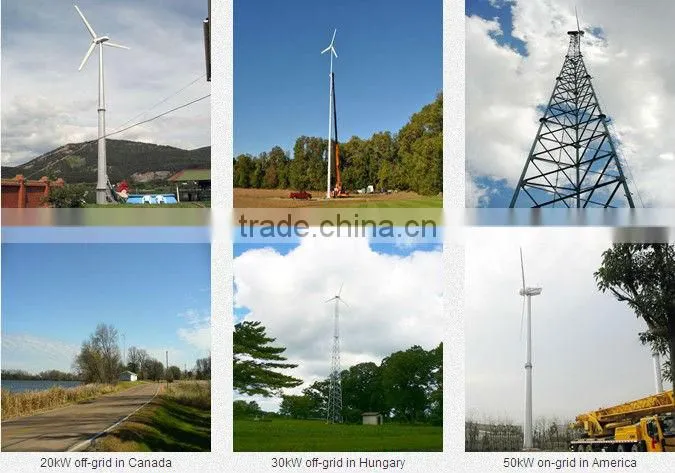

Project Cases:
Widely used in:
Housing and factory and farm
Telecommunication Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
Shipping
Any Question, Pls Feel Free To Contact Hummer Dynamo!
