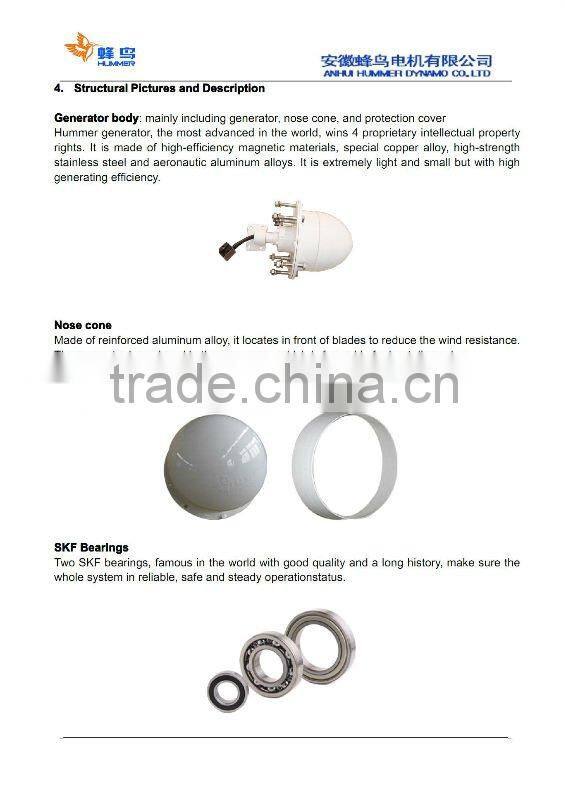

Alibaba recommed 500w power generator dynamo alternative energy small windmill dynamo all over the world
Products Features
- SCF (Supercritical generator technology) as core
- Feature is extremely light ,small,fasting,stable with higher power efficiency .
- With SKF bearings, 15 years life span without maintenance
- Smart yaw shaft - furling tail design with patents for strong wind protection and balance-keeping.
- 7 patents and Brussels’ gold medal
Application :
Housing, office, farm and factory
Telecommunications Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
Main technical data
Rated power (W) |
500 |
Maximum output power (W) |
1000 |
Charging voltage (V) |
DC 24 |
Blade quantity |
3 |
Blade material |
GRP |
Blade diameter (ft.) |
9 (2.7m) |
Start-up wind speed (mph) |
7 (3.0m/s) |
Rated wind speed (mph) |
16 (7.0m/s) |
Rated rotating rate (r/min) |
600 |
Wind energy utilizing ratio (Cp) |
0.48 |
Generator output |
Frequency conversion AC |
Output AC frequency (Hz) |
0~300 |
Rated charging current (A) |
16.7 |
The maximum charging current (in a short time)(A) |
25 |
Generator efficiency |
>0.78 |
Tower diameter (in.) |
ø3.0*78.7*0.1 (ø76*2000*3 mm)(3pcs) |
Tower height (ft.) |
20 (6m) |
Generator weight (lb) |
14 (6.5kg) |
Suggested Battery (Ah) |
120/150 |
H2.7-500W Off Grid Wind Turbine / SET
No |
Parts |
Package material |
Dimension(m) |
Volume (CBM) |
Total Weight(kg) |
|
N.W |
G.W |
|||||
1 |
Generator box |
plywood containers |
1.5*0.3*0.275 |
0.12 |
45 |
61 |
2 |
Inverter box |
0.69*0.58*0.285 |
0.11 |
9 |
16 |
|
3 |
Guys Tower |
2.128*0.24*0.218 |
0.11 |
37.7 |
49 |
|
TOTAL |
|
|
|
0.35 |
91.7 |
126 |
