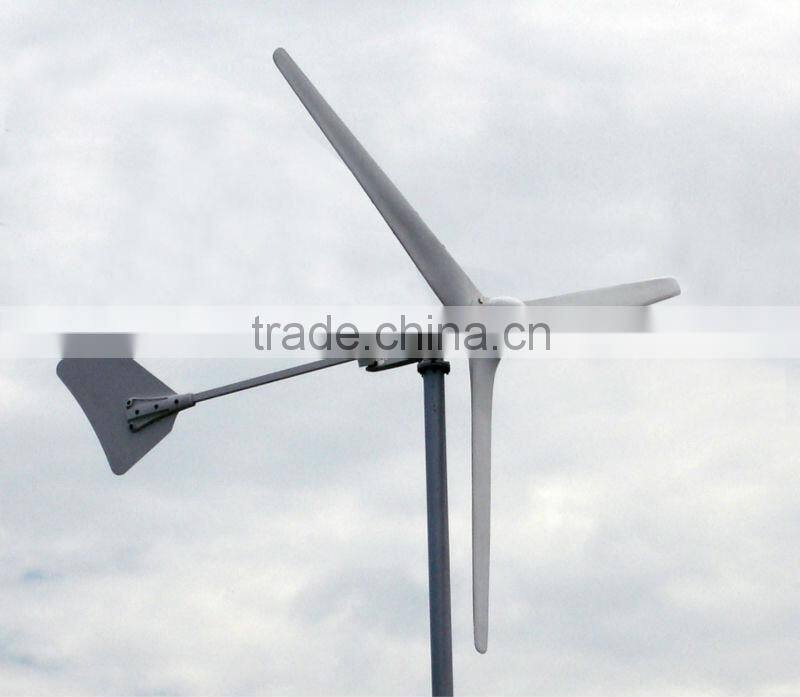

Help CenterQuiet Cheap 500W 1000W 2000W Small Wind Tubine/windmill
Related Products
-
Wind Generator ,500W Off-grid Home Use Wind GeneratorUS$ 500 - 1,000MOQ: 1 Set -
New High Quality 500w Green Power Small Wind Turbine Generator for SaleUS$ 1,500 - 5,000MOQ: 1 Set
-
High Efficiency 24v Wind Solar Power System Alternator Generator 500wUS$ 1,500 - 5,000MOQ: 1 Set
-
Hot Sale Hummer Wind Turbine 500W PMG Wind GeneratorUS$ 600 - 1,500MOQ: 1 Set
-
Roof Installation 500W/1kW/2kW Micro Wind Turbine GeneratorUS$ 500 - 1,500MOQ: 1 Piece
Specifications
Light,smart structurehigh output efficiency
quite running with SKF bearings
Easy installation, maintenances
CE certificate
quiet cheap 500W 1000W 2000W Small Wind Tubine/windmill Specifications
Rated power (W) |
500 |
Maximum output power (W) |
1000 |
Battery bank voltage (Vdc) |
24 |
System output voltage (Vac) |
110/220 |
Start-up wind speed (m/s) |
3 |
Rated wind speed (m/s) |
7 |
Working wind speed (m/s) |
3-25 |
Survival wind speed (m/s) |
50 |
Generator efficiency |
>0.78 |
Wind energy utilizing ratio (Cp) |
0.48 |
Generator type |
Permanent Magnet Alternator |
Generator weight (kg) |
6.5 |
Blade material/quantity |
GRP/3 |
Blade diameter (m) |
2.5 |
Speed regulation method |
Yawing+Electromagnetism braking |
Shutting down method |
Manual+Automatic |
POWER CURVE
Key Features
1Light,smart,generator in high efficiency with 7 National Patents,quite and easy installation
2Lowe noise with 2 SCF bearings,long service life and easy maintenance
3The generator locating in nose cone,easy to radiate heat and reduce wind resistance
5Multiple protection: mechanical furling,manual and electromagnetic braking ,Optional hydraulic braking
6Equipped with a closed transmission slip ring to prevent cable from being wrapped
7The blades with airfoil design ,aerodynamically optimized based on the wind tunnel test,efficient and practical
8The anticorrosive processing ,like hot gavanizing and spray paining,being efficient to prevent the turbine from atmospheric,salt spray and aeolianerosion
9ULand CE tested and certtified,ISO standard
10Grid-tied,off-grid,optional

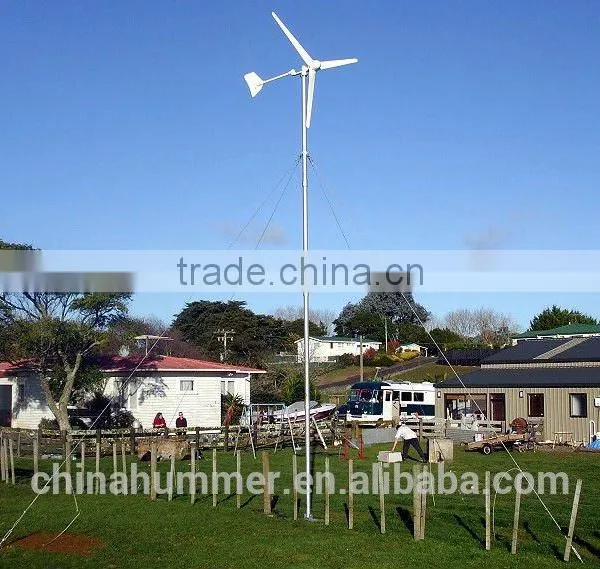

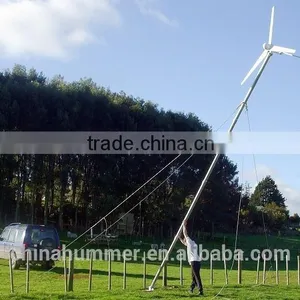

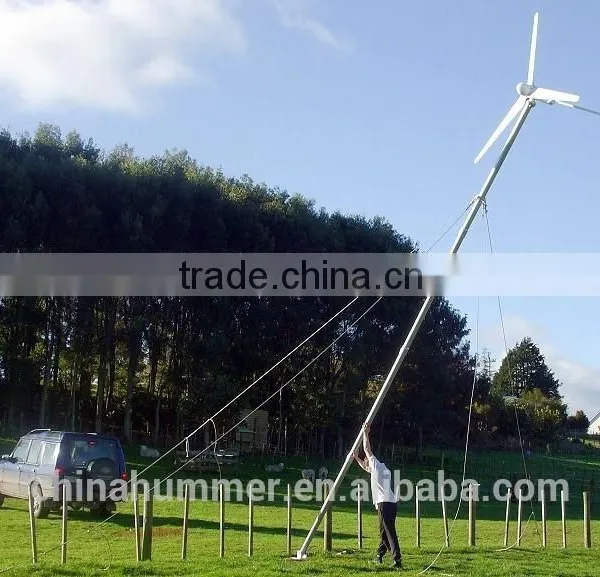

11Guyed tower,free sanding tower ,hydraulic tower optional for different customers'demands

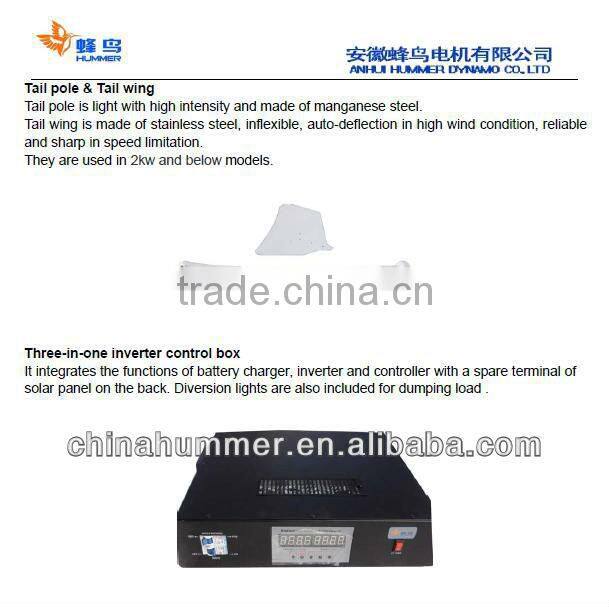

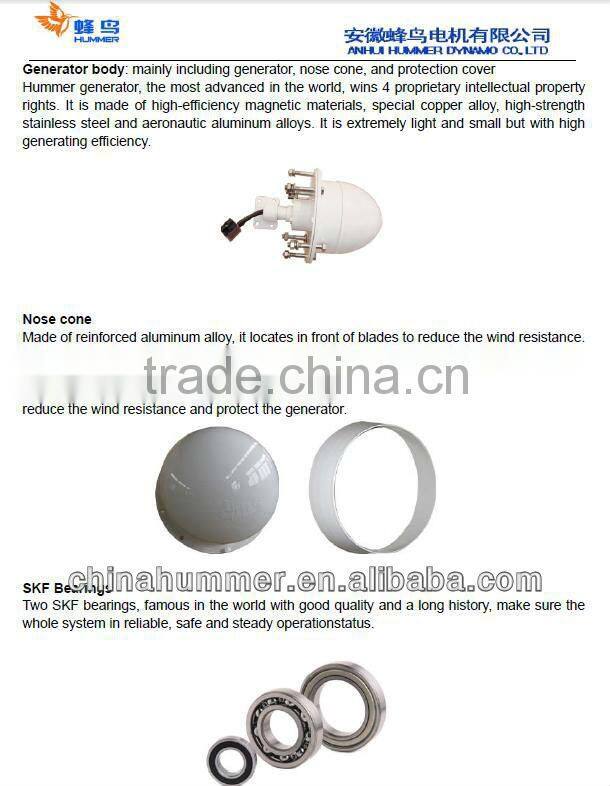

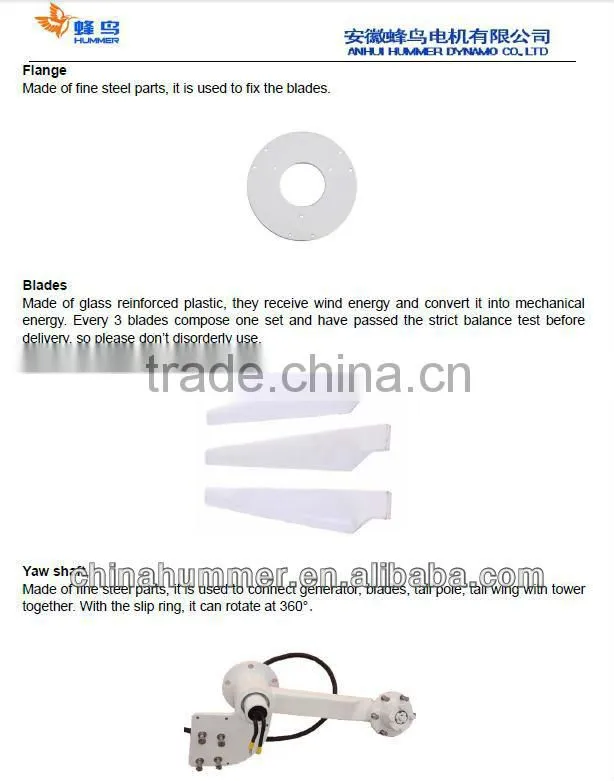

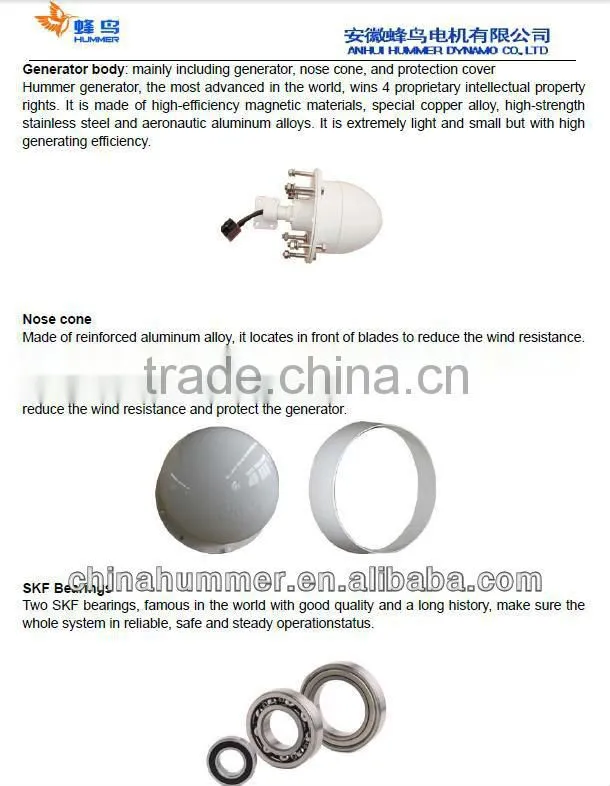

Structural Pictures and Description
