30kw wind turbine catalog/solutions/turbinensystem
Trust the strength of corporation brand----It is your best choise!
1. 30KW Wind Turbine Catalog:
(1)Advanced SCF supercritical generator technology which won the world invention gloden award, generator weight is 1/3-1/5 than traditional ones, make hummer wind turbine lighter,smaller and more efficient;
(2)Innovative breeze start patent technology;
(3)Two SKF bearing, stable inner and outer ring, it has higher rated bearings and lower noise as well as long service life;
(4)Top quality component, hummer generator body wins 4 proprietary intellectual property rights, which be made of high-efficiency magnetic materials, special copper alloy, high-strength stainless steel and aeronautic aluminum alloys, make high generating efficiency.
2.Technical parameter of wind turbinensystem
| Rated power (W) | 30000 |
| Maximum output power (W) | 45000 |
| Charging voltage (V) | DC 360 |
| Blade quantity | 3 |
| Rotor blade material | GRP |
| Rotor blade diameter (ft.) | 33 (10.0m) |
| Start-up wind speed (mph) | 6 (2.5m/s) |
| Rated wind speed (mph) | 25 (11.0m/s) |
| Rated rotating rate (r/min) | 160 |
| Wind energy utilizing ratio (Cp) | 0.42 |
| Generator output | Frequency conversion AC |
| Rated charging current (A) | 83 |
| The maximum charging current (in a short time ) (A) | 125 |
| Output AC frequency (Hz) | 0~400 |
| Generator efficiency | >0.92 |
| Free standing tower diameter (in.) | Φ47.2*Ø18.7 (Ø1200*Φ475mm) |
| Tower height (ft.) | 59 (18m) |
| The weight of generator (lb) | 1764 (800kg) |
| Suggested Battery (Ah) | 600/1000 |
3.Structural Picture of Wind Turbine

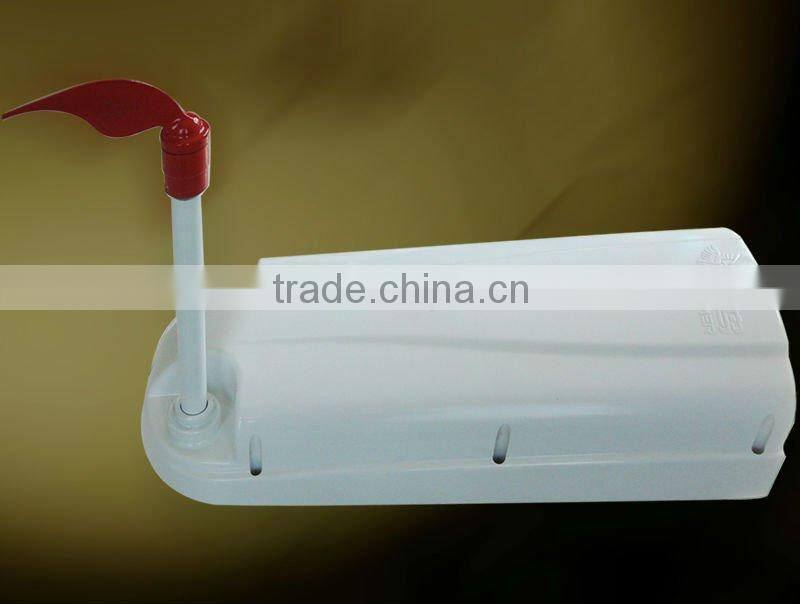

1)Motor generator
2)Nose cone made of reinforced aluminum alloy, antisepsis casting
3) yaw shaft with the power supply and gearbox inside, controlling the operation of wind generator

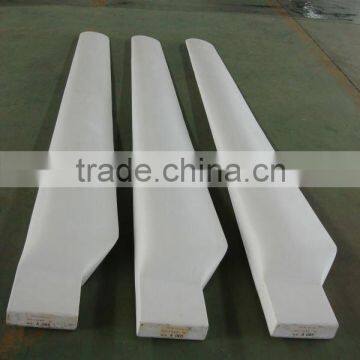

Blade:with airfoil design; made of glass fiber reinforced plastic
5)30kw hot sale wind turbine hydraulic Tower

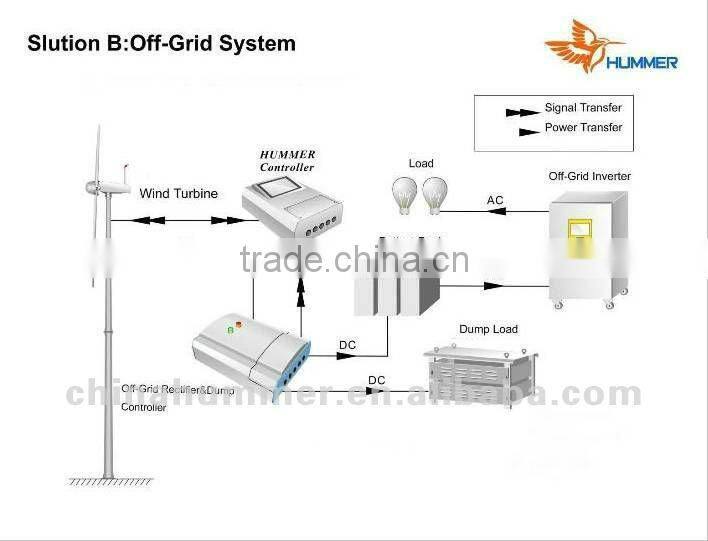

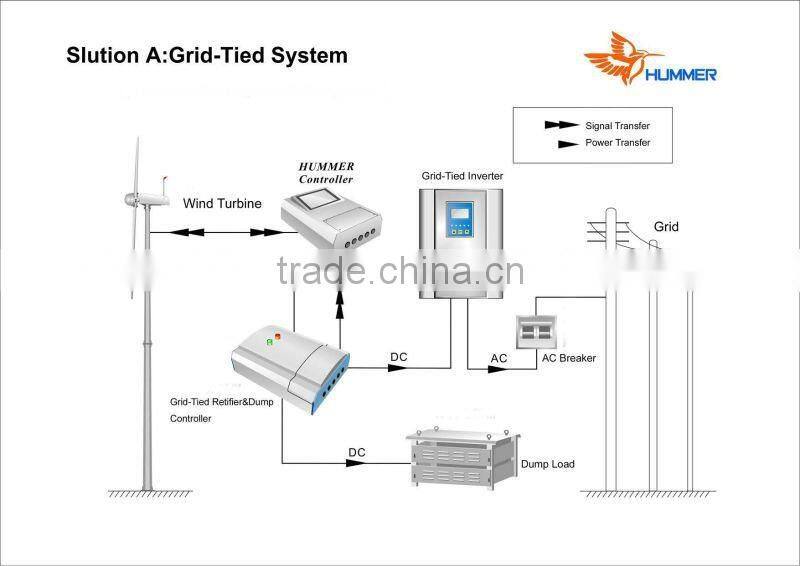

4.30KW Wind Turbine Solutions

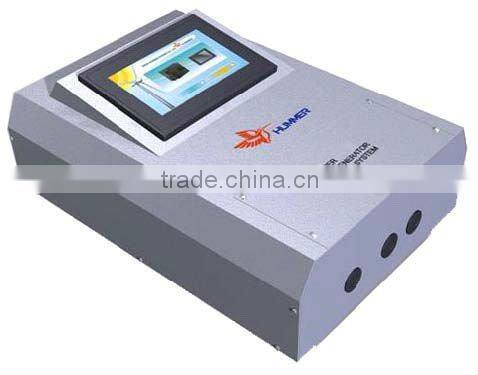

5. PLC Controller (Can controller by computer)

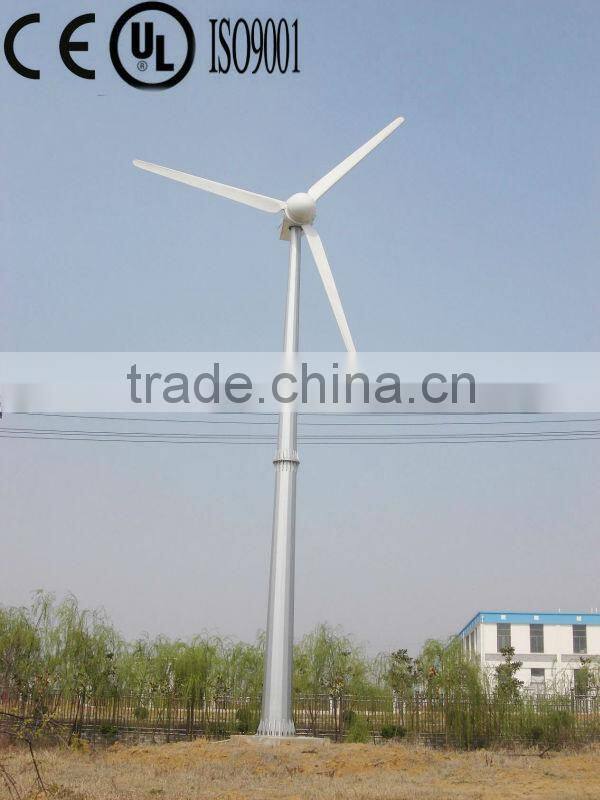

7.Where should 30kw install
Concern Models: If you want to find a suitable wind turbine for yourself, then please tell our sales following information :
(1) Your annual average wind speed
(2) The Total power of your load. And if you have motor, pump, air conditioner, please mention especially.
(3) If this system is not for house use, it is supply power for other equipment, please mention the working time of the equipment too.
So i can give you a better suggestions that which kind wind turbine is more suit for you.
In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement
Minimum Order Quantity: 1 set
Delivery time: 20 working days after received the deposit.
Payment: T/T 30% deposit and the balance paid before shippment
Package: ply wooden case
FOB port: Shanghai,China
Guarantee: 2 years for the generator and one year for other parts. have 20 years generator lifetime
