HAWT 50KW on Grid Low RPM Wind Power Generator or Windturbine

Name: HAWT 50KW on Grid Low RPM Wind Power Generator or Windturbine
Brand: Hummer
SKU: 122483513

US$ 39,999 - 89,999 MOQ: 1 Set

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Hummer

Model Number:

H12.0-50KW

Anhui Hummer Dynamo Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Hummer

Model Number H12.0-50KW

Type Wind Power Generator

Specifications

10%~30% efficiency higher
1/3~1/5 smaller and lighter
Smart control system.
free maintenance

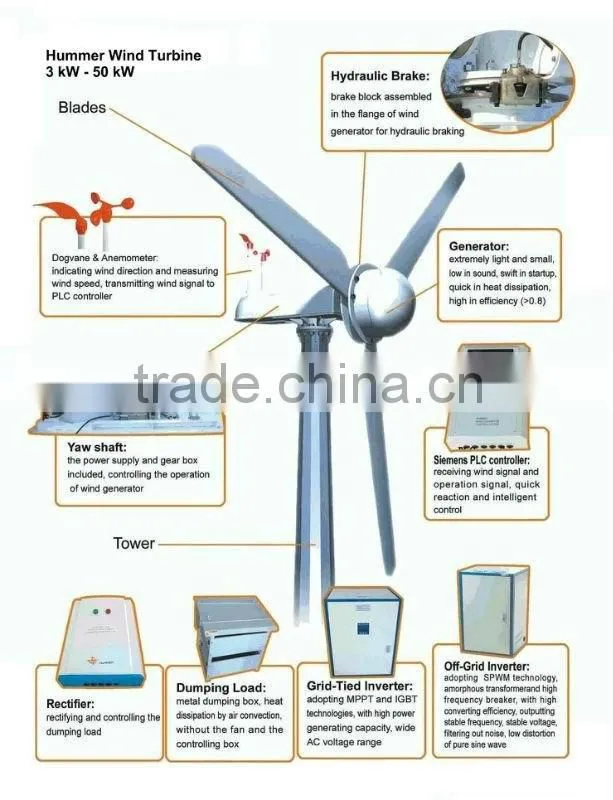

Hummer HAWT windturbine System:

Supercritical generator technology, 30% efficicency higher maximum, weightlighter, less volume.
SKF bearing, good quality with free maintenance.
Unique generator location at the nose cone of the wind turbine, good for heat disspation and decrease the wind resistance.
Siemens PLC smart control system with touchscreen tablet.
Multiple protection: Mechanical or electrical yawing, and manual operation etc.
Carbon brush to prevent the cables from wraping.
Airfoil blade design.
Anticorrosive processing material.
Grid tied or off grid optional.
Guyed tower or free standing tower, hydraulic tower are all available.
CE approved.

H12.0-50KW wind generator system, both off grid and grid tied are available.

Main technical parameter:

Rated power(W)	50000
Maximum output power (W)	75000
Charging voltage (V)	DC 400
Blade quantity	3
Rotor blade material	GRP
Rotor blade diameter (ft.)	39 (12.0m)
Start-up wind speed (mph)	5 (2.0m/s)
Rated wind speed (mph)	25 (11.0m/s)
Rated rotating rate (r/min)	140
Wind energy utilizing ratio (Cp)	0.42
Generator output	Frequency conversion AC
Rated charging current (A)	125
The maximum charging current (in a short time) (A)	190
Output AC frequency (Hz)	0~400
Generator efficiency	>0.92
Free standing tower diameter (in.)	Ø53.1*Ø20.9 (Φ1350×Φ530mm)
Tower height (ft.)	59 (18m)
The weight of generator (lb)	2646 (1200kg)
Suggested Battery (Ah)	800/1500
