Rotary Vibrator Hose Grade D Sour Service (Kelly Hose)
5,000psi W.P. – 10,000 psi Test-12,500 psi Minimum Burst
Certification/Standards:
API Spec 7K-ISO 14693-NACE MR0175
Recommended For:
Flexible connection between standpipe and swivel (Rotary Drilling) or between pump and standpipe (Rotary Vibrator) for pumping mud at extra high pressure in oil drilling and exploration work. Meets the high demands of directional drilling and down linking with negative pressure pulses and elevated temperatures. This hose can also be used as a Motion Compensator hose for stabilization of rotary drilling and pumping equipment against vertical wave action on offshore drill platforms. The Motion Compensator hose is not recommended for phosphate ester fluids.
Tube:
HNBR rubber. Black. Resists abrasion, corrosion, oil, and up to 20% H2S.

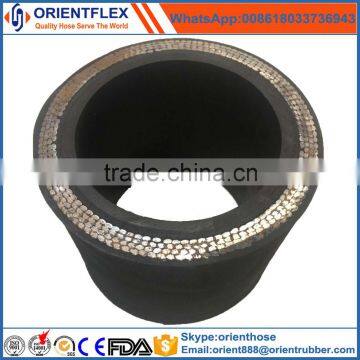

Reinforcement:
Multiple layers of textile fabric and steel cable, with one layer middle rubber placed between cable layers.
Cover:
Modified Nitrile. Black. Specially designed Ultra abrasion cover is resistant to abrasion, corrosion, cutting, gouging, oil and weather.
Couplings:
Swaged couplings. Full range of couplings are available, such as hammer unions, flanges, camlock, male thread, etc.
Temperature:
-4℉ to +200℉ (-20℃ to +93℃) continuous service.
Options:
Accessories such as safety clamps, hose lift eyes and stainless steel armor are available upon request.
Test:
Specification
| Hose ID | Hose O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius | |||||
| (In.) | (mm) | (In.) | (mm) | (psi) | (MPa) | (psi) | (MPa) | (In.) | (mm) |
| 2 1/2 | 63.5 | 4.14 | 105.2 | 5000 | 35 | 12500 | 87.5 | 36 | 914 |
| 3 | 76.2 | 4.61 | 117.1 | 5000 | 35 | 12500 | 87.5 | 48 | 1219 |
| 3 1/2 | 88.9 | 5.25 | 133.4 | 5000 | 35 | 12500 | 87.5 | 54 | 1372 |
| 4 | 101.6 | 5.61 | 142.5 | 5000 | 35 | 12500 | 87.5 | 54 | 1372 |

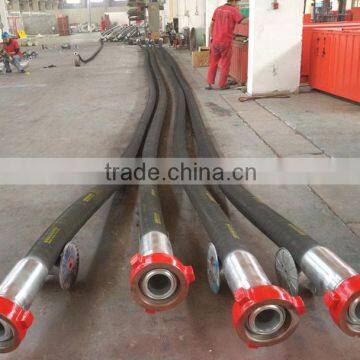

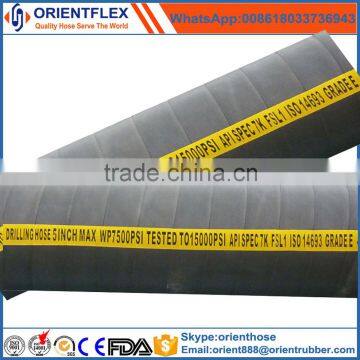

Product show:
ORIENTFLEX is a professional manufacturer of rubber and plastic hose in Hebei, China.
Established in 2006, OrientFlex have more than 240 experienced workers, own a strong
R & D team, including 16 experienced engineers.
Advantage:
1). Advanced production equipment
2). ISO 14000 / ISO 9000 / Quality certificate
3). Strict quality inspection, Strong R&D team
4). Environmental friendly without pollution
5). 10 years manufacturing experience, strong and experienced export team
Show:
ORIENTFLEX has a strong sales and service team of 20 people, with more than five years experience in foreign
trade, to provide professional services for customer.
ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid machines,15 high-speed steel
wire braid machines,2 steel wire spiral production lines.45 PVC hose production lines.We have introduced VP brand
Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.
ORIENTFLEX has strong quality control team,we set up advanced laboratory.Before mass production,we test each
batch raw material.After production,we test each hose to guarantee 100% qualification.
ORIENTFLEX has three warehouses.
Product advantage:
• Germany Lanxess HNBR as raw material.
20% H2S and 80% oil based mud.
Survive the extreme oilfield application requirements and has been no quality complaint for 5 years.

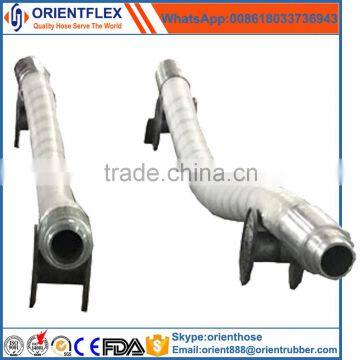

• Stainless steel 316L used as armored jacket.Factory Workshop:
• SEJIN MACHINE from Korea.
Suspension difference<70 MM, and the international standard is 120 MM.
• Mitsubishi electric control braiding machine.
High accuracy data collection, real-time braiding angle monitoring and correction.
Test: Each hose is tested at 10000psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.
Packing:After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.
Certifications:All Product Meet The Standard Of ISO And The Requirement Of API.
