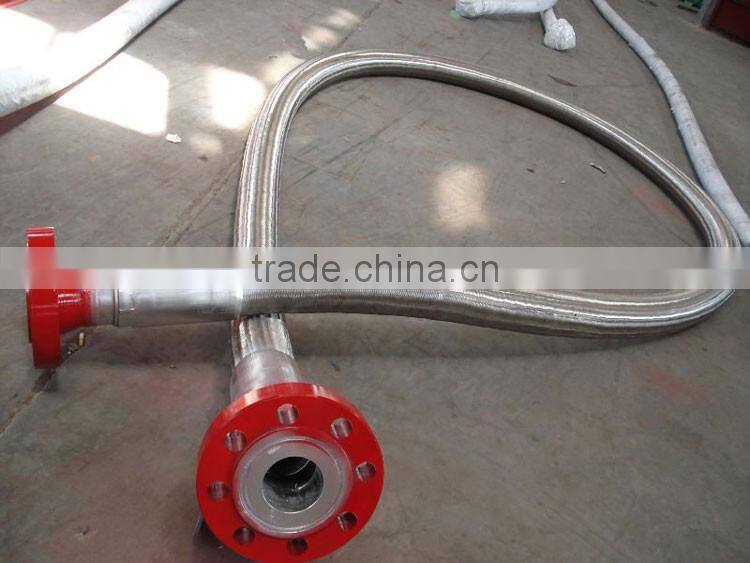

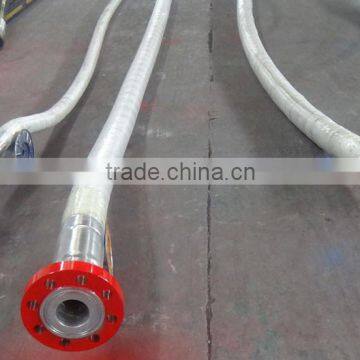

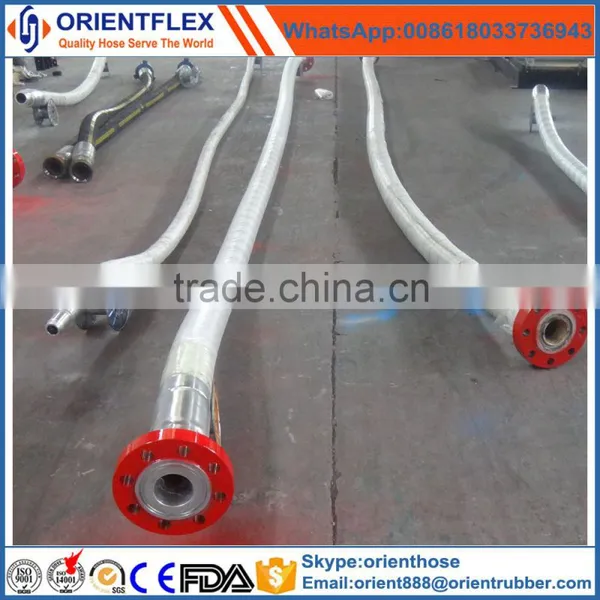

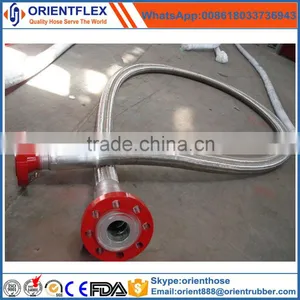

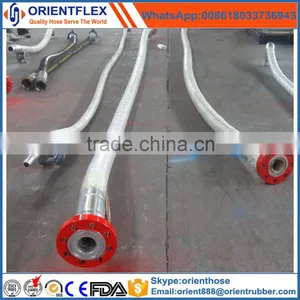

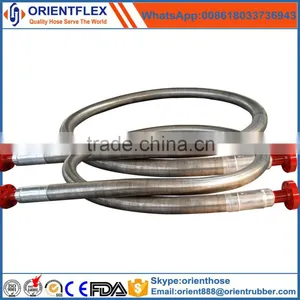

Choke & Kill Hose 15000PSI
Choke & Kill Hose 15000PSI
15,000psi W.P. – 22,500 psi Test-33,750 psi Minimum Burst
Certification/Standards:
API Spec 16C--ISO 14693
Recommended For:

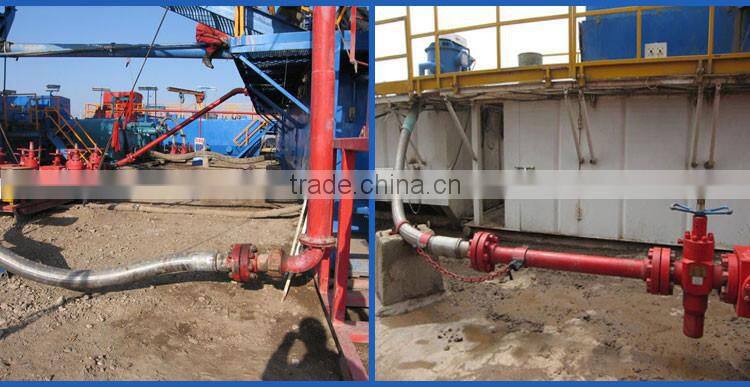

Flexible hose between the riser and manifold or around the ball joint of offshore drilling rigs, specially designed to withstand high pressure.
Tube:
Modified Nitrile. Black. Resists abrasion, corrosion, oil, and up to 20% H2S.
Reinforcement:

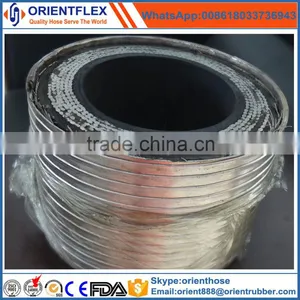

Multiple layers of textile fabric and steel cable, with one layer middle rubber placed between cable layers.
Cover:

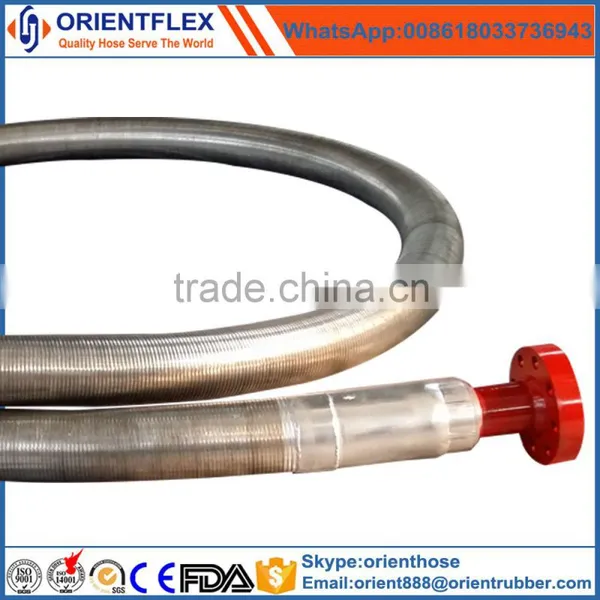

Fire resistant rubber cover, stainless steel armored to handle abrasion, corrosion, cutting, gouging, oil and weather.
Couplings:Swaged couplings. Full range of couplings are available, such as hammer unions, flanges, camlock, male thread, etc.
Temperature:
-4℉ to +200℉ (-20℃ to +93℃) continuous service.
Options:
Accessories such as safety clamps and hose lift eyes are available upon request.
Test:
Each hose is tested at 22500psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.
Specification
| Hose ID | Hose O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius | |||||
| (In.) | (mm) | (In.) | (mm) | (psi) | (MPa) | (psi) | (MPa) | (In.) | (mm) |
| 2 1/2 | 63.5 | 5.14 | 130.6 | 10000 | 70 | 22500 | 155 | 48 | 1219 |
| 3 | 76.2 | 5.64 | 143.3 | 10000 | 70 | 22500 | 155 | 48 | 1219 |
| 3 1/2 | 88.9 | 6.05 | 153.7 | 10000 | 70 | 22500 | 155 | 54 | 1372 |

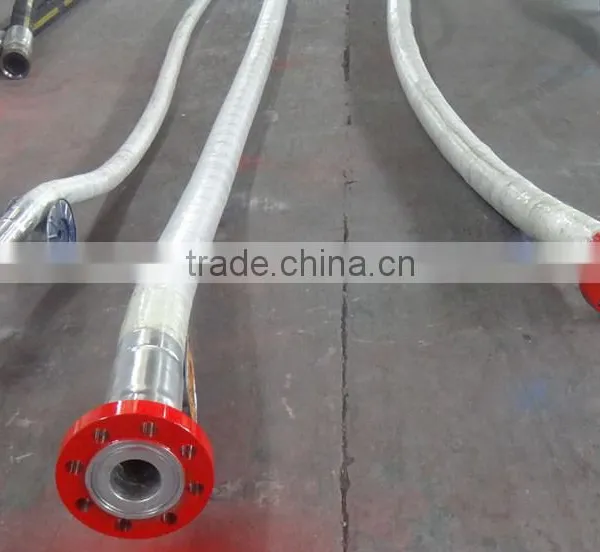

Product show:
ORIENTFLEX is a professional manufacturer of rubber and plastic hose in Hebei, China.
Established in 2006, OrientFlex have more than 240 experienced workers, own a strong
R & D team, including 16 experienced engineers.
Advantage:
1). Advanced production equipment
2). ISO 14000 / ISO 9000 / Quality certificate
3). Strict quality inspection, Strong R&D team
4). Environmental friendly without pollution
5). 10 years manufacturing experience, strong and experienced export team
Show:
ORIENTFLEX has a strong sales and service team of 20 people, with more than five years experience in foreign
trade, to provide professional services for customer.

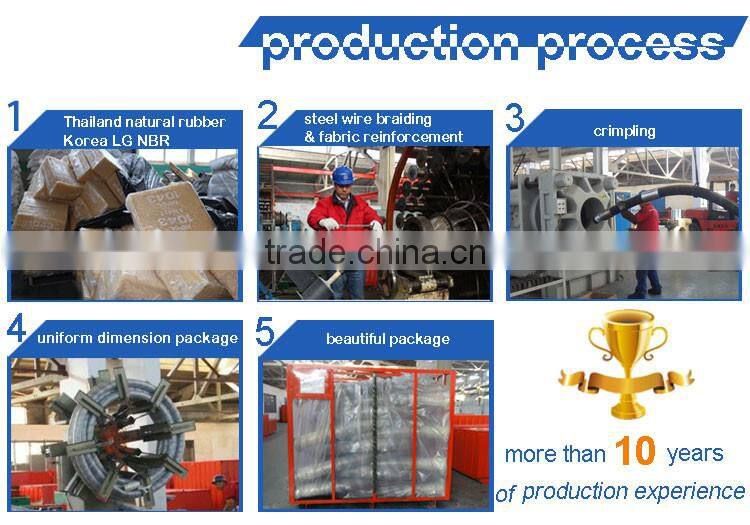

ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid machines,15 high-speed steel
wire braid machines,2 steel wire spiral production lines.45 PVC hose production lines.We have introduced VP brand
Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.
ORIENTFLEX has strong quality control team,we set up advanced laboratory.Before mass production,we test each
batch raw material.After production,we test each hose to guarantee 100% qualification.
ORIENTFLEX has three warehouses.
Advantages:
• Germany Lanxess HNBR as raw material.
20% H2S and 80% oil based mud.
Survive the extreme oilfield application requirements and has been no quality complaint for 5 years.
Factory Workshop:
• SEJIN MACHINE from Korea.
Suspension difference<70 MM, and the international standard is 120 MM.
• Mitsubishi electric control braiding machine.
High accuracy data collection, real-time braiding angle monitoring and correction

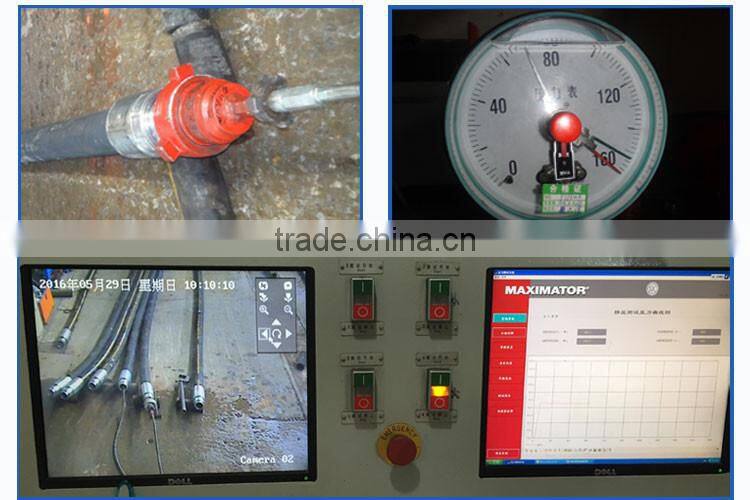

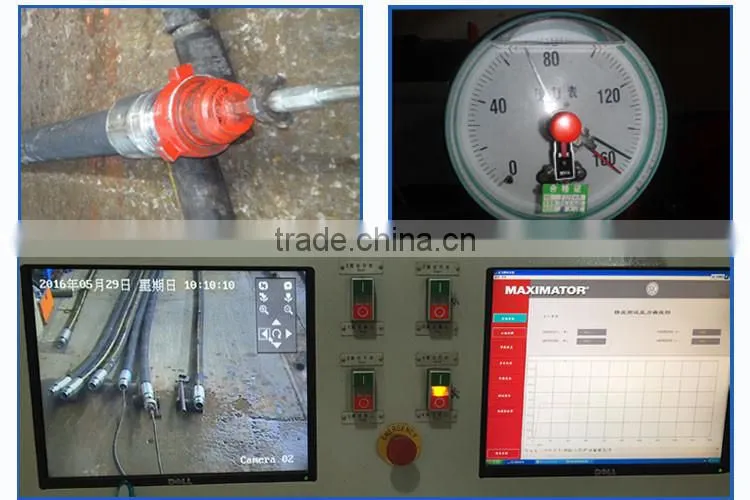

Test: Each hose is tested at 10000psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.
test 2:burning test

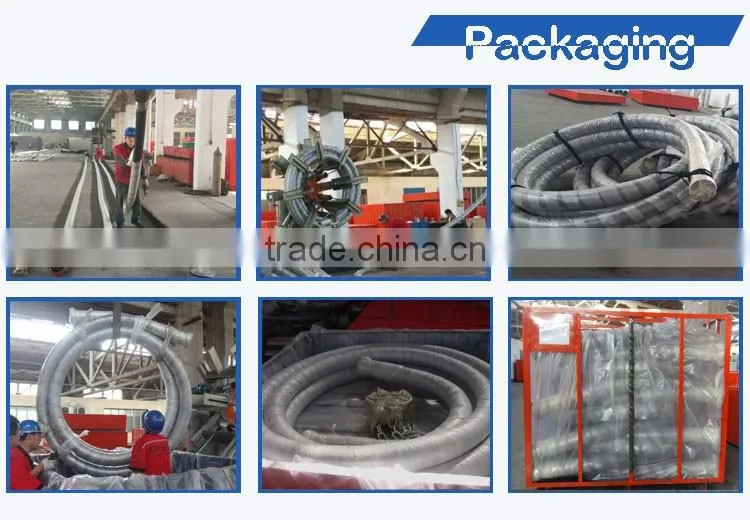

Packing:After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.
Certifications:All Product Meet The Standard Of ISO And The Requirement Of API.
For More Certifications And about ORIENT Please See The Below Link:
http://orientrubber.en.china.cn/custom_page_1/About_Orient.html
Skype:orienthose Whatsapp:008618033736943
TEL:+86-311-68008301 Fax: +86-311-68008302
Mobilephone:008618033736943
Email:orient888@orientrubber.com
Add: No298 Zhonghua North Street, Shijiazhuang, Hebei, China
More rubber hose products information Please visit:
http://orientrubber.en.china.cn/
