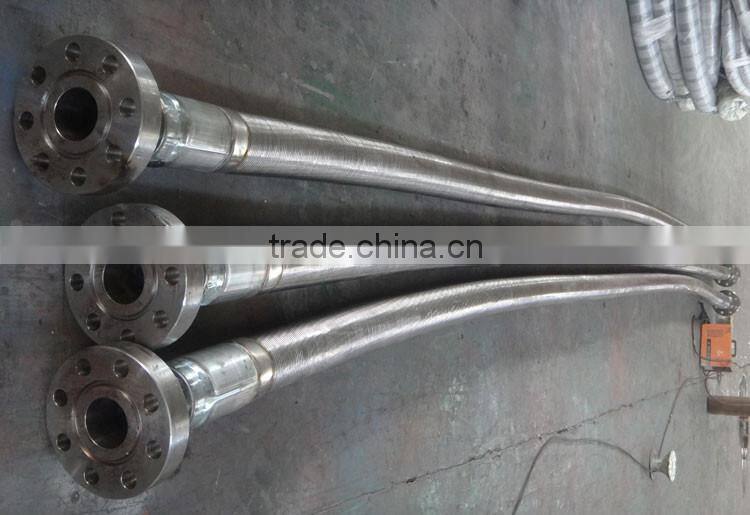

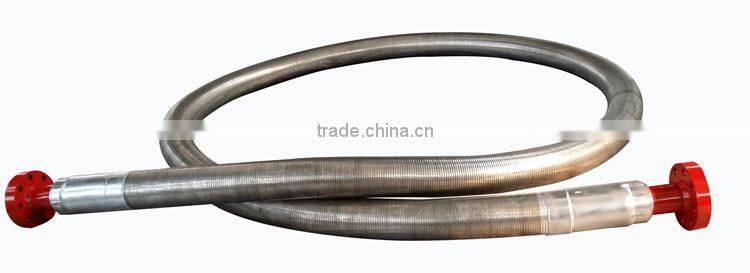

Choke & Kill Hose 5000PSI
Choke & Kill Hose 5000PSI
5,000psi W.P. – 10,000 psi Test-15,000 psi Minimum Burst
Certification/Standards:
API Spec 16C--ISO 14693
Recommended For:
Flexible hose between the riser and manifold or around the ball joint of offshore drilling rigs, specially designed to withstand high pressure.
Tube:
Modified Nitrile. Black. Resists abrasion, corrosion, oil, and up to 20% H2S.
Reinforcement:
Multiple layers of textile fabric and steel cable, with one layer middle rubber placed between cable layers.
Cover:
Fire resistant rubber cover, stainless steel armored to handle abrasion, corrosion, cutting, gouging, oil and weather.
Couplings:
Swaged couplings. Full range of couplings are available, such as hammer unions, flanges, camlock, male thread, etc.
Temperature:
-4℉ to +200℉ (-20℃ to +93℃) continuous service.
Options:
Accessories such as safety clamps and hose lift eyes are available upon request.
Test:
Each hose is tested at 10000psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.
Specification
| Hose ID | Hose O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius | |||||
| (In.) | (mm) | (In.) | (mm) | (psi) | (MPa) | (psi) | (MPa) | (In.) | (mm) |
| 2 1/2 | 63.5 | 4.15 | 105.4 | 5000 | 35 | 15000 | 105 | 36 | 914 |
| 3 | 76.2 | 4.61 | 117.1 | 5000 | 35 | 15000 | 105 | 48 | 1219 |
| 3 1/2 | 88.9 | 5.25 | 133.4 | 5000 | 35 | 15000 | 105 | 54 | 1372 |
| 4 | 101.6 | 6.4 | 162.6 | 5000 | 35 | 15000 | 105 | 60 | 1524 |

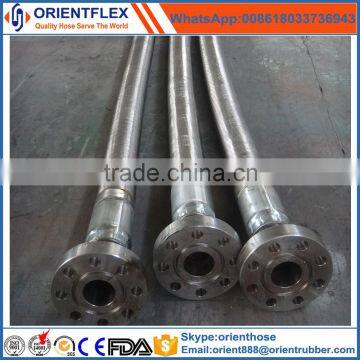

Product show:
ORIENTFLEX is a professional manufacturer of rubber and plastic hose in Hebei, China.
Established in 2006, OrientFlex have more than 240 experienced workers, own a strong
R & D team, including 16 experienced engineers.
Advantage:
1). Advanced production equipment
2). ISO 14000 / ISO 9000 / Quality certificate
3). Strict quality inspection, Strong R&D team
4). Environmental friendly without pollution
5). 10 years manufacturing experience, strong and experienced export team
Show:
ORIENTFLEX has a strong sales and service team of 20 people, with more than five years experience in foreign
trade, to provide professional services for customer.
ORIENTFLEX has advanced production facilities, including 13 high-speed fiber braid machines,15 high-speed steel
wire braid machines,2 steel wire spiral production lines.45 PVC hose production lines.We have introduced VP brand
Industrial hose production line from Italy and Maillefer extrusion line from Switzerland.
ORIENTFLEX has strong quality control team,we set up advanced laboratory.Before mass production,we test each
batch raw material.After production,we test each hose to guarantee 100% qualification.
ORIENTFLEX has three warehouses.
Advantages:
•China’s first API authorized manufacturer of Choke & Kill Hose with a certificate of API Spe 16C
•a patent for firstly producing the fire resistant hose in China
•The Choke & Kill Hose has passed the USA Southwest Research Institute Test.
•stainless steel 316L used as armored jacket.
Factory Workshop:
• SEJIN MACHINE from Korea.
Suspension difference<70 MM, and the international standard is 120 MM.
• Mitsubishi electric control braiding machine.
High accuracy data collection, real-time braiding angle monitoring and correction.
Test: Each hose is tested at 10000psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.
Strong quality control team, advanced laboratory.
Before the mass production, test each batch of raw material.
After the production, test each hose to guarantee a 100% qualification.
Each hose tested at 2 times of working pressure.
We do everything possible to supply good quality goods for our customer.
Packing:After finishing the hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.
Certifications:All Product Meet The Standard Of ISO And The Requirement Of API.
Skype:orienthose Whatsapp:008618033736943
TEL:+86-311-68008301 Fax: +86-311-68008302
Mobilephone:008618033736943
Email:orient888@orientrubber.com
Add: No298 Zhonghua North Street, Shijiazhuang, Hebei, China
