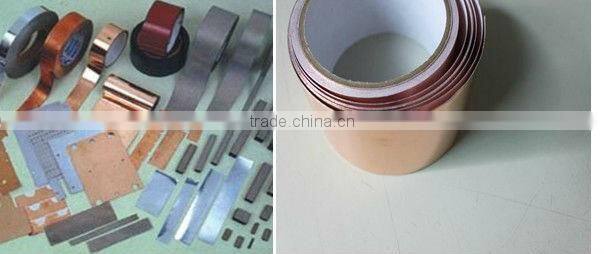

Help CenterBest Copper Foil Conductive Tape
US$ 1 - 10
MOQ: 1 Roll
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
western hemisphere
Model Number:
wh765
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
western hemisphere
Model Number
wh765
Specifications
1.carrier thickness:0.018mm-0.05mm2.peeling strength:1.0-1.5kg/25mm
3.temperature resistance:zero10---120
Introduction:
The copper foil is of a low surface oxygen characteristics, can be attached to a variety of different substrates such as metal, insulating materials, etc., within a wide temperature range. Mainly used for electromagnetic shielding and antistatic, conductive copper foil on the substrate surface, combined with the metal substrate, has an excellent conductivity and electromagnetic shielding effect.It can be divided into: self-adhesive copper foil, copper foil of the double glue,single copper foil, duplex copper foil.
Features:
Single Copper foil tape:
1)-High quality,low price,fast ship
2)-UL,SGS,ISO9001 certificate
3)-Conductive and shielding
Physical parameter:
| Item | Unit | value |
| Backing | copper foil | |
| Adhesive | acrylic | |
| foil thickness | mm | 0.018mm-0.05mm |
| adhesive thickness | mm | 0.03mm-0.04mm |
| Elongation | % | 7%~10%MIN |
| peel strength with 180° | N/cm | 1.0~1.5kg/25mm |
| Tack Rolling Ball | cn | 12 |
| electric resistance | Ω | 0-0.04 |
| Service temperature | °C | —10……140 |
