Contact Platform Support
Help Center
US$ 0.06 - 0.6
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Model Number:
1919 10W COB LED Chip
Chip Material:
InGaN
Emitting Color:
Other, White
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality 1919 10W COB LED Chip for SpotlightUS$ 0.06 - 0.6MOQ: 50 Pieces -
High Quality 1919 10W COB LED Chip for Ceiling LightUS$ 0.06 - 0.6MOQ: 50 Pieces
-
3 Years Warranty High Quality 1919 10W COB LED Chip for Ceiling LightUS$ 0.06 - 0.6MOQ: 50 Pieces
-
3 Years Warranty High Quality 1919 10W COB LED Chip for Down LightUS$ 0.06 - 0.6MOQ: 50 Pieces
-
3 Years Warranty High Quality DC 36V 1919 10W COB LED Chip for Down LightUS$ 0.06 - 0.6MOQ: 50 Pieces
Model Number
1919 10W COB LED Chip
Chip Material
InGaN
Emitting Color
Other, White
Luminous Intensity
.
Luminous Flux(lm)
800-1200 Lumen
Optical Attenuation(%)
0.3
Power
Other, 10Watt
Power Dissipation
10000
Color Rendering Index(Ra)
80
Color Temperature
6000-6500K
Operating Temperature(℃)
-20, 60
Storage Temperature(℃)
-40, 100
Place of Origin
Guangdong, China
Brand Name
SHINING
Certification
CE

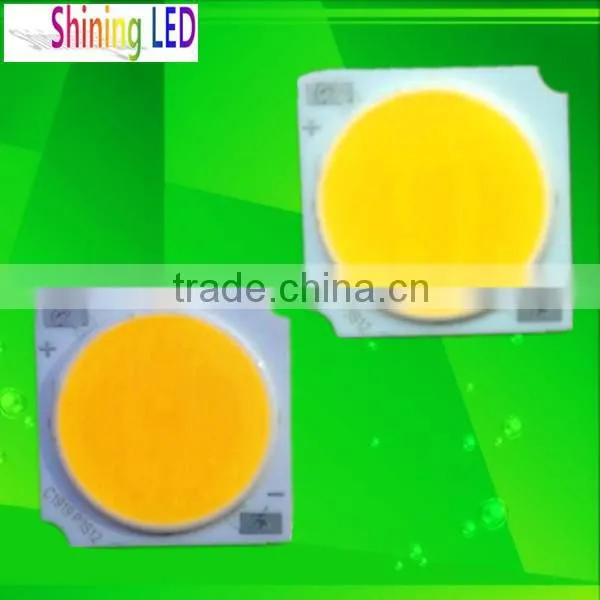

Hi Quality 1919 10W COB LED Chip
Flip Chip LED COB Ceramic Plate Series
| ||||||||
| Item No. | Product Name | Power | CCT(K) | Luminous Flux{LM} @Typ.If) | Voltage(V) | Current (mA) | CRI(Ra) | Luminous MM) |
| SN-COB13.5 | 13.5*13.5 | 9w | 2700-6500 | 810-990 | 54-57.6.6 | 150 | >80 | 11.2 |
| 10w | 2700-6500 | 900-1100 | 60-64 | 150 | >80 | 11.2 | ||
| SN-COB19 | 19*19 | 10w | 2700-6500 | 900-1100 | 36-38.4 | 300 | >80 | 17 |
| 15w | 2700-6500 | 1350-1650 | 90-96 | 150 | >80 | 17 | ||
| 15w | 2700-6500 | 1350-1650 | 36-38.4 | 450 | >80 | 17 | ||
| SN-COB1215 | 1215 | 6w | 2700-6500 | 540-660 | 18-19.2 | 300 | >80 | 10 |
| 6w | 2700-6500 | 540-660 | 36-38.4 | 150 | >80 | 10 | ||
| 8w | 2700-6500 | 720-880 | 24-25.6 | 300 | >80 | 10 | ||
| SN-COB4046 | 4046 | 20w | 2700-6500 | 1600-2000 | 30-32 | 700 | >70 | 26 |
| 30w | 2700-6500 | 2400-3000 | 30-32 | 1050 | >70 | 26 | ||
| 50w | 2700-6500 | 4000-5000 | 30-32 | 1750 | >70 | 26 | ||
| 70w | 2700-6500 | 5600-7000 | 30-32 | 2450 | >70 | 26 | ||
Flip Chip COB LED Aluminum Plate Series
| ||||||||
| Item No. | Product Name | Power | CCT(K) | Luminous Flux{LM} @Typ.If) | Voltage(V) | Current (mA) | CRI(Ra) | Luminous MM) |
| SN-COB13.5 | 13.5*13.5 | 3w | 2700-6500 | 240-300 | 9-9.6 | 300 | >80 | 11.2 |
| 5w | 2700-6500 | 400-500 | 15-16 | 300 | >80 | 11.2 | ||
| 7w | 2700-6500 | 560-700 | 21-22.4 | 300 | >80 | 11.2 | ||
| 9w | 2700-6500 | 720-900 | 27-28.8 | 300 | >80 | 11.2 | ||
| 12w | 2700-6500 | 960-1200 | 36-38.4 | 300 | >80 | 11.2 | ||
| SN-COB19 | 19*19 | 10w | 2700-6500 | 800-1000 | 30-32 | 300 | >80 | 17 |
| 15w | 2700-6500 | 1200-1500 | 45-48 | 300 | >80 | 17 | ||
| 20w | 2700-6500 | 1600-2000 | 60-64 | 300 | >80 | 17 | ||
| 25w | 2700-6500 | 2000-2500 | 75-80 | 300 | >80 | 17 | ||
| 30w | 2700-6500 | 2400-3000 | 90-96 | 300 | >80 | 17 | ||
| SN-COB2011 | 2011 | 3w | 2700-6500 | 240-300 | 9-9.6 | 300 | >80 | 10-11.2 |
| 5w | 2700-6500 | 400-500 | 15-16 | 300 | >80 | 10-11.2 | ||
| 7w | 2700-6500 | 560-700 | 21-22.4 | 300 | >80 | 10-11.2 | ||
| 9w | 2700-6500 | 720-900 | 27-28.8 | 300 | >80 | 10-11.2 | ||
| SN-COB2820 | 2820 | 3w | 2700-6500 | 240-300 | 9-9.6 | 300 | >80 | 17-20 |
| 5w | 2700-6500 | 400-500 | 15-16 | 300 | >80 | 17-20 | ||
| 7w | 2700-6500 | 560-700 | 21-22.4 | 300 | >80 | 17-20 | ||
| 9w | 2700-6500 | 720-900 | 27-28.8 | 300 | >80 | 17-20 | ||
| SN-COB6046 | 6046 | 15w | 2700-6500 | 1200-1500 | 9-9.6 | 300 | >80 | 46 |
| 20w | 2700-6500 | 1600-2000 | 15-16 | 300 | >80 | 46 | ||
| SN-COB7060 | 7060 | 15w | 2700-6500 | 1200-1500 | 45-48 | 300 | >80 | 60 |
| 20w | 2700-6500 | 1600-2000 | 60-64 | 300 | >80 | 60 | ||
| 30w | 2700-6500 | 2400-3000 | 30-32 | 300 | >80 | 60 | ||
| SN-COB4046 | 4046 | 20w | 2700-6500 | 1600-2000 | 30-32 | 700 | >70 | 26 |
| 30w | 2700-6500 | 2400-3000 | 30-32 | 1050 | >70 | 26 | ||
| 50w | 2700-6500 | 4000-5000 | 30-32 | 1750 | >70 | 26 | ||
| 70w | 2700-6500 | 5600-7000 | 30-32 | 2450 | >70 | 26 | ||
Applications of COB LEDs:
Competitive Advantages of our LEDs:
1. Good quality guarantee, 50000 hours lifespan, 2-3 years warranty.
2. Professional engineers and experienced workers.
3. Short delivery time, normally 2-6 working days.
4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
5. Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 ,
2323 , 3030 , 3535 , 1W high power LED , 1-300W integrated LED / COB LED, Diode etc.
