Home > Products > COB LED > Ceramic 5000 - 6000 Lumens 50W COB LED for High Bay Light

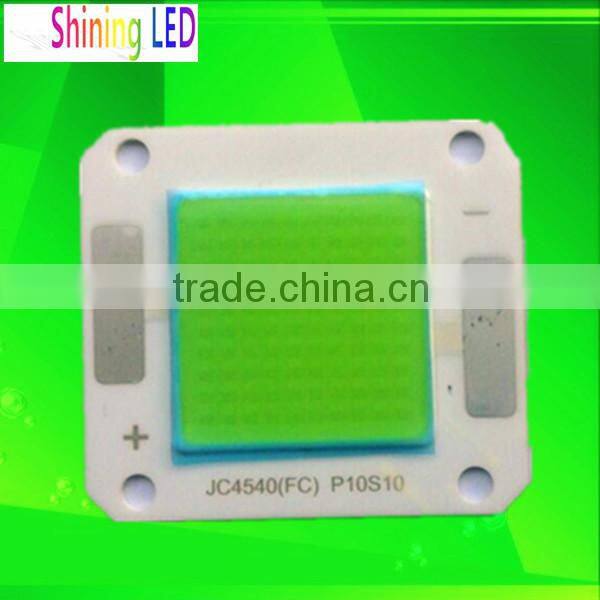

Ceramic 5000 - 6000 Lumens 50W COB LED for High Bay Light

Name: Ceramic 5000 - 6000 Lumens 50W COB LED for High Bay Light
Brand: SHINING
Price: USD $0.06 - 0.6 / Piece

FOB Price

USD $0.06 - $0.6 / Piece

1 Piece(Min.Order)

Product Details

Plastic tray normally.
Package can be customized on request

Ceramic 5000 - 6000 Lumens 50W COB LED for High Bay Light

Flip Chip LED COB Ceramic Plate Series
Item No.	Product Name	Power	CCT(K)	Luminous Flux{LM} @Typ.If)	Voltage(V)	Current (mA)	CRI(Ra)	Luminous Surface( MM)
SN-COB13.5	13.5*13.5	9w	2700-6500	810-990	54-57.6.6	150	>80	11.2
SN-COB13.5	13.5*13.5	10w	2700-6500	900-1100	60-64	150	>80	11.2
SN-COB19	19*19	10w	2700-6500	900-1100	36-38.4	300	>80	17
		15w	2700-6500	1350-1650	90-96	150	>80	17
		15w	2700-6500	1350-1650	36-38.4	450	>80	17
SN-COB1215	1215	6w	2700-6500	540-660	18-19.2	300	>80	10
		6w	2700-6500	540-660	36-38.4	150	>80	10
		8w	2700-6500	720-880	24-25.6	300	>80	10
SN-COB4046	4046	20w	2700-6500	1600-2000	30-32	700	>70	26
		30w	2700-6500	2400-3000	30-32	1050	>70	26
		50w	2700-6500	4000-5000	30-32	1750	>70	26
		70w	2700-6500	5600-7000	30-32	2450	>70	26

Flip Chip COB LED Aluminum Plate Series
Item No.	Product Name	Power	CCT(K)	Luminous Flux{LM} @Typ.If)	Voltage(V)	Current (mA)	CRI(Ra)	Luminous Surface( MM)
SN-COB13.5	13.5*13.5	3w	2700-6500	240-300	9-9.6	300	>80	11.2
		5w	2700-6500	400-500	15-16	300	>80	11.2
		7w	2700-6500	560-700	21-22.4	300	>80	11.2
		9w	2700-6500	720-900	27-28.8	300	>80	11.2
		12w	2700-6500	960-1200	36-38.4	300	>80	11.2
SN-COB19	19*19	10w	2700-6500	800-1000	30-32	300	>80	17
		15w	2700-6500	1200-1500	45-48	300	>80	17
		20w	2700-6500	1600-2000	60-64	300	>80	17
		25w	2700-6500	2000-2500	75-80	300	>80	17
		30w	2700-6500	2400-3000	90-96	300	>80	17
SN-COB2011	2011	3w	2700-6500	240-300	9-9.6	300	>80	10-11.2
		5w	2700-6500	400-500	15-16	300	>80	10-11.2
		7w	2700-6500	560-700	21-22.4	300	>80	10-11.2
		9w	2700-6500	720-900	27-28.8	300	>80	10-11.2
SN-COB2820	2820	3w	2700-6500	240-300	9-9.6	300	>80	17-20
		5w	2700-6500	400-500	15-16	300	>80	17-20
		7w	2700-6500	560-700	21-22.4	300	>80	17-20
		9w	2700-6500	720-900	27-28.8	300	>80	17-20
SN-COB6046	6046	15w	2700-6500	1200-1500	9-9.6	300	>80	46
SN-COB6046	6046	20w	2700-6500	1600-2000	15-16	300	>80	46
SN-COB7060	7060	15w	2700-6500	1200-1500	45-48	300	>80	60
		20w	2700-6500	1600-2000	60-64	300	>80	60
		30w	2700-6500	2400-3000	30-32	300	>80	60
SN-COB4046	4046	20w	2700-6500	1600-2000	30-32	700	>70	26
		30w	2700-6500	2400-3000	30-32	1050	>70	26
		50w	2700-6500	4000-5000	30-32	1750	>70	26
		70w	2700-6500	5600-7000	30-32	2450	>70	26

Applications of COB LEDs:

Competitive Advantages of our LEDs:

Good quality guarantee, 50000 hours lifespan, 2 years warranty.
Professional engineers and experienced workers.
Short delivery time, normally only 2-6 working days.
Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 , 2323 , 3030 , 3535 , 1W high power LED , 1-300W integrated LED / COB LED, Diode etc.

Our Services:

Reply your inquiry in 24 working hours
Well-trained and experienced staffs to answer all your inquiries in fluent English.
Strict quality control procedures before shipment.
Customized design is available.OME and ODM are welcomed
Delivery the goods to our customer all over the world with speed and precision.
