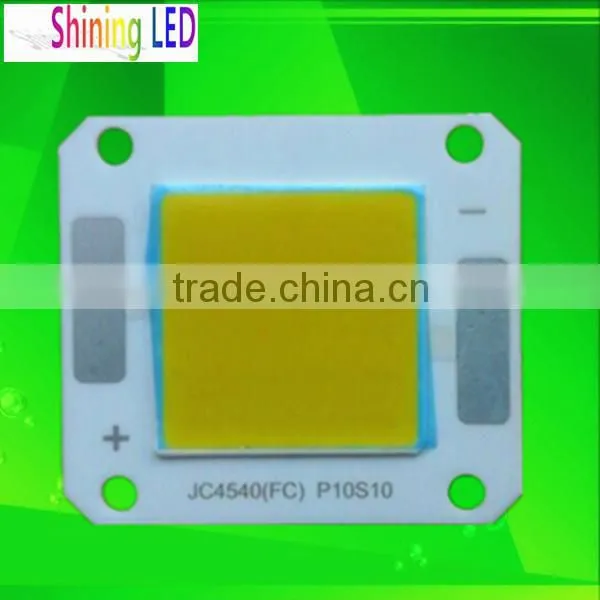

Epistar / Bridgelux Chip 20W COB LED

Name: Epistar / Bridgelux Chip 20W COB LED
Brand: SHINING
SKU: 122436447
Availability: InStock

US$ 0.06 - 0.6 MOQ: 1 Piece

Key Specifications

Model Number:

20W COB LED

Chip Material:

InGaN

Emitting Color:

Cool White

Shenzhen Shining Opto-Electronic Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Model Number 20W COB LED

Chip Material InGaN

Emitting Color Cool White

Luminous Intensity .

Luminous Flux(lm) 1600-2000

Optical Attenuation(%) 0.3

Power Other, 20W

Power Dissipation 20000

Color Rendering Index(Ra) 70

Color Temperature 6000-6500K

Operating Temperature(℃) -20, 60

Storage Temperature(℃) -40, 100

Place of Origin Guangdong, China

Brand Name SHINING

Certification CE

Epistar / Bridgelux Chip 20W COB LED

Flip Chip LED COB Ceramic Plate Series
Item No.	Product Name	Power	CCT(K)	Luminous Flux{LM} @Typ.If)	Voltage(V)	Current (mA)	CRI(Ra)	Luminous Surface( MM)
SN-COB13.5	13.5*13.5	9w	2700-6500	810-990	54-57.6.6	150	>80	11.2
SN-COB13.5	13.5*13.5	10w	2700-6500	900-1100	60-64	150	>80	11.2
SN-COB19	19*19	10w	2700-6500	900-1100	36-38.4	300	>80	17
		15w	2700-6500	1350-1650	90-96	150	>80	17
		15w	2700-6500	1350-1650	36-38.4	450	>80	17
SN-COB1215	1215	6w	2700-6500	540-660	18-19.2	300	>80	10
		6w	2700-6500	540-660	36-38.4	150	>80	10
		8w	2700-6500	720-880	24-25.6	300	>80	10
SN-COB4046	4046	20w	2700-6500	1600-2000	30-32	700	>70	26
		30w	2700-6500	2400-3000	30-32	1050	>70	26
		50w	2700-6500	4000-5000	30-32	1750	>70	26
		70w	2700-6500	5600-7000	30-32	2450	>70	26

Flip Chip COB LED Aluminum Plate Series
Item No.	Product Name	Power	CCT(K)	Luminous Flux{LM} @Typ.If)	Voltage(V)	Current (mA)	CRI(Ra)	Luminous Surface( MM)
SN-COB13.5	13.5*13.5	3w	2700-6500	240-300	9-9.6	300	>80	11.2
		5w	2700-6500	400-500	15-16	300	>80	11.2
		7w	2700-6500	560-700	21-22.4	300	>80	11.2
		9w	2700-6500	720-900	27-28.8	300	>80	11.2
		12w	2700-6500	960-1200	36-38.4	300	>80	11.2
SN-COB19	19*19	10w	2700-6500	800-1000	30-32	300	>80	17
		15w	2700-6500	1200-1500	45-48	300	>80	17
		20w	2700-6500	1600-2000	60-64	300	>80	17
		25w	2700-6500	2000-2500	75-80	300	>80	17
		30w	2700-6500	2400-3000	90-96	300	>80	17
SN-COB2011	2011	3w	2700-6500	240-300	9-9.6	300	>80	10-11.2
		5w	2700-6500	400-500	15-16	300	>80	10-11.2
		7w	2700-6500	560-700	21-22.4	300	>80	10-11.2
		9w	2700-6500	720-900	27-28.8	300	>80	10-11.2
SN-COB2820	2820	3w	2700-6500	240-300	9-9.6	300	>80	17-20
		5w	2700-6500	400-500	15-16	300	>80	17-20
		7w	2700-6500	560-700	21-22.4	300	>80	17-20
		9w	2700-6500	720-900	27-28.8	300	>80	17-20
SN-COB6046	6046	15w	2700-6500	1200-1500	9-9.6	300	>80	46
SN-COB6046	6046	20w	2700-6500	1600-2000	15-16	300	>80	46
SN-COB7060	7060	15w	2700-6500	1200-1500	45-48	300	>80	60
		20w	2700-6500	1600-2000	60-64	300	>80	60
		30w	2700-6500	2400-3000	30-32	300	>80	60
SN-COB4046	4046	20w	2700-6500	1600-2000	30-32	700	>70	26
		30w	2700-6500	2400-3000	30-32	1050	>70	26
		50w	2700-6500	4000-5000	30-32	1750	>70	26
		70w	2700-6500	5600-7000	30-32	2450	>70	26

Applications of COB LEDs:

Competitive Advantages of our LEDs:

Good quality guarantee, 50000 hours lifespan, 2 years warranty.
Professional engineers and experienced workers.
Short delivery time, normally only 2-6 working days.
Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 , 2323 , 3030 , 3535 , 1W high power LED , 1-300W integrated LED / COB LED, Diode etc.
