Home > Electrical & Electronics > Telecommunication & Broadcasting > Repeater > Professional TETRA 400 Signal Repeater

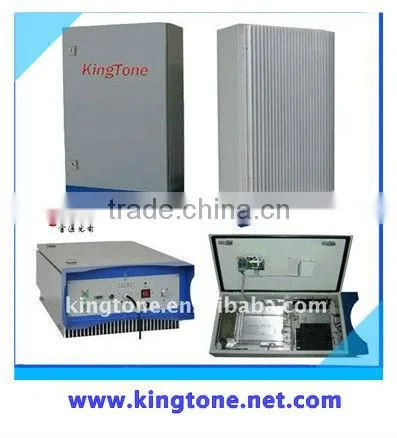

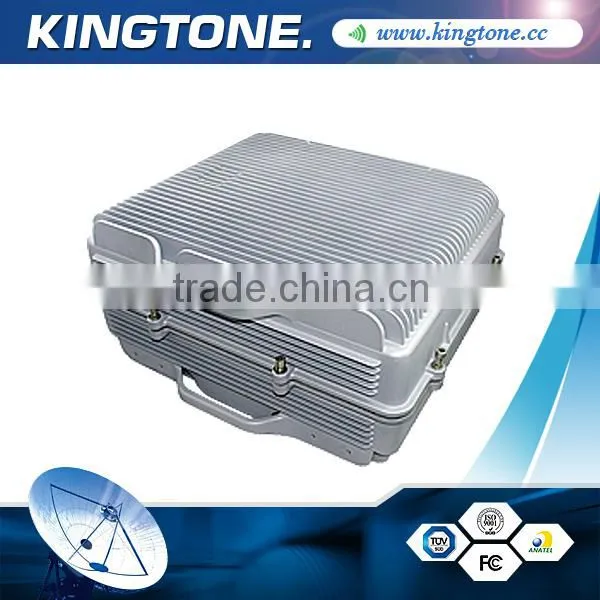

Professional TETRA 400 Signal Repeater

Name: Professional TETRA 400 Signal Repeater
Brand: kingtone
SKU: 122413889

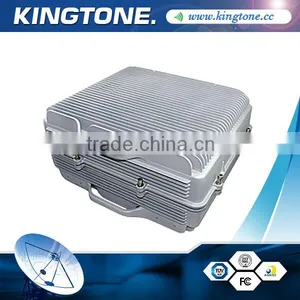

Professional TETRA 400 Signal Repeater thumbnail-1

Professional TETRA 400 Signal Repeater thumbnail-2

Professional TETRA 400 Signal Repeater photo-1

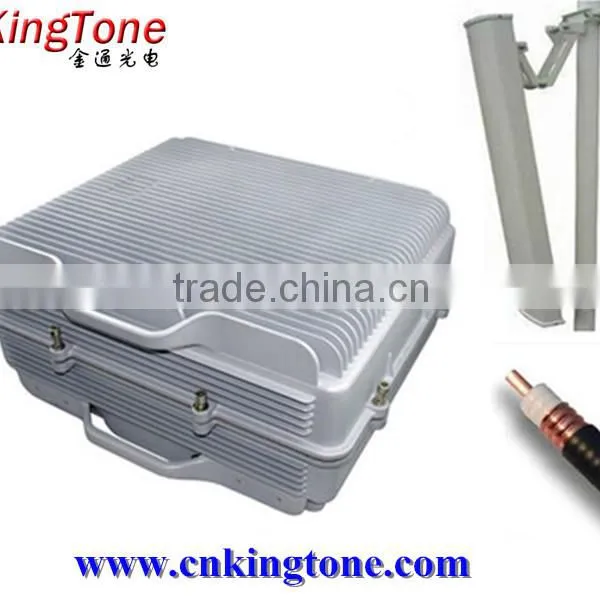

Professional TETRA 400 Signal Repeater photo-2

US$ 1 - 1,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

kingtone

Model Number:

KT-PTB9/43-B19-V1

Contact Supplier Request Quote Chat Now

Quanzhou Kingtone Optics & Electronics Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name kingtone

Model Number KT-PTB9/43-B19-V1

Product Description

TETRA Signal Repeater:
1,Long distance coverage;
2,Professinal production;
3,Best Price;
4,100% support;

Application:

TETRA Signal Repeater to expand signal coverage of signal blind areas where signal is weak or unavailable.

Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc.

Technical Specification:

Items			TETRA RF Band Selective Repeater
Frequency Range		Uplink	806-821MHz
		Downlink	851-866MHz
Output Power		Uplink	Min +23dBm - +33dBm
		Downlink	Min. +30dBm - +43dBm
Working Bandwidth			Various bandwidth is available upon request
Gain			Min. 90dB
AGC Control Range			Min 30dB (+/-2dB)
Gain Control Range			31dB (1dB Step)
VSWR			< 1.5
Ripple in Band			Max +/- 1.5dB
Inter modulation attenuation			≤-45dBc ; ≤-36dBc
Spurious Emissions	9KHz-1GHz		Max -36dBm
	1GHz-12.75GHz		Max -30dBm
RF Connector			N-type Female
I/O Impedance			50 ohm
Noise Figure			Max 5dB
Group Time Delay			Max 5µS
Temperature Range			-25 degree Celsius to +55 degree Celsius
Relative Humidity			Max 95%
MTBF			Min. 100,000 hrs
Power Supply			DC -48V / AC220V (50Hz)/AC110V(60Hz)(+/-15%)
UPS Backup Power Supply (Optional)			6 hours / 8 hours
NMS Monitor Function			Real-time alarm for Door Status,Temperature,Power Supply, VSWR, Output Power, Gain, Uplink ATT, Downlink ATT and etc.
Remote Control Module(Optional)			RS232 + Wireless Modem + Chargeable Li-ion Battery

TETRA Signal Repeater

closed

Enter your detailed requirements to receive an accurate quote

Email to this supplier

1. Q: What is MOQ(mini Order Quantity)

A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.

2. Q: do you accept Customized?

A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs

3. Q: Could you offer free sample to test?

A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.

4. Q: What payment terms you can accept ?

A: We support TT /Western Union /Paypal

Welcome to our website : for more updated information .

welcome you to visit our company website: , for more information .

Quanzhou Kingtone Optics & Electronics Technology Co., Ltd

Add:3th Floor,Bld B,Yucheng Base, Keji Road,Fengze district ,Quanzhou ,Fujian,China.

Email: cary @

Tell: 86 595 28857991

Whatsapp:+86 13506927982

skype: cary.cao4

Web: ;

Kingtone, connecting the world seamlessly !
