5W Repetidor GSM Cell Phone Signal Booster Repeater Amplifier 1900 MHz
Features:
1,Output Power +30dBm - +43dBm for large coverage application;
2,High working gain as Min. 95dB;
3,Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink;
4,RS232 ports provide links to laptop for local setting and monitoring by built-in web interface;
5,Built-in wireless modem (Option) for remote monitoring by SMS or GPRS;
6,Details repeater parameters and status can be monitoring by Control Panel, such as temperature, output power level, gain, ATT, return loss, VSWR etc;
7,Support upgrading firmware remotely by GPRS;
8,High gain linear power amplifier technique with reliable performance;
9,Compact size and light weight, easy to install on wall or pole;
Typical Application:

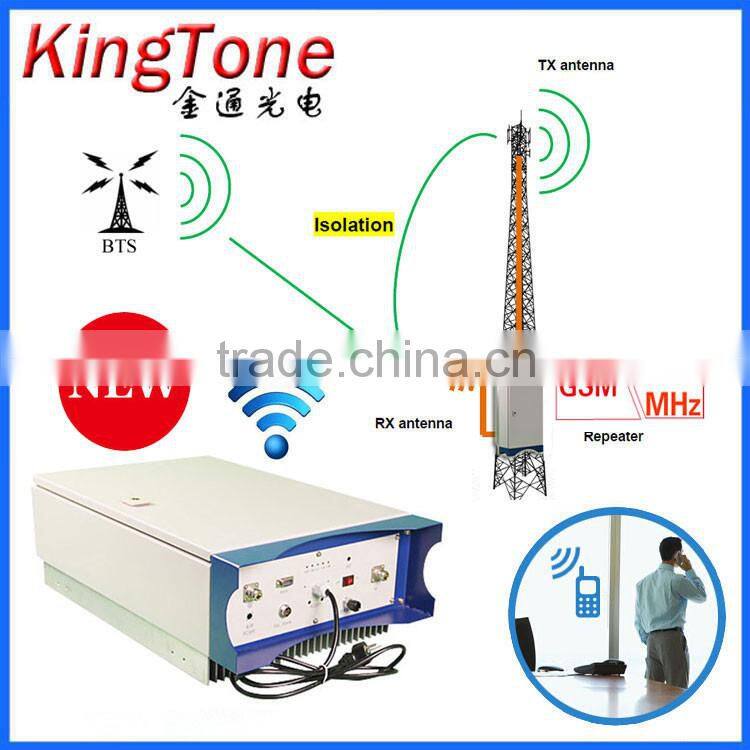

5W Repetidor GSM Cell Phone Signal Booster Repeater Amplifier 1900 MHz to expand signal coverage of signal blind areas where signal is weak or unavailable.
1. Small building indoor covertage
2. High building covertage
3. Tunnel covertage
4. Subway covertage
5. Vehical covertage
6.basement room coverage
Technical Specifications:
Type |
5W Repetidor GSM Cell Phone Signal Booster Repeater Amplifier 1900 MHz |
||||
Frequency |
UL:1850-1910 MHz DL:1930-1990MHz |
||||
Output Power |
33dBm |
37dBm |
40dBm |
43dBm |
|
Gain |
90-95dB |
||||
Gain Adjust Range |
≥30dB;1dB/step |
||||
AGC Range |
≥25dB |
||||
IMD3 |
≤-50dBc |
≤-45dBc |
|||
Noise Figure |
≤5dB |
||||
Ripple in Band |
≤3dB |
||||
Time Delay |
≤10μs |
||||
EVM |
≤12.5%(RMS) |
||||
PCDE |
≤-35 dB |
||||
ACRR |
fc-5MHz |
≤-45dBc/30KHz |
|||
fc+5MHz |
≤-45dBc/30KHz |
||||
fc-10MHz |
≤-50dBc/30KHz |
||||
fc+10MHz |
≤-50dBc/30KHz |
||||
Spectrum mask |
Meet ETSI specification |
||||
Spurious Emission |
9KHz-1GHz:≤-36dBm/30KHz;1GHz-12.75GHz:≤-30dBm/30KHz |
||||
Port Impedance |
50Ω |
||||
VSWR |
≤1.5 |
||||
Monitoring Mode |
Local;Remote(Optional) |
||||
Power Supply |
AC220V(Normal); AC110V or DC48V or Solar Powered(Optional) |
||||
Power consumption |
130W |
190W |
240W |
300W |
|
Mechanical Specifications
Weight |
25kg |
25kg |
35kg |
35kg |
Dimension |
590*370*250 mm |
670*420*210 mm |
||
Installation mode |
Wall installation (normal);Pole installation(optional) |
|||
Connector |
RF:N female; Optical:FC/APC |
|||
Environment Specifications
Case |
IP65(Slave) |
Temperature |
-25~+55°C(Slave) 0°C~+55°C(Master) |
Humidity |
5%~95% (Slave) |
5W Repetidor GSM Cell Phone Signal Booster Repeater Amplifier 1900 MHz
5W Repetidor GSM Cell Phone Signal Booster Repeater Amplifier 1900 MHz
5W Repetidor GSM Cell Phone Signal Booster Repeater Amplifier 1900 MHz
Our present manufacturing service:
1) GSM/CDMA/WCDMA/IDEN/DCS/PCS/LTE and other Repeater, including:
1. Single band Repeater
2. Dual Band Repeater
3. Tri band Repeater
4. Optic Fiber Repeater
5. Wide Band Repeater
6. Channel Selective Repeater
7. ICS Repeater
2)All kind of 1900MHz Repeater Accessories, including:
1.Antenna
2.Splitter
3.Connector
4.Cable
5.Functional Modules
|
Anna Yao
|
|
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd
Add:3th Floor,Bld B,Yucheng Base, Keji Road,Fengze district ,Quanzhou ,Fujian,China.
|
|
Tell: +86 595 28857992 Fax: +86 595 22155502 Whatsapp: +86 13178207380 skype: anna.yao696 Web: |
For more details of 5W Repetidor GSM Cell Phone Signal Booster Repeater Amplifier 1900 MHz,welcome you to contact us now!
