Specifications
CDMA800 RF wireless cell phone repeater 43dBm1.One to eight channel optional
2.High linear PA
3.All-in-one modules.
CDMA800 RF Band Selective repeaters are able to select one or two different bandwidths. Within the frequency range of 1.25-25MHz, the bandwidth can be selected freely. They are especially used in the operating environment of continuous or discrete multi-carrier. RF band selective repeaters can improve the efficiency of amplifying signals, increase the capacity of anti-interference, enhance the network quality, improve the image of cellular operator and bring them more profit.
Main Features
• low noise figure
• flexible network construction
• allpurpose application
• large coverage range and high compatibility
• convenient surveillance
• small size and weight, convenient installation, low power consumption

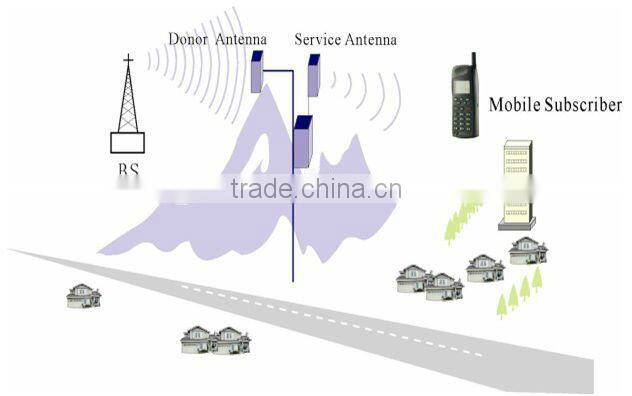

Typical Applications:
Kingtone CDMA RF Band Selective Repeaters are used in the areas without optical fiber sources. They are mainly used in the places below.
Railways Tunnels Scenery Spots
Campuses Hospitals Oil Fields
Roads Sea-routes Towns
Rural Areas Airports Venues
Factories Farms Mountainous Areas
Item |
Technical Data |
Memo |
|||||
Frequency(MHz) |
824-849MHz/869-894MHz |
|
|||||
Max Gain(dB) |
85±3 |
90±3 |
95±3 |
|
|||
Output Power(dBm) |
UL |
30 |
33 |
33 |
37 |
|
|
DL |
30 |
33 |
37 |
40 |
|||
ALC Range(dBm) |
≥25 |
|
|||||
Noise Figuer(dB) |
<5 |
|
|||||
Delay(us) |
<5 |
|
|||||
Frequency Tolerance (ppm) |
<0.05 |
|
|||||
Waveform Quality |
≥0.96 (UL) |
≥0.95 (DL) |
|
||||
Gain Flatness(dB) |
<3 |
|
|||||
Gain Adjust Range(dB) |
>30 |
|
|||||
|
Gain Adjust Range (dB) |
10 dB |
±1.0 |
|
||||
20 dB |
±1.0 |
|
|||||
30 dB |
±1.5 |
|
|||||
Out of Band Rejection(dB) |
<-38 (UL) |
<-44 (DL) |
Offset Work Band>1.98MHz |
||||
VSWR |
1.4 |
|
|||||
Power Supply |
AC220V or AC110V (Optional) |
|
|||||
