10Watt Mini-size Duplex and Single-mode Antenna Radio Station UHF Repeater

Name: 10Watt Mini-size Duplex and Single-mode Antenna Radio Station UHF Repeater
Brand: Kingtone
Availability: InStock

FOB Price

US$ 199 - 299 / Set

1 Set(Min. Order)

Port XIAMEN
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	Kingtone
Model Number	BJ-851

Packaging Details

10w walkie walkie repeater UHF 400-470MHz band repeater
each set come with safety foam

Product Description

10Watt Mini-size Duplex and Single-mode antenna radio station UHF repeater

Quick Details

Place of Origin:	Fujian, China (Mainland)	Brand Name:	BAOJIE	Model Number:	BJ-851
Name:	UHF REPEATER	Output Power:	5-10W	Color:	Black

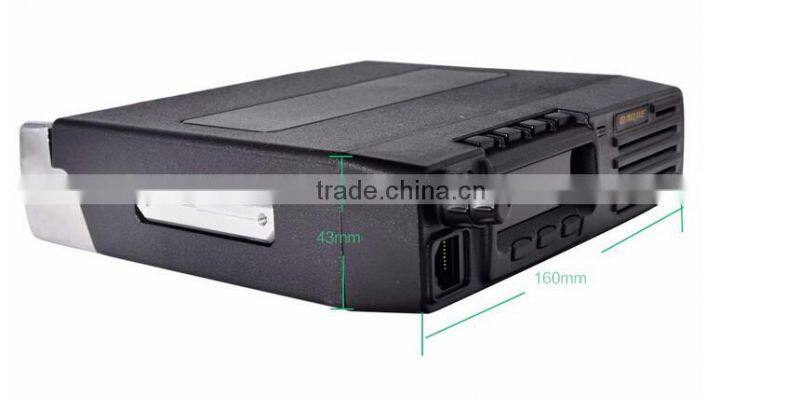

Dimensions:	16043137mm	Frequency Range::	400-470MHz	Frequency spacing:	10MHz
Modulation type::	FM 16F3	Operating voltage:	12 - 14V	Operating temperature range:	-30 to 60°C
Warranty:	1 year for radio body

10Watt Mini-size Duplex and Single-mode antenna radio station UHF repeater

10Watt Mini-size Duplex and Single-mode antenna radio station UHF repeater Features

l You can easily program channel data using the programming software on a PC

l You can recall one of the 16 preset channels using a PF key or the external control wire

l CTCSS/DCS signaling can be programmed on each channel by programming software. The same time it can be decode up to 16 different CTCSS/DCS tone.

l The repeater bandwidth: Wide 25KHz/Narrow: 12.5 kHz (using BJ-851B model)

l Adjust the following functions by programming software:

Setting RX frequency

Setting TX frequency

Setting CTCSS/DCS

10Watt Mini-size Duplex and Single-mode antenna radio station UHF repeater Specification of the walkie talkie repeater :

General


Frequency range	400-470MHz
Frequency spacing	10MHz
Duplex Band width	1MHz
Modulation type	FM 16F3
Operation voltage	12-14V
Standby current: 0.3A/Rx Current: 0.8A/Tx current: ≤3.0A
Frequency stability	±2.5ppm
Channel spacing	12.5KHz/25KHz
weight	Approx 2Kg
Max output power	10W
Receiving end insertion loss	≤2dB
Transmitting end insertion loss	<1.5dN
Transmitting-receiving end isolation	≥65dB
Matched impedance	50 Ω
Receiver
Simplex sensitivity	≥0.3uv
Duplex sensitivity	<3dB
Squelch sensitivity	≥0.2uv
Adjacent channel selectivity	75dB
Audio output power	2.0W
Audio distortion	<5%
transmitter
Output power	10W
Spurious radiation	75dB
Audio distortion	<5%
Max modulation	5kHz

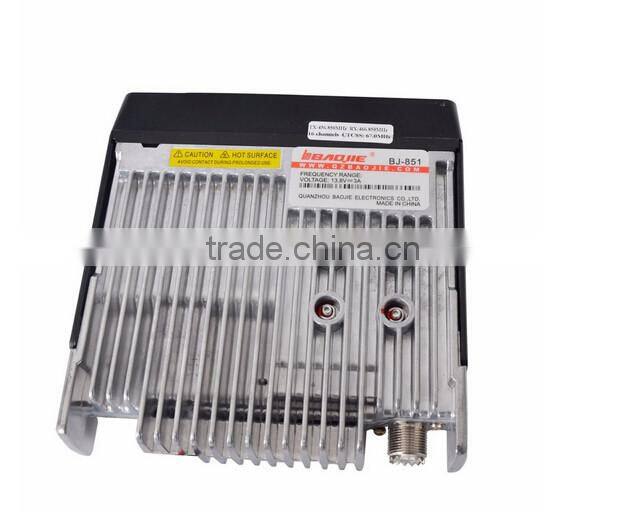

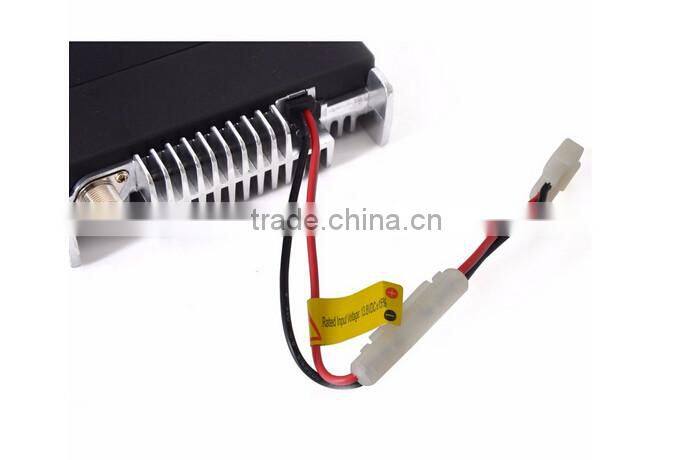

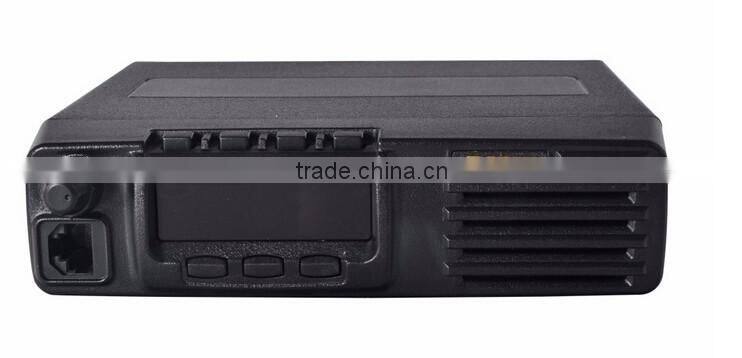

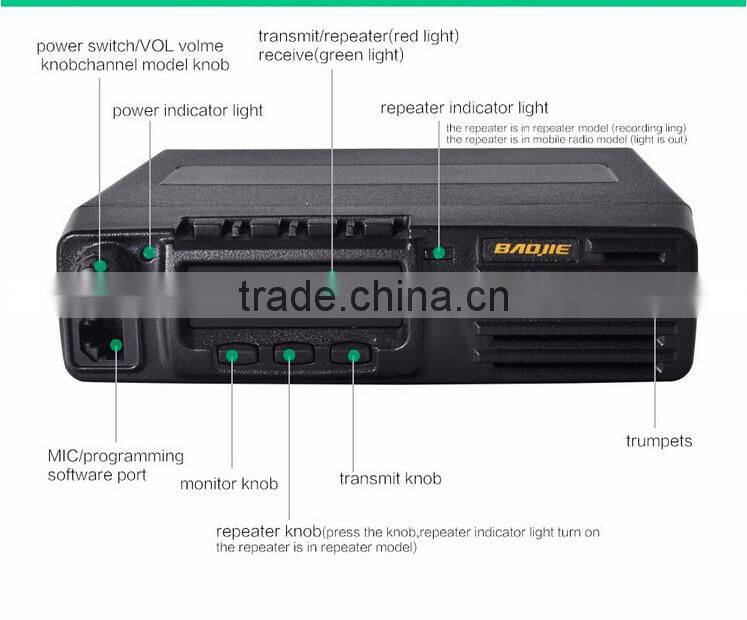

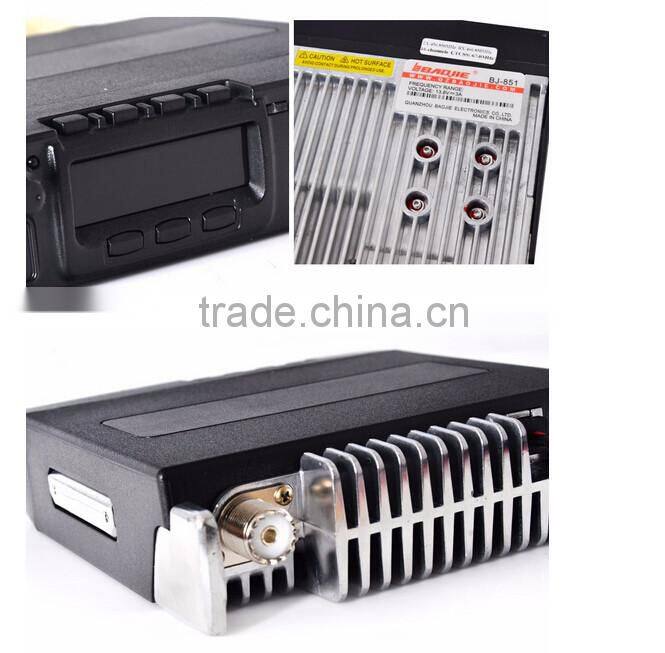

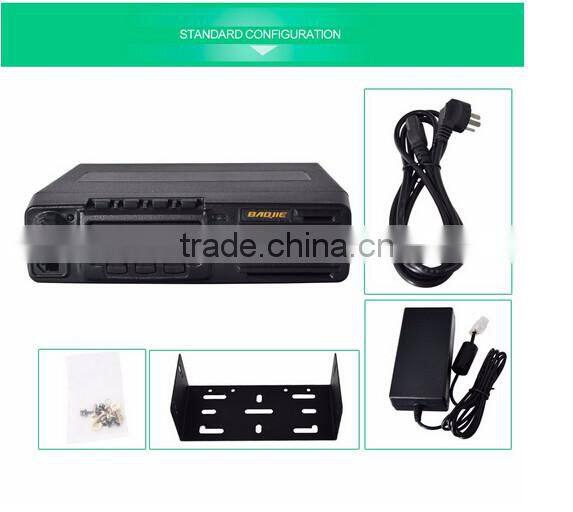

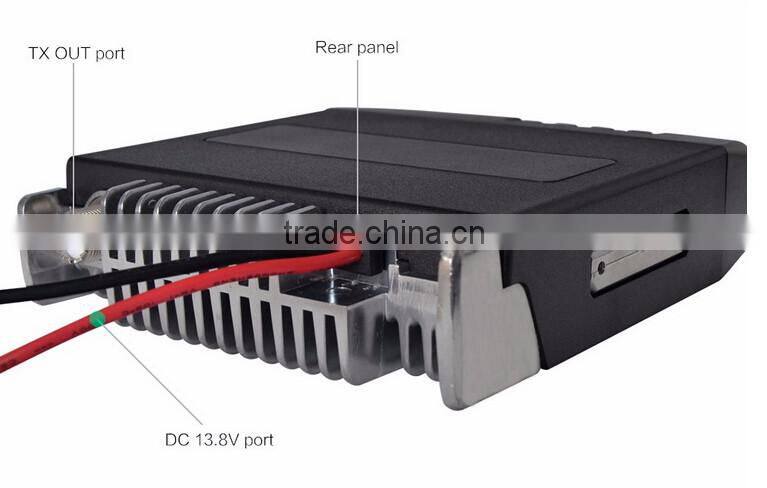

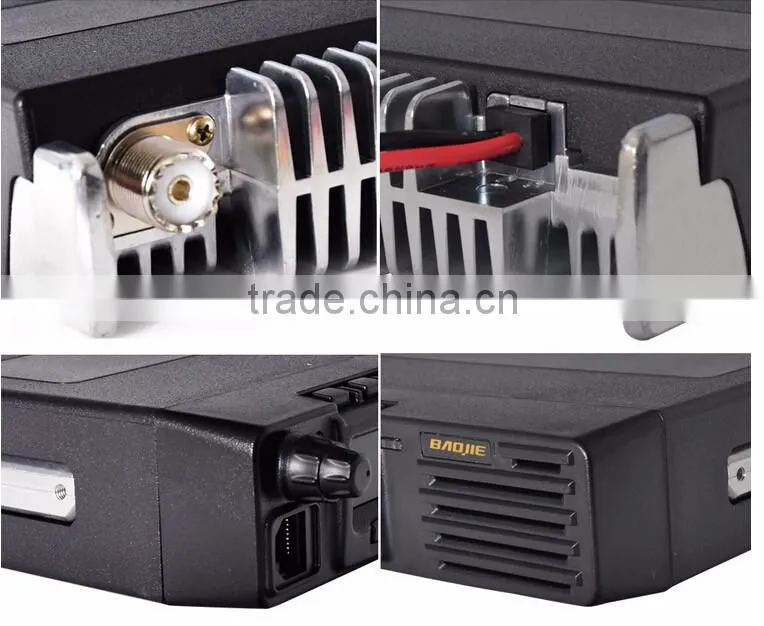

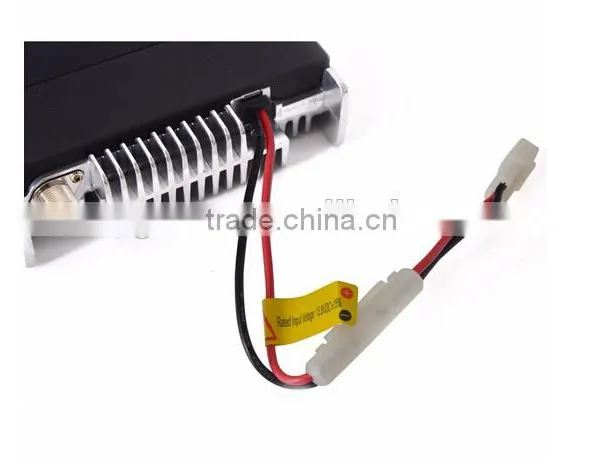

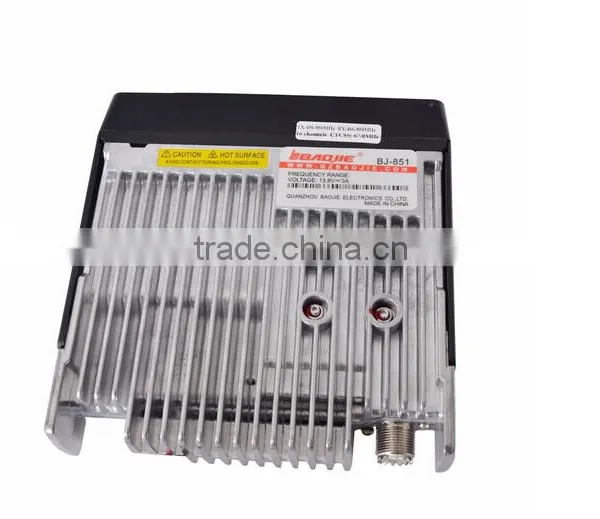

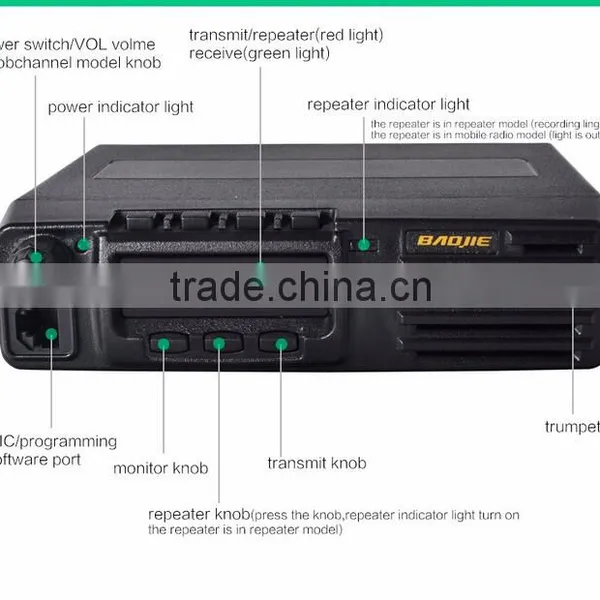

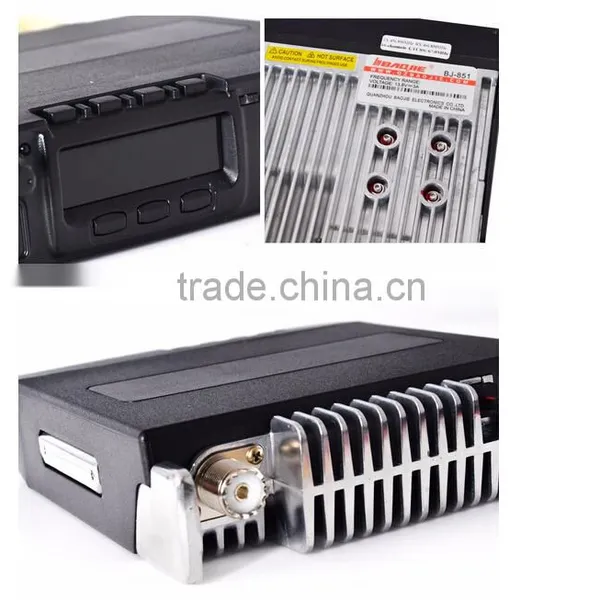

PHotos details of the uhf 400-470mhz mini repeater :10Watt Mini-size Duplex and Single-mode antenna radio station UHF repeater

Kingtone FAQ

1. Q: What is MOQ(mini Order Quantity)

A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.

2. Q: do you accept Customized?

A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs

3. Q: Could you offer free sample to test?

A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.

4. Q: What payment terms you can accept ?

A: We support TT /Western Union /Paypal

Welcome to our website : for more updated information .

Walkie talki Service

Note:
1. Using rechargeable walkie-talkie for the first time, please charge for 16 hours
2.Turn off your computer before removing the battery
3. Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range
4. Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face
5. Please try to use while driving handsfree speaker and the closing words
6. Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized
7. The interphone Do things together with other metal-containing storage
8. Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives
9. Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment
10. Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then
11. In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified)
12. To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe

Approved: CE/FCC

After Sales Service: 1 Year Warranty
