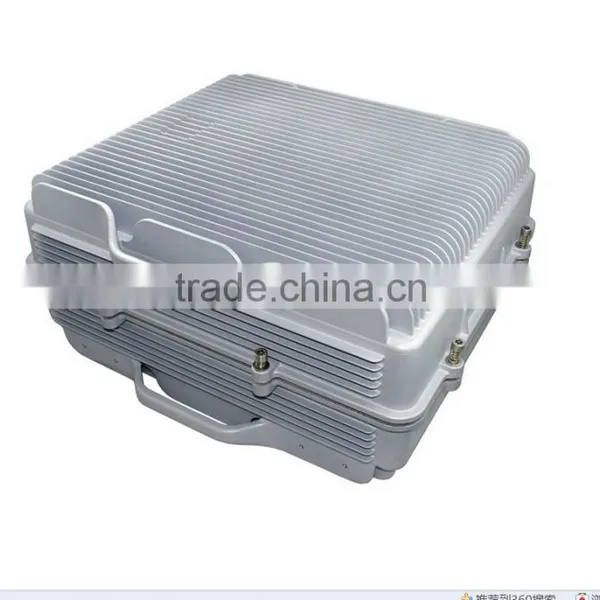

KINGTONE 400-470MHZ uhf Amplifier walkie talkie UHF repeater
- 1000 Set / Sets per Month
- Xiamen
- T/T Credit Card
- vhf repeater , uhf repeater dmr repeater 25watt long range coverage walkie talkie amplifier
- TETRA 400mhz uhf aplifier repeater
- VHF uhf walkie talkie repeater Amplifier
- Walkie Talkie UHF VHF Wireless Bi-directional Signal amplifier
- Kingtone High Power 20W Trunk Amplifier VHF mobile Radio Repeater
- Indoor Buidling Coverage DAS Tetra Trunk Amplifier Repeater
Product Details
Place of Origin: | Fujian, China | Brand Name: | KingTone | Model Number: | KT-PTB9/43-B19-V1 |
Packaging Details
Carton with safty foam ,or as customized.
Product Description
400-470MHZ uhf Amplifier walkie talkie repeater Product Description
TETRA cable-access MDAS Fiber Optic Repeater is used to enlarge the signal of TETRA equipment. The Master Optical Unit System captures the BTS signal of TETRA and converts it into optic signal and transmits the amplified signal to the Remote Optical Unit via fiber optic cables. The Remote Optical Unit will reconvert the optic signal into TETRA signal and then converse Downlink Amplifier and provide the signal to the areas where net work coverage is inadequate.
And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction. The distribution system by our company independent research and development is composed by Master Optical Unit and Remote Optical Unit. The internal module is integrated, the highly integrated technology is improve the stability of the equipment.
400-470MHZ uhf Amplifier walkie talkie repeater Product Features
High level, high availability, convenient for maintain;
Internal adopt intelligent monitoring, is convenient to locate the faults for maintain;
Low power consumption, excellent heat dissipation;
High linearity PA, high system gain;
Local and remote monitoring;
Compact size, flexible for installation and relocation;
ETSI compatible
MOU RF Specification | |||||
Items | Downlink | Uplink | Memo | ||
Working Frequency | 350MHz Band | 350-357MHz | 360-367MHz | Need to specify the band when place order | |
420MHz Band | 410-417MHz | 420-427MHz | |||
500MHz Band | 500-507MHz | 510-517MHz | |||
RF Input level range for each RF input port | -5dBm~0dBm | / | Recommended input level: 0dBm | ||
Max RF input without damage | 10dBm | / | Caution: over input power may cause permanently damage | ||
RF Output Level | / | -5±2dBm |
| ||
Spurious emissions and Wideband noise | Discrete spurious: | 9kHz-1GHz /BW:30KHz | ≤-36dBm | ≤-36dBm |
|
1GHz-4GHz /BW:1MHz | ≤-30dBm | ≤-30dBm |
| ||
Wideband noise | 100 kHz – 250 kHz | -75dBc | -78dBc | NOTE: frb denotes the frequency offset corresponding to the near edge of the receive band or 5 MHz whichever is greater. | |
250 kHz – 500 kHz | -80dBc | -83dBc | |||
500 kHz – frb | -80dBc | -85dBc | |||
>frb | -100dBc | -100dBc | |||
Radiated emissions | 30 MHz to 1 GHz | ≤-36dBm |
| ||
1 GHz to 4 GHz | ≤-30dBm |
| |||
Intermodulation attenuation (dBc) | RBW30 kHz | ≤-36dBm | The interfering signal shall be unmodulated and have a frequency offset of at least 500 kHz from the carrier frequency. The power level of the interfering signal shall be 50 dB below the power level of the modulated output signal from the transmitter under test | ||
Out of band gain | 50 kHz Frequency offset from the - 6 dB point | 75 dB |
| ||
75 kHz requency offset from the - 6 dB point | 70 dB |
| |||
125 kHz requency offset from the - 6 dB point | 65 dB |
| |||
250 kHz requency offset from the - 6 dB point | 32 dB |
|
400 uhf mobile signal link repeater
400 uhf mobile signal link repeater Applications:
To expand signal coverage of signal blind areas where signal is weak or unavailable.
Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc.
400 uhf mobile signal link repeater Function:
To amplify all signals in the whole band
Wireless repeater
Software control
Easy to install on wall or pole
400 uhf mobile signal link repeater Features:
1.Monitoring software can be upgraded locally or remotely.
2.Wide dynamic range, low power consumption and noise figure. Protection from over voltage, over current and over temperature
3.High isolation from uplink to downlink to improve high stability.
4.High reliability and MTBF≥100,000 hours
5.Perfect remote and local network monitoring function.
6.Avoid interference from co-frequency
7.Enlarge the coverage area with omni directional antenna
8Extend the signal distance of base station
9.Backup batteries
10.Main module self-test and auto alarm.
11.Door open alarm
12ALC(auto level control) ,etc.
400 uhf mobile signal link repeater Technical Specification:
