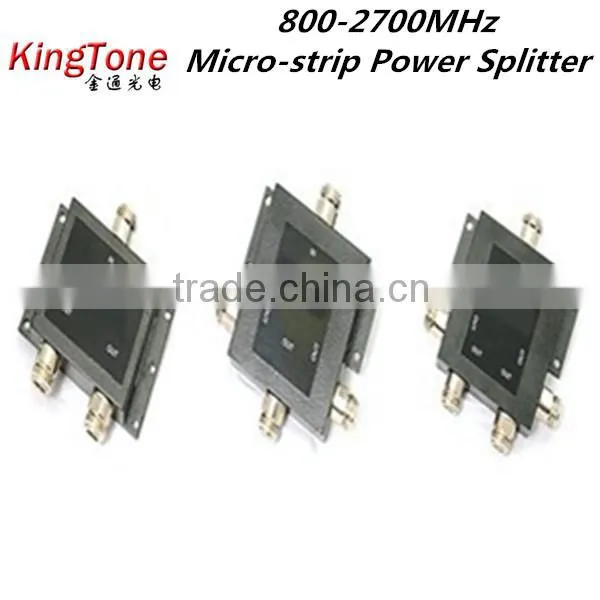

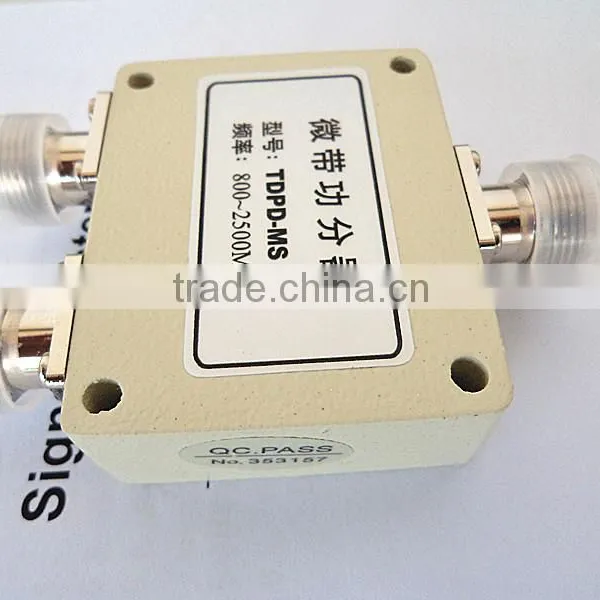

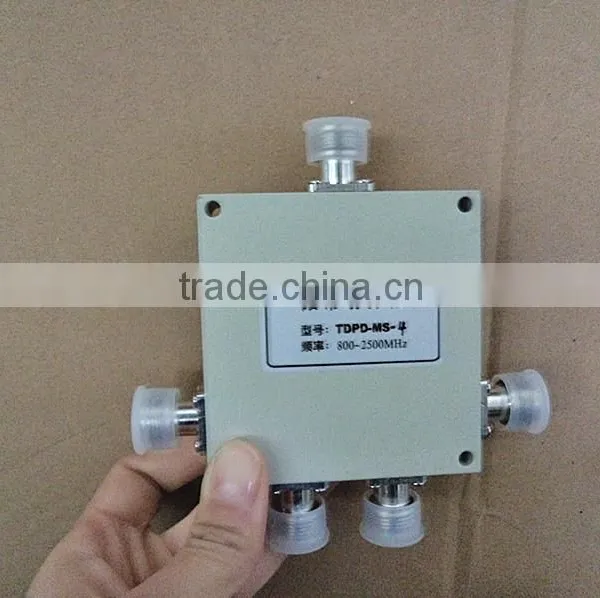

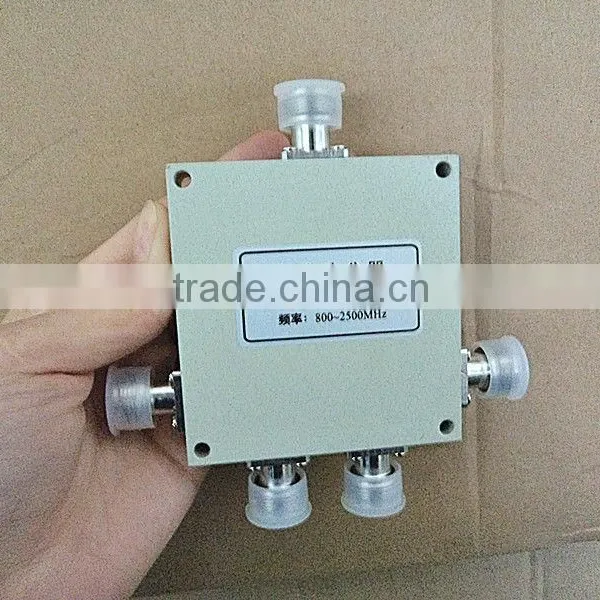

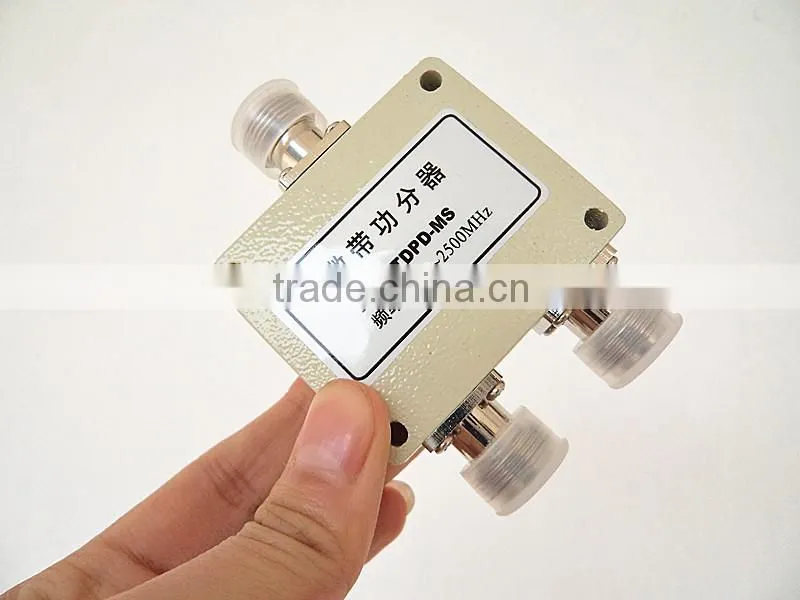

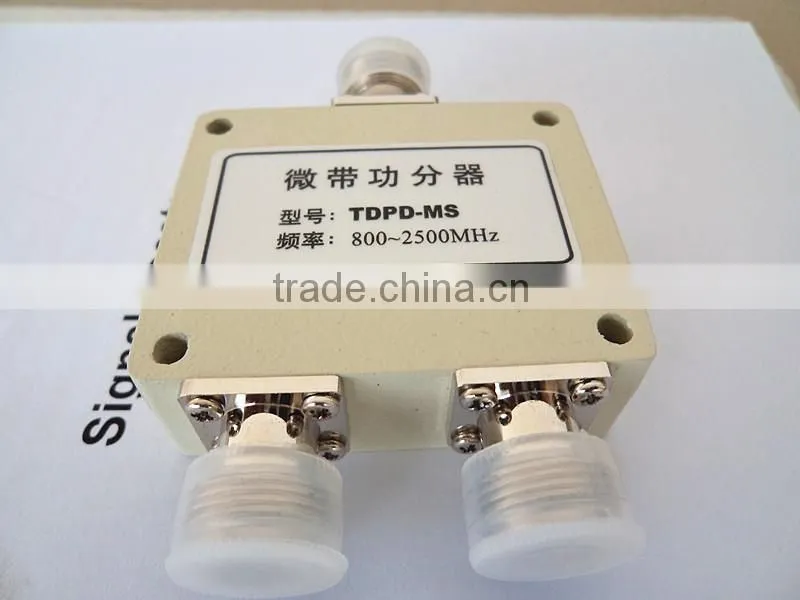

Micro strip Power Divider -2 way/ 3way/ 4way High Power Splitter/Distributer
Specifications
Power Splitter
1.Power splitter factory direct.
2.High isolation and low VSWR.
3.Can do OEM service.
RF power splitter 2way Description:
Power splitter is a kind of all input signal energy will be divided into two or more signals energy output devices.
Power splitters/dividers are used in a wide variety of applications and can satisfy almost any requirement where a signal needs to be distributed or combined. our compact, microstrip splitter/divider/combiners provide minimal insertion loss while delivering high isolation between output ports with exceptional phase and amplitude balance.
RF power splitter 2way Specification:
Product Name |
Power Splitter – 2/3/4way |
MODEL |
KT-514 |
Frequency Range |
800-2500MHz |
Attenuation |
6.0dB |
Insertion Loss |
0.7dB |
Isolation |
≥15dB |
VSWR |
1.25 |
Max Power |
50W |
Impedance |
50Ω |
Port Connectors |
N-Female |
Temperature range |
-35°C~60°C |
Relative Humidity |
5%-95% |
Color |
Black-plated |
Weight |
170g |

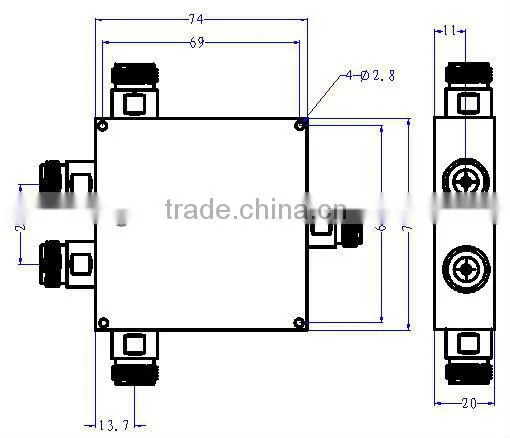

Product Structured Chart:
Our present manufacturing service:
1) GSM/CDMA/WCDMA/IDEN/DCS/PCS/LTE and other Repeater, including:
1. Single band/
2. Dual band/
3. Tri band/
4. Optic Fiber/
5. Band or frequency selective
6. Band or Frequency Shifting
7. series Trunk Amplifiers.
2)All kind of GSM Repeater Accessories, including:
1.Antenna
2.Splitter
3.Connector
4.Cable
5.Functional Modules
3)Welcome to further discuss!!! Provide telecom solutions!
