200w 6-30dB cavity coupler recessed couplers
In microwave systems, often need to microwave power in proportion into several road all the way, this is the power allocation problem.Realizing the function of the component is called power distribution components namely coupler, mainly includes: directional coupler and power divider and various branches of microwave devices.These components are generally linear multi-port reciprocal network

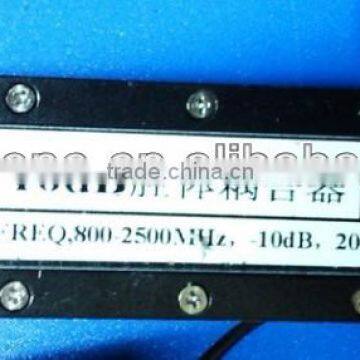

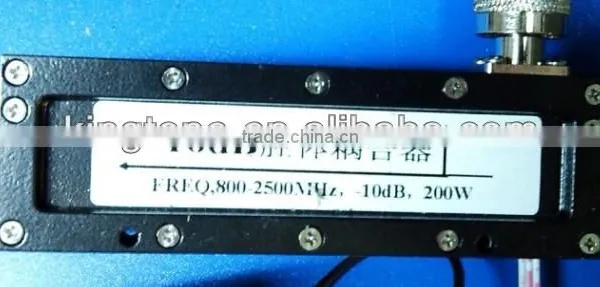

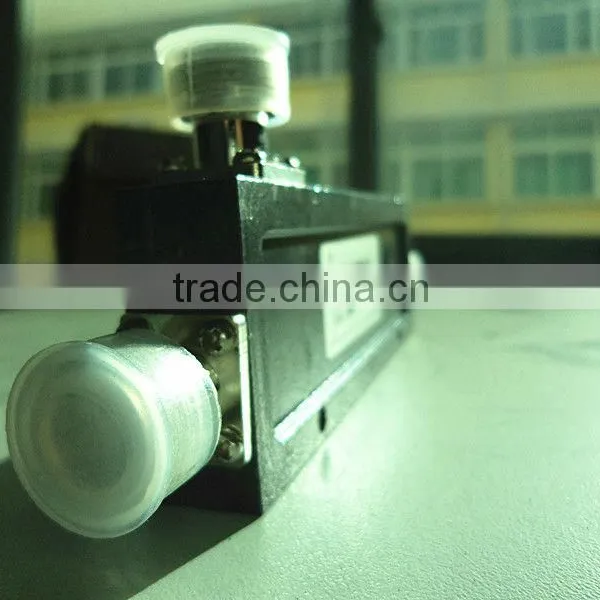

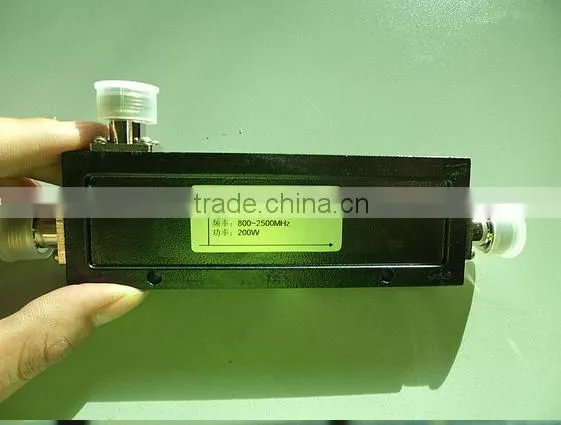

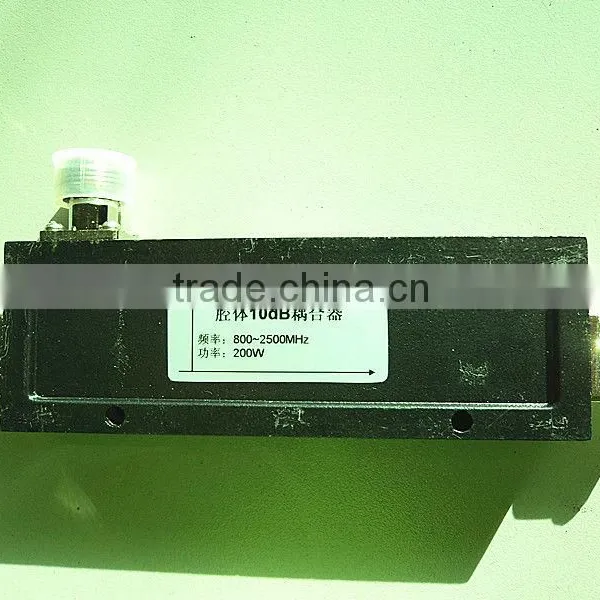

Cavity Coupler
1) 6dB/10dB coupler
2) 20dB/30dB coupler
3) for mobile signal repeater
4. 800-2500MHz support cdma,gsm,dcs,wifi,system
5. low loss N connector
6. welcome to OEM
800-2500MHz 10dB rf cavity directional coupler Electrical Specification
| Model | KT200-6N KT200-10N KT200-20N KT200-30N |
| Frequency Range | 800-2500MHZ |
| Coupling Value | 6dB 10dB 20dB 30dB |
| Coupling Loss | 1.26dB 0.46dB 0.04dB 0.004dB |
| Insertion Loss | <=0.2dB |
| VSWR | <=1.25 |
| Intermodulation | >=140dBc (+43dBm*2) |
| Isolation | >=20dB |
| Power handing | 200W |
| Impedance | 50Ω |
| Port Conncetors | N-female |
| Temperature range | -35°c-60°c |
Our present manufacturing service:
1) GSM/CDMA/WCDMA/IDEN/DCS/PCS/LTE and other Repeater, including:
1. Single band/
2. Dual band/
3. Tri band/
4. Optic Fiber/
5. Band or frequency selective
6. Band or Frequency Shifting
7. series Trunk Amplifiers.
2)All kind of GSM Repeater Accessories, including:
1.Antenna
2.Splitter
3.Connector
4.Cable
5.Functional Modules
3)Welcome to further discuss!!! Provide telecom solutions!
