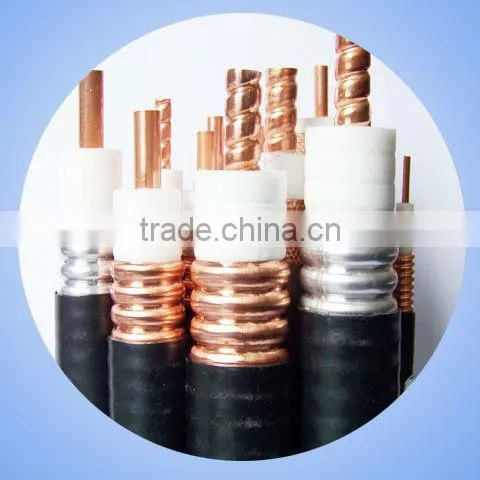

1/2" RF Feeder Cable for BTS RF repeater
- 1000000 Meter / Meters per Month
- XIAMEN
- T/T Credit Card
-
Tri-band combiner 900 1800 2100 frequency tri-band combiner
-
Microstrip Power Splitter 800~2500MHz 3 way Power Splitter
-
800~2500MHz N-Female RF Power Splitter 4 way Power Splitter
-
800~2500MHz 2/3/4 way Power Splitter for indoor signal booster
-
GSM800-2500Mhz 2/3/4Way Cavity power dividers /RF Power Splitter
-
50W N Male/Female Termination Load (Dummy Load)
Product Details
| Place of Origin: | Fujian, China | Brand Name: | KINGTON | Model Number: | kt-1/2 cable |

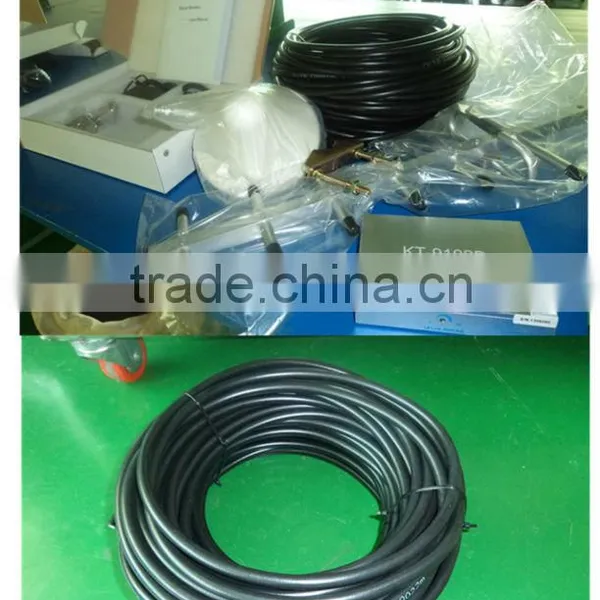

Packaging Details

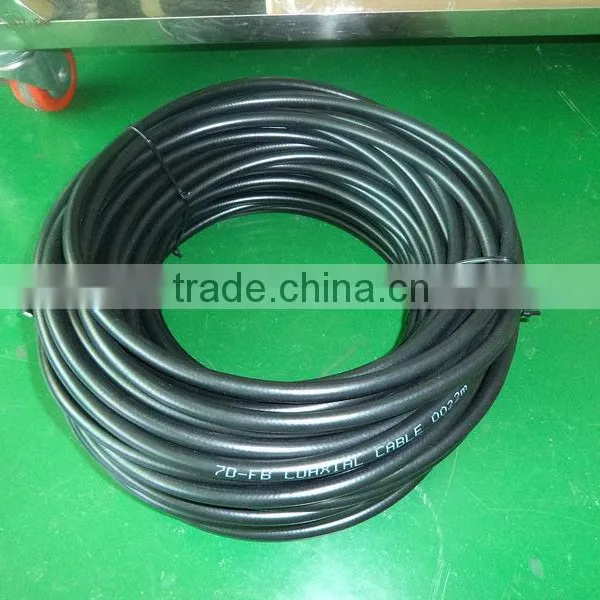

500m per drum,according to the customers' demand
Product Description
| Number of Conductors: | 2 | Inner Conductor: | Copper tube | ||
| Insulation: | PE | Outer conductor: | Annular copper tube | Jacket: | PE or LS0H |
| Attenuation: | 7.15dB/100m@900MHz, 10.52dB/100m@1800MHz, | VSWR: | 1.10 | Characteristic impedance: | 50 ohms |
| Capacitance: | 76 pF/m | Velocity ratio: | 88% | Frequency band: | 30Mhz-3000MHz |
Packaging & Delivery
| Packaging Detail: | 500m per drum,according to the customers' demand |
| Delivery Detail: | 1-10days |
Specifications
RF Feeder Cable
1)Size:4.8mm12mm13.9mm16mm
2)IS9001:2008,RoHs,TLC
3)User:Huawei,ZTE,USA,Germany
Best RF Cable
Model Number: 1/2" RF 50 Ohm Feeder Coaxial Cable

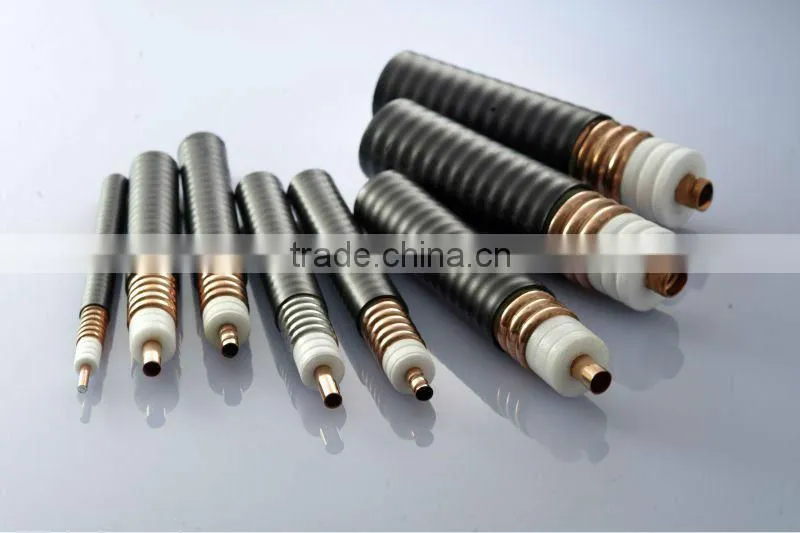

Construction Characteristics:
High physically foaming insulation, copper tape formed, welded and corrugated to manufacture the outer conductor.
Advantages:
Low attenuation, low standing wave, high shielding, damp-proof gas free maintenance, flexible, high anti tensile strength.
Application Range:
Broadcast and television, microwave telecommunication, military use, aerospace, vessel or other circumstance where RF cable is needed.

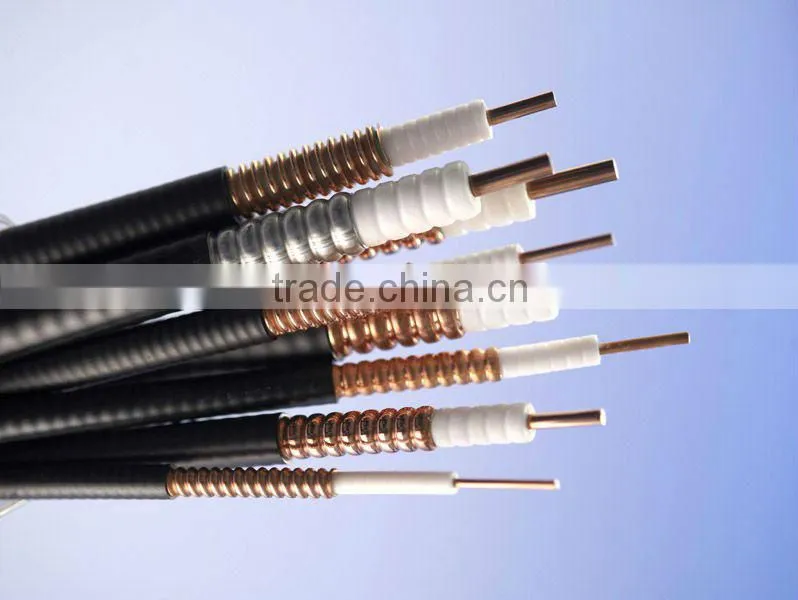

Inner Conductor: Smooth Copper Tube/ Copper Coating Aluminum/ Helix Copper Tube
Dielectric : Physical Foaming Polyethelene(PE)
Outer Conductor: Corrugated Copper Tube/ Annularity Copper Tube/ Helix Copper Tube
Jacket : Black PE or Low Smoke Halogen-free Fire-retardant
You can choose:
| Type | Characteristic Impendance(Ohm) | Inner Conductor (mm) | Insulation (mm) | Outer Conductor (mm) | Outer Sheath (mm) | Attenuation at 900MHz (dB/100m) | Attenuation at 1800MHz (dB/100m) |
| 1/4" SF | 50 | 1.90 | 5.00 | 6.40 | 7.60 | 18.40 | 27.10 |
| 1/4" | 50 | 2.60 | 6.00 | 7.70 | 8.90 | 13.10 | 19.10 |
| 3/8" SF | 50 | 2.60 | 7.00 | 9.00 | 10.20 | 13.50 | 19.70 |
| 3/8" | 50 | 3.10 | 8.00 | 9.50 | 11.10 | 10.90 | 16.00 |
| 1/2" SF | 50 | 3.55 | 9.00 | 12.00 | 13.70 | 10.00 | 14.50 |
| 1/2" | 50 | 4.80 | 12.00 | 13.90 | 16.00 | 7.15 | 10.52 |
| 5/8" | 50 | 7.00 | 17.00 | 19.70 | 22.00 | 5.07 | 7.54 |
| 7/8" F | 50 | 9.40 | 22.00 | 24.90 | 27.50 | 4.05 | 6.03 |
| 7/8" SF | 50 | 9.40 | 22.00 | 24.90 | 27.50 | 4.30 | 6.30 |
| 7/8" | 50 | 9.00 | 22.00 | 24.90 | 27.50 | 3.87 | 5.84 |
| 7/8" Low Loss | 50 | 9.45 | 23.00 | 25.40 | 28.00 | 3.68 | 5.45 |
| 1-1/4" | 50 | 13.10 | 32.00 | 35.80 | 39.00 | 2.82 | 4.27 |
| 1-5/8" | 50 | 17.30 | 42.00 | 46.50 | 50.00 | 2.41 | 3.70 |
Electricial Performance:
