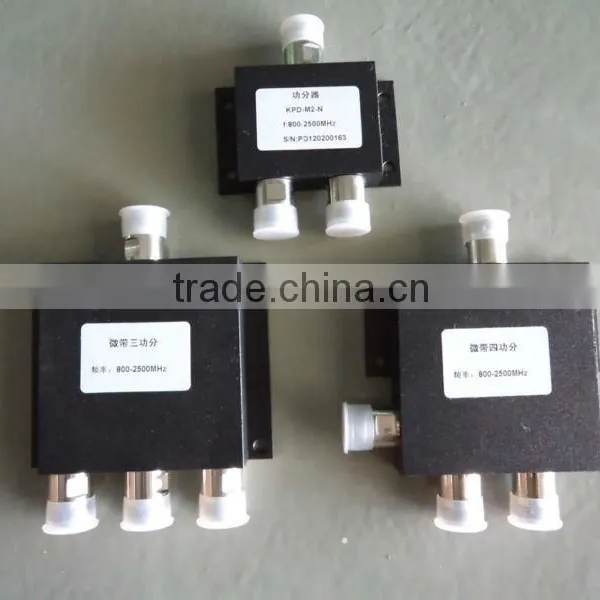

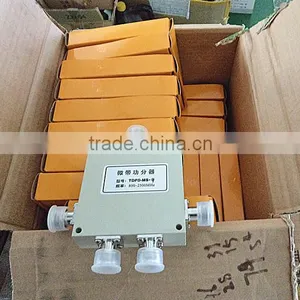

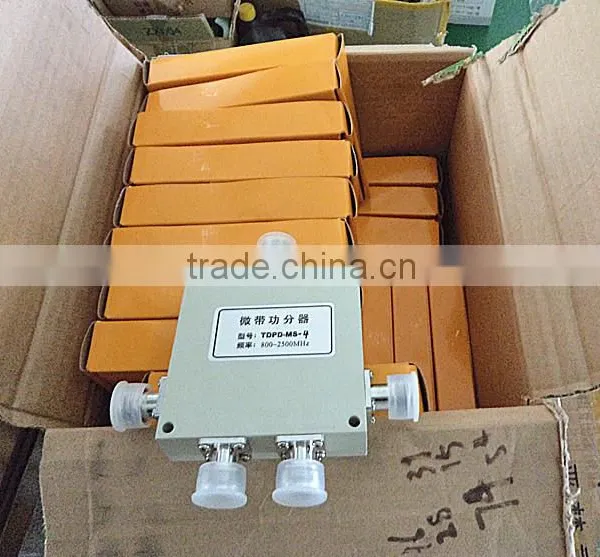

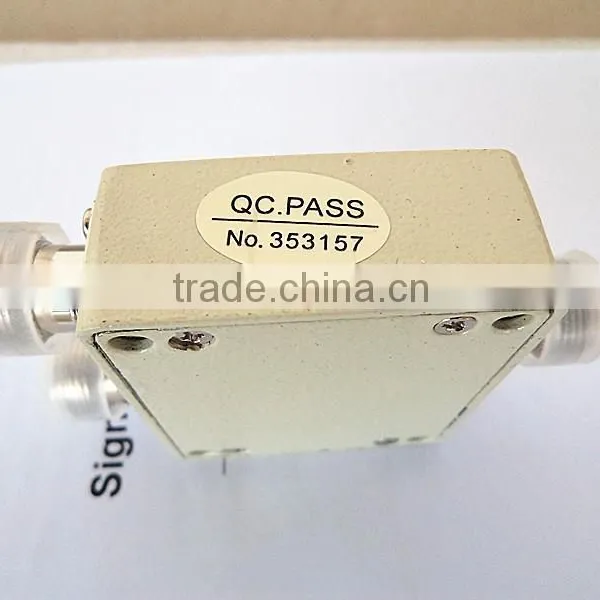

Help Center800~2500MHz 2/3/4 Way Power Splitter for Indoor Signal Booster
Related Products
-
GSM800-2500Mhz 2/3/4Way Cavity Power Dividers /RF Power SplitterUS$ 1 - 19MOQ: 10 Pieces -
50W N Male/Female Termination Load (Dummy Load)US$ 1 - 99MOQ: 2 Pieces
-
Cheap Adaptor, BNC Antenna ,SMA Connector,Antenna Adapter ,US$ 0.1 - 1.85MOQ: 100 Pieces
-
50W Load N Male/Female Dummy LoadNegotiableMOQ: 1 Piece
-
100W 50 Ohm DC-3GHz DIN Female 7/16 Female RF Dummy LoadNegotiableMOQ: 1 Piece
Quick Details
- Place of Origin: Fujian, China (Mainland)
- Brand Name: Kingtone
- Model Number: KT-514
- Frequency: 800-2500MHz
- Insertion Loss: 0.7dB
- Isolation: ≥15dB
- Max Power: 50W
Packaging & Delivery
| Packaging Details: | Each one into gift box; |
|---|---|
| Delivery Detail: | 3 working days after received payment |
<:article id=richTextContainer>
Specifications
Power Splitter
1.Power splitter factory direct.
2.High isolation and low VSWR.
3.Can do OEM service.

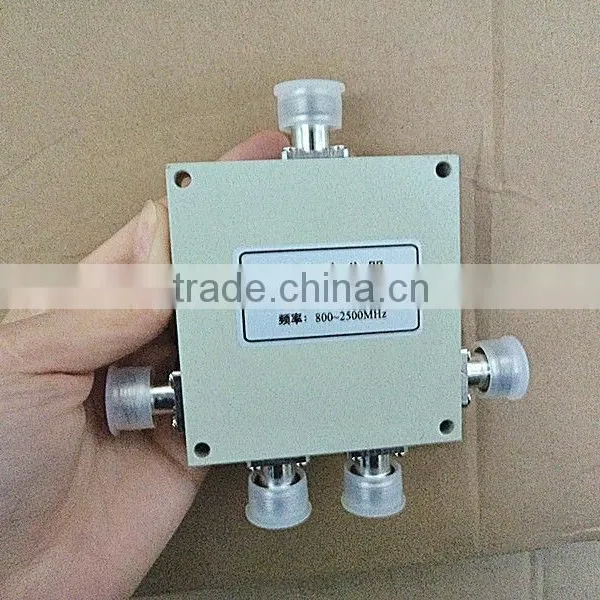

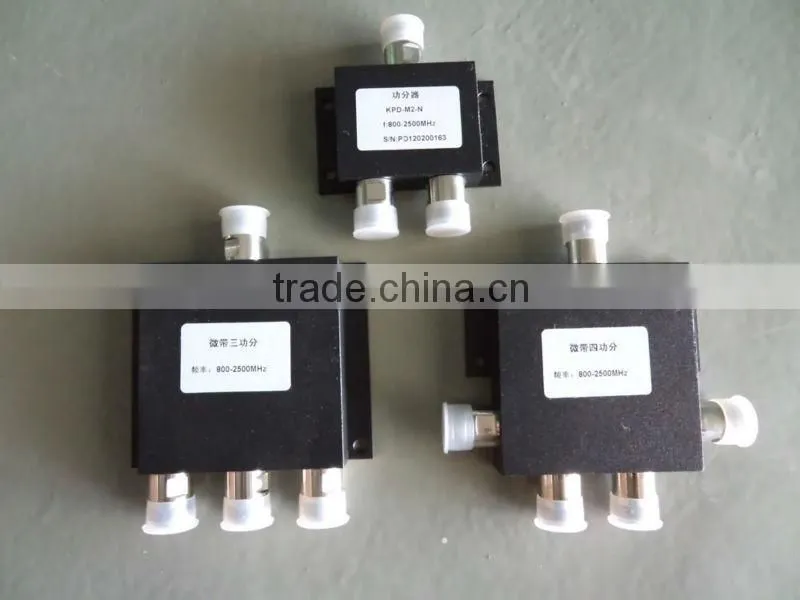

power splitter 4-way Description:
Power splitter is a kind of all input signal energy will be divided into two or more signals energy output devices.
Power splitters/dividers are used in a wide variety of applications and can satisfy almost any requirement where a signal needs to be distributed or combined. our compact, microstrip splitter/divider/combiners provide minimal insertion loss while delivering high isolation between output ports with exceptional phase and amplitude balance.
power splitter 4-way Specification:
Product Name |
Power Splitter – 2/3/4way |
MODEL |
KT-514 |
Frequency Range |
800-2500MHz |
Attenuation |
6.0dB |
Insertion Loss |
0.7dB |
Isolation |
≥15dB |
VSWR |
1.25 |
Max Power |
50W |
Impedance |
50Ω |
Port Connectors |
N-Female |
Temperature range |
-35°C~60°C |
Relative Humidity |
5%-95% |
Color |
Black-plated |
Weight |
170g |
Product Structured Chart:
Frequency range list for our repeaters :
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/ |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/ |
Our repeater support above frequency range .
Our present manufacturing service:
1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
3. Tri-band repeater of GSM/DCS/WCDMA
4,Trunk Amplifier
5. All kind of Antenna/Splitter/Connector/Cable
Question: I work in an office building where my cell phone coverage in certain areas, including my office, is non-existent or spotty at best. How can I improve my coverage?
Answer: The requirement for reliable, always-on cell phone coverage within the office environment is increasing dramatically. It is not unusual to encounter trouble spots within a building where cell phone signals are weak or non-existent.
Kingtone repeater provides affordable and clear coverage to those trouble spots. The unit can be easily deployed and provides a coverage range of up to 100,000 square feet. Multiple units can be easily deployed to cover office areas and working locations.
Kingtone repeater can be deployed even without access to the roof or outside.
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : for more updated information .
welcome you to visit our company website: , for more information .
|
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd
Add:3th Floor,Bld B,Yucheng Base, Keji Road,Fengze district ,Quanzhou ,Fujian,China.
|
|
Email: cary @ Tell: 86 595 28857991 Whatsapp:+86 13506927982 skype: cary.cao4 Web: ; |
