2015 Newly Signal Booster ICS WCDMA2100MHz pico repeater without antennas and cable (Free installed)
WCDMA Pico ICS Repeater provides the most cost-effective solution to improve user experience of high quality WCDMA access in indoor environment. Equipping innovative plug-and-play enabling technologies, general users are able to easily install by themselves without any professional skill.

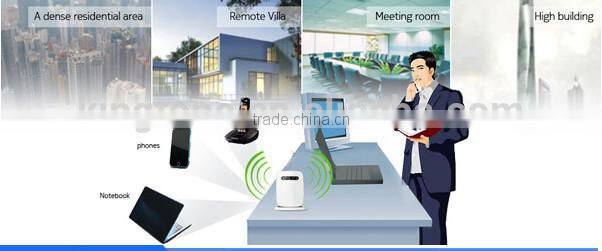

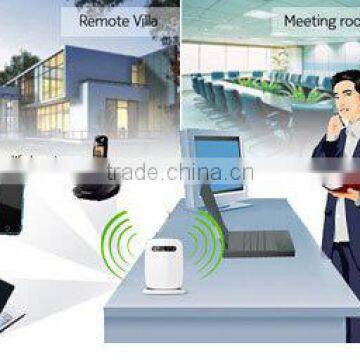

As a quick solution of covering the area with the weak mobile communication signal, the Pico ICS repeater developed with the ICS technology is equipped with the operating when powered on , dispensing with the configuration, with its typical application scenes including such indoor places as the residences, meetings, business, offices, etc.
Features
1 Built-in antenna(5dBi), small size and convenient for installation.
2 The donor antenna can be chosen the built-in or outlay according to the difference of the environment.
3 GSM system supports the automatic search and lock functions of the frequency points.
4 Support the continuous operation bandwidth of maximum 75M.
5 GSM system supports 16 frequency points at most.
l Plug-and-Play
l Channel Selective
l Up Link Mute
l 30dB Adaptive Echo Interference Cancellation
l 75dB Gain(External Donor Antenna) with Auto Power Level Control
l Channel-based Power/Gain Configuration and Control
Technical Specification
Parameter |
Specification |
Remark |
|
Working frequency |
UL: 1920MHz~1980MHz DL: 2110MHz~2170MHz |
WCDMA Band |
|
Carrier number |
3 (Three consecutive carrier) |
|
|
Max. Gain |
75±3dB (Gain range 45~75dB) |
|
|
Max. Output Power |
UL:15dBm;DL:15dBm Normal temperature error: ±3dB; High and low temperature error: ±4dB. |
3GPP TS 25. 106 |
|
Gain adjustment range |
UL&DL 0dB~30dB Independently adjustable, 1dB/step |
|
|
Gain control precision |
0dB~20dB ≤ 1.0dB 20dB~30dB ≤ 1.5dB Test in the case of full power back 5 dB |
|
|
ALC |
≥20dB,(Gain compression≥24dBShut off the output, ≤18dBRestore the output) Test @75dB gain &10dBm output |
|
|
Gain Flatness |
≤3dBpp (Three consecutive carrier) |
|
|
DL Output intermodulation |
3GPP TS 25. 106 |
3GPP TS 25. 106 |
|
ACRR |
offset ±5MHz ≥20dB offset ±10MHz ≥20dB |
3GPP TS 25. 106 |
|
Noise factor |
≤6dB |
|
|
Frequency stability |
0.01ppm |
3GPP TS 25. 106 |
|
Time delay |
≤10.5us |
|
|
Self excited elimination degree |
≥30 dB (Gain 15dB bigger than isolation, EVM≤ 12.5% @75dB Gain (Typical values: EVM≤ 5%@75dB Gain 15dBm Output).) |
|
|
EVM |
EVM≤ 12.5%@75dB |
3GPP TS 25. 106 |
|
PCDE |
PCDE≤ -35 dB |
3GPP TS 25. 106 |
|
Out-of-band gain |
≤ 60dB @ 2.7MHz≤f_offset <3.5MHz, |
3GPP TS 25. 106 |
|
≤ 45dB @ 3.5MHz≤f_offset <7.5MHz |
3GPP TS 25. 106 |
||
≤ 45dB @ 7.5MHz≤f_offset <12.5MHz |
3GPP TS 25. 106 |
||
≤ 35dB @ 12.5Mhz ≤f_offset |
3GPP TS 25. 106 |
||
Downward spurious emission |
In band |
2.515MHz<f_offset<2.715MHz:≤-22dBm/30kHz |
3GPP TS 25. 106 |
2.715MHz<f_offset<3.515MHz:≤-22dBm/30kHz |
3GPP TS 25. 106 |
||
3.515MHz<f_offset<4.0MHz:≤-34dBm/30kHz |
3GPP TS 25. 106 |
||
4.0MHz<f_offset<8.0MHz:≤-21dBm/1MHz |
3GPP TS 25. 106 |
||
8.0MHz<f_offset<f_offsetmax:≤-25dBm/1MHz |
3GPP TS 25. 106 |
||
Out of band |
9kHz~150kHz≤-36dBm/1kHz |
3GPP TS 25. 106 |
|
150kHz~30MHz≤-36dBm/10kHz |
3GPP TS 25. 106 |
||
30MHz~1GHz≤-36dBm/100kHz |
3GPP TS 25. 106 |
||
1GHz~12.75GHz≤-30dBm/1MHz |
3GPP TS 25. 106 |
||
VSWR |
≤2.0 |
|
|
Max. RF input |
-10dBm |
|
|
Monitoring |
USB interface |
|
|
RF connectors |
Built-in Retransmitting antenna; Donor antenna built in / outside optional |
|
|
Power consumption |
18W(In addition to the power adapter) |
|
|
Working voltage |
AC:220V |
|
|
Working Temperature |
-10℃~+40℃ |
|
|
Size |
270*210*65(mm) |
|
|
Weight |
1.8KG |
|
|
