KT-4G Max Coverage 1000sqm 4G LTE Mobile Signal Repeater Booster Quality Choice
What is the booster?
Cell phone signal booster (also named repeater, amplifier) is a product designed to solve the mobile phone blind signal. As the mobile phone signal is transmitted by electromagnetic waves to establish a communications link, however there are a lot barriers make it is unavailable to get sound signal. When people enter some tall buildings, some places basement malls, restaurants and parking lot, some places of entertainment such as karaoke sauna and massage, some public place such as subway, tunnel and etc. where cell phone signals can not reach, now the cell phone signal booster can solve these problems! The entire range of mobile phone signals can be well used; we all will get great convenience and benefit from sound signal.
Specification of Mobile Signal Repeater ST4G Max coverage 1000sqm
Specification |
uplink |
downlink |
|
Frequency : |
2500-2570mhz |
2620-2690mhz |
|
Max Gain |
76dB |
83dB |
|
Bandwidth |
70MHZ |
||
Ripple in Band |
≤8dB |
||
Max. Input Power Without Damage |
0 dBm |
||
Output Power |
23dBm |
27 dBm |
|
Noise Figure @ max. gain |
4.5db |
8db |
|
Return loss |
≤-8 dB |
||
Time Delay |
≤0.5 μs |
||
MTBF |
> 20000 hours |
||
Power Supply |
AC:90~265V, 50/ 60Hz;DC:5V 2A |
||
Power Consumption |
4W |
||
Impedance |
50 Ω |
||
RF Connector |
N -Female |
||
Cooling |
Heatsink Convection cooling |
||
Dimensions (D x W xH ) |
198*138*30 |
||
Weight |
1.1KG |
||
Installation Type |
Wall Installation |
||
Environment Conditions |
IP40 |
||
Humidity |
<90% |
||
Operating Temperature |
-10°C ~ 55°C |
||
ST-4G Mobile Phone Signal Repeater complete set introduction
If you need a 4G signal booster for your personal home use , We recommend you choose the easy installation Opion.
The Above complete set installation Steps :
Step 1 : Set the outdoor antenna at the place where have a good signal ;
Step 2: Use the 10meters cable to connect the outdoor antenna and the repeater (outdoor side );
Step 3: connect the indoor whip antenna on the repeater directly ;
Step 4:Plug the power supply , the repeater will work fine ,and your mobile signal be 5bars immediately !
(Please pay attention , Never plug the power supply before you confirmed antenna and cable be connected well , otherwise the repeater will may be broken. )
The Above complete set installation Steps :
<![if !supportLists]>1. <![endif]>Install the outdoor antenna option to the good signal place or Basestation direction;
<![if !supportLists]>2. <![endif]>Use the 8meters cable to connect the outdoor antenna and repeater ”outdoor side “
<![if !supportLists]>3. <![endif]>Use the 3meters cable to connect the indoor antenna and the repeater “indoor side “
<![if !supportLists]>4. <![endif]>Plug the power supply, the repeater will work fine ,and your mobile signal be 5bars immediately !
(Please pay attention , Never plug the power supply before you confirmed antenna and cable be connected well , otherwise the repeater will may be broken. )
The Above complete set installation Steps :
<![if !supportLists]>1. <![endif]>Install the outdoor antenna option to the good signal place or Basestation direction;
<![if !supportLists]>2. <![endif]>Use the 8meters cable to connect the outdoor antenna and repeater ”outdoor side “
<![if !supportLists]>3. <![endif]>Use 1 meters cable to connect the splitter and repeater “indoor side”
<![if !supportLists]>4. <![endif]>Use the 2piece 3meters cable to connect for the 2pcs indoor antenna
<![if !supportLists]>5. <![endif]>Plug the power supply, the repeater will work fine ,and your mobile signal be 5bars immediately !
(Please pay attention , Never plug the power supply before you confirmed antenna and cable be connected well , otherwise the repeater will may be broken.
1. Every internal antenna has a maximum coverage of 100 up to 300 m2, regardless of the range and power of the repeater.
2. You always need a splitter + extra coaxial cable when you want to install a second internal antenna.
3. Use one internal antenna per room under normal circumstances.

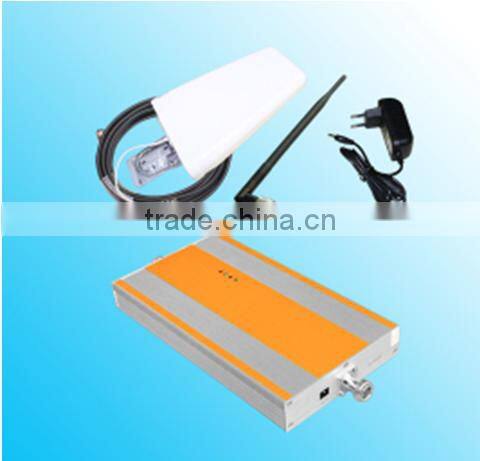

Complete set including :
1 pc Repeater ST-4G
1 pc outdoor LAP antenna
1 pc indoor Whip antenna
8meters cable for outdoor antenna connector
1 pc power supply
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : for more updated information .
welcome you to visit our company website: , for more information .
|
Quanzhou Kingtone Optics & Electronics Technology Co., Ltd
Add:3th Floor,Bld B,Yucheng Base, Keji Road,Fengze district ,Quanzhou ,Fujian,China.
|
|
Email: cary @ Tell: 86 595 28857991 Whatsapp:+86 13506927982 skype: cary.cao4 Web: ; |
