Help CenterWholesale High Gain Dual Band GSM Repeater 3g
Related Products
-
GSM Repeater 900mhz Mobile Phone Signal Extender Outdoor Signal Coverage SystemUS$ 1 - 999MOQ: 1 Set -
Outdoor 3g 2100mhz Solar Power or Battery Wireless Repeater Cell Phone Mobile Signal RepeaterNegotiableMOQ: 1 Set
-
High Power CDMA, GSM, WCDMA Booster 33dBm Indoor Mobile Signal Line Amplifier / Trunk RepeaterUS$ 1 - 399MOQ: 1 Piece
-
High Power GSM UMTS 850MHz 10W Band Selective Signal Booster RF RepeaterUS$ 1 - 999MOQ: 1 Set
-
5 Watt Digital Repeater Wireless 2G 3G GSM 900Mhz ICS RepeaterUS$ 1 - 999MOQ: 1 Set
2.Never miss dropped calls;
3.Expanding the signal coverage;
4.Speed up the file transfer;
5.Signal regenarate and restore of network equipment;

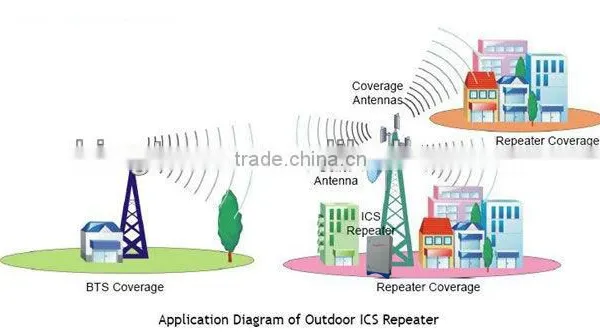

Typical Application:
Kingtone GSM Cell Phone Signal Booster Repeater widely used in the areas with small traffic volume and vast coverage.They are used in the places below:
Railways Tunnels Scenery Spots Compuses Hospitals
Oil Fields Roads Touns Rual areas Airports Venues
Factories Farms Mountainous areas
Technical Specification:
Items |
GSM Repeater |
|||||
Donor Unit |

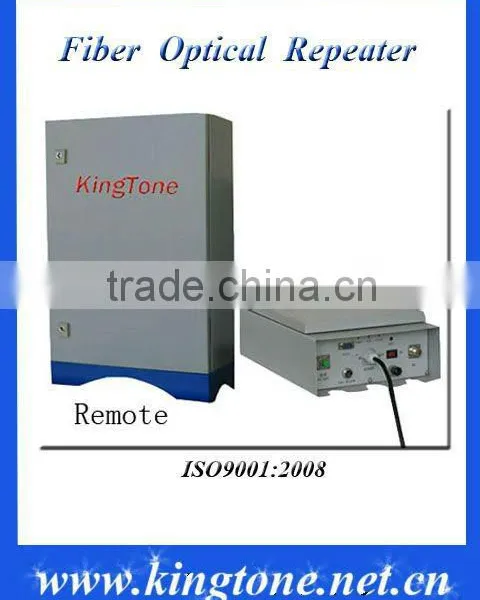

Remote Unit |
|||||
Frequency Range |
Uplink |
890-915MHz |
||||
Downlink |
935-960MHz |
|||||
Working Band Width |
Various bandwidth is available upon request |
|||||
No. of Channels |
1,2,4,6,8,12,16foroption |
|||||
Transmission Distance |
Max20KM(From Donor Unit to Remote Unit) |
|||||
Max Input Level |
+10dBm |
|||||
Output Power |
Uplink |
Min-10dBm |
- |
|||
Downlink |
- |
Min37dBm-48dBm(5W-60W) |
||||
Gain |
Min50dB |
|||||
AGC Control Range |
Min20dB(+/-2dB) |
|||||
Gain Control Range |
31dB(1dBStep) |
|||||
VSWR |
<1.5 |
|||||
Ripple in Band |
Max+/-1.5dB |
|||||
Inter modulation attenuation |
≤-45dBc ; ≤-36dBc |
|||||
|
Spurious Emissions |
9KHz-1GHz |
Max-36dBm |
||||
1GHz-12.75GHz |
Max-30dBm |
|||||
RF Connector |
N-type Female |
|||||
I/O Impedance |
50ohm |
|||||
Noise Figure |
Max5dB |
|||||
Group Time Delay |
Max12µS |
|||||
|
Optical Fiber Specification |
Wave Length |
1.31µm;1.55µm |
||||
Output Power |
Min0dBm |
|||||
Fiber Type |
G652 |
|||||
Fiber Connector |
FC/PC |
|||||
Sensitivity |
Max-13dBm(C/N=20dB) |
|||||
Time Delay |
Max5µS/KM |
|||||
Temperature Range |
-30degreeCelsiusto+55degreeCelsius |
|||||
Relative Humidity |
Max95% |
|||||
M.T.B.F |
Min100000hrs |
|||||
Power Supply |
DC-48V / AC220V (50Hz)/AC110V(60Hz)(+/-15%) |
|||||
UPS Backup Power Supply(Optional) |
6hours/8hours |
|||||
NMS Monitor Function |
Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power, Gain, Uplink ATT, Downlink ATT and etc. |
|||||
Remote Control Module(Optional) |
RS232orRJ45+WirelessModem+ChargeableLi-ionBattery |
|||||
