Home > Electrical & Electronics > Antenna > Communication Antenna > 824-960 MHz 12~14 DBi Base Panel Directional Antenna, Repeater Antenna, Quality Choice

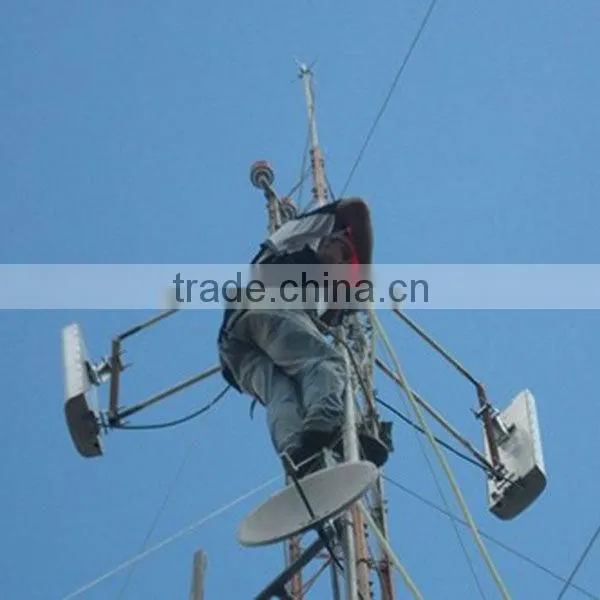

824-960 MHz 12~14 DBi Base Panel Directional Antenna, Repeater Antenna, Quality Choice
US$ 1 - 100
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
KINGTONE
Model Number:
KTWTD-14120-08 /ktWTD-14120-09V
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wholesale Indoor Omnidirectional Ceiling Antennas Ceiling Antenna Indoor Celling AntennaUS$ 3 - 5MOQ: 100 Pieces -
0.6m GSM Grid Parabolic Antenna 824-960 MHz 13dBI High GainUS$ 1 - 999MOQ: 2 Pieces
-
Professional 5dBi Omni-directional Outdoor Antenna(824-960 MHz)US$ 1 - 99MOQ: 50 Pieces
-
0.6M Parabolic Antenna(1400-1880MHz) 1800mhz Link Antenna 19dBiUS$ 1 - 999MOQ: 2 Pieces
-
Mobil Phone External Antenna 800-2700MHz Log Periodic Antennas 12dBiUS$ 1 - 20MOQ: 10 Pieces
Place of Origin
Fujian, China
Brand Name
KINGTONE
Model Number
KTWTD-14120-08 /ktWTD-14120-09V
120°-14dBi Base Panel Directional Antenna(824-960 MHz)
824-960 MHz 14 dBi 120 degree base Panel Directional Wifi Antenna
Electrical specifications
Model |
KTTD-14120-08V |
KTTD-14120-09V |
Frequency Range |
824-896(MHz) |
890-960(MHz) |
Input Impedance |
50(Ω) |
|
VSWR |
<1.5 |
|
Gain |
14(dBi) |
|
(3dB)HPBW |
120°H-plane 7°E-plane |
|
F/B |
>20(dB) |
|
Maximum Power |
500(W) |
|
Polarization |
Vertical Polarization |
|
PIM |
<-107(dBm) |
|
Connector Type |
7/16 or N-K |
|
Lighting Protection |
Direct Ground |
|
Ambient temperature |
-40°C— +60°C |
|
|
Mechanical specifications | ||
Radome Material |
ABS |
|
Radom Colour |
Ashen |
|
Wind Velocity |
200(km/h) |
|
Height/Width/Depth |
1700/280/130(mm) |
|
Weight |
17(kg) |
|
Hold Pole Diameter |
Φ50-Φ114(mm) |
|
