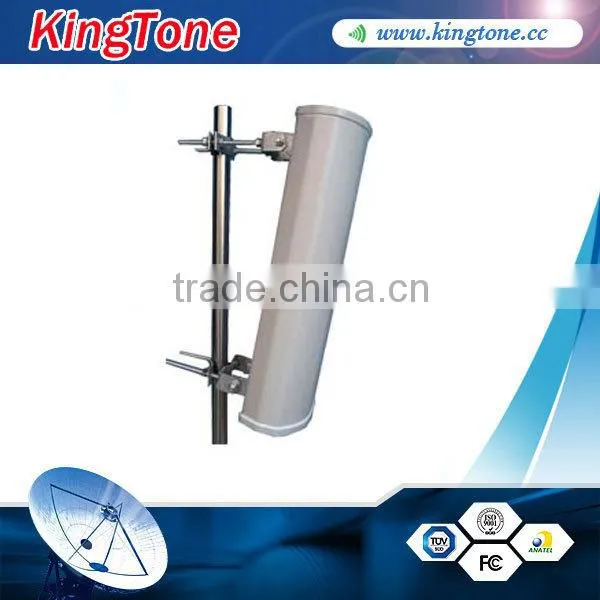

12dBi High Gain GSM Repeater Antenna, 850MHz 900MHz GSM Passive Antenna, GSM Directional Antenna
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Kingtone
Model Number:
KTPDA-15065-09V
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
90Degree-15dBi Base Panel Directional Antenna(824-960 MHz) Outdoor GSM Panel AntennaUS$ 99 - 199MOQ: 1 Piece -
850MHz 900MHz Outdoor GSM Antenna, GSM Booster Antenna, GSM Sector AntnennaUS$ 1 - 99MOQ: 1 Piece
-
High Gain 11dBi 800-2700MHz Log Periodic 2G 3G 4G Yagi Antenna Quality ChoiceUS$ 1 - 15MOQ: 5 Pieces
-
806-960MHz 850/900MHz Yagi Directional AntennaUS$ 1 - 25MOQ: 1 Piece
-
806-960MHz GSM CDMA Cell Phone Passive Repeater AntennaUS$ 1 - 99MOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
Kingtone
Model Number
KTPDA-15065-09V
12dBi High Gain GSM Repeater Antenna, 850MHz 900MHz GSM Passive Antenna, GSM Directional Antenna
Model |
KTPDA-15065-09V |
Frequency Range |
890-960(MHz) |
Input Impedance |
50(Ω) |
VSWR |
<1.5 |
Gain |
15(dBi) |
(3dB)HPBW |
65°H-plane 17°E-plane |
F/B |
>25(dB) |
Maximum Power |
500(W) |
Polarization |
Vertical Polarization |
PIM |
<-107(dBm) |
Connector Type |
7/16 or N-K |
Lighting Protection |
Direct Ground |
Ambient temperature |
-40°C— +60°C |
|
Mechanical specifications | |
Radome Material |
ABS |
Radom Colour |
Ashen |
Wind Velocity |
200(km/h) |
Height/Width/Depth |
1200/280/80(mm) |
Weight |
12(kg) |
Hold Pole Diameter |
Φ50-Φ114(mm) |
