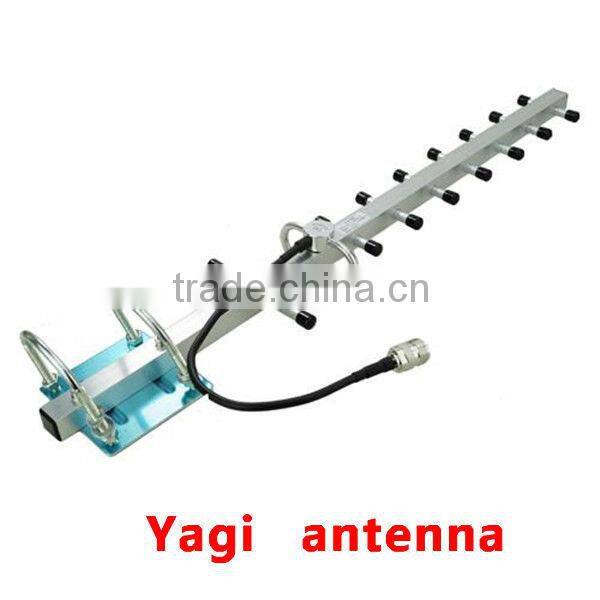

11db Outdoor Directional Yagi 800Mhz/850MHz/900MHz GSM Antenna for Cellular Mobile Cell Phone Signal Repeater Booster Amplifier
GSM Antenna for Cellular Mobile cell phone signal Repeater Booster Amplifier
Features:
1, Support the popular communications systems,currently on 800 / 850 /900MHz Band;
2, Low VSWR , High gain;
Specification:
Model |
KT-12/11/9-08/09V |
Frequency Range |
806-960(MHz) |
Input Impedance |
50(Ω) |
VSWR |
<1.5 |
Gain |
12/11/9(dBi) |
(3dB)HPBW |
50°/60°/75°H-plane 45°/50°/55°E-plane |
F/B |
>15 |
Maximum Power |
200(W) |
Polarization |
Vertical Polarization |
Connector Type |
N-K |
Lighting Protection |
Direct Ground |
Ambient temperature |
-40°C— +60°C |
|
Mechanical specifications | |
Length |
820/650/490(mm) |
Structure |
9/7/5 unit |
Wind Velocity |
200(km/h) |
Weight |
0.7/0.65/0.6(kg) |
Hold Pole Diameter |
Φ40-Φ60(mm) |
