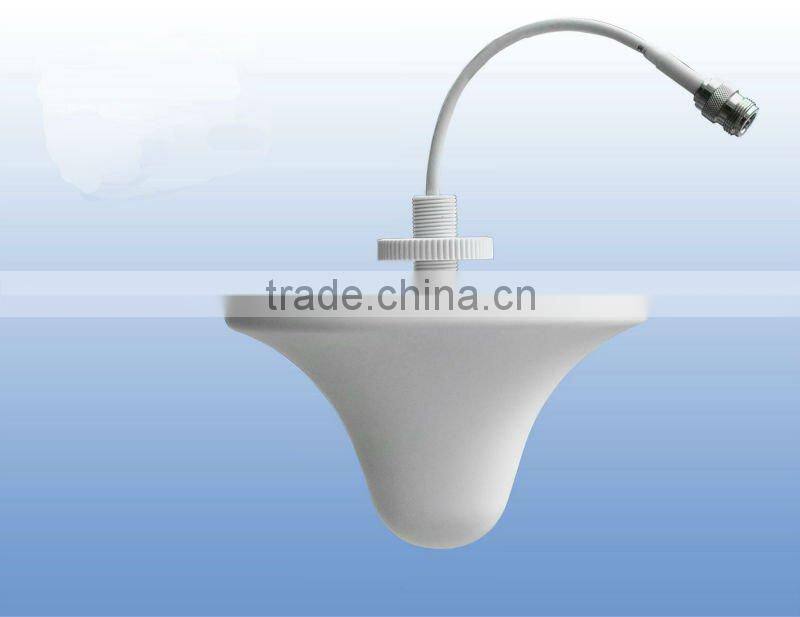

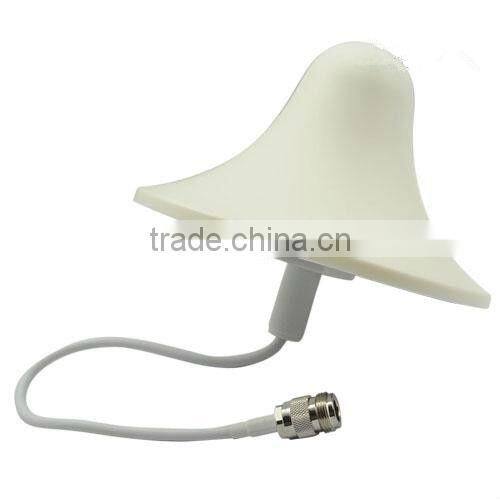

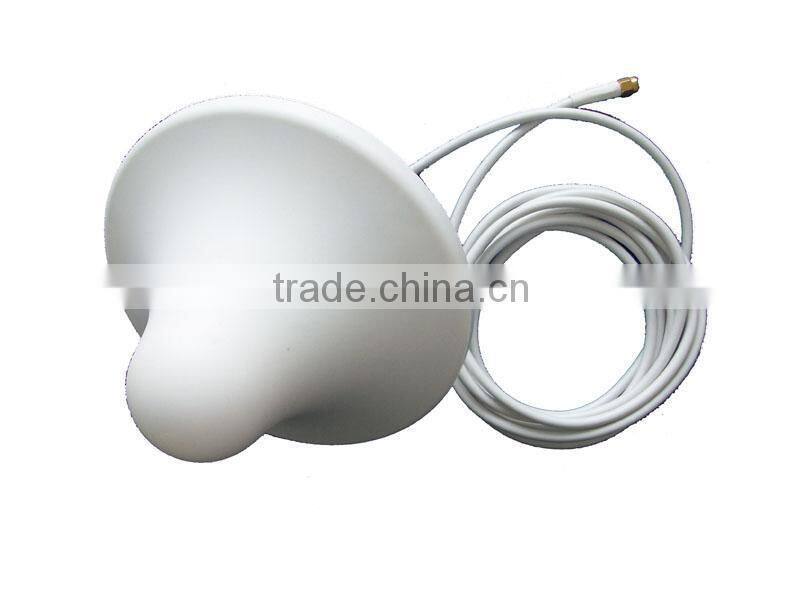

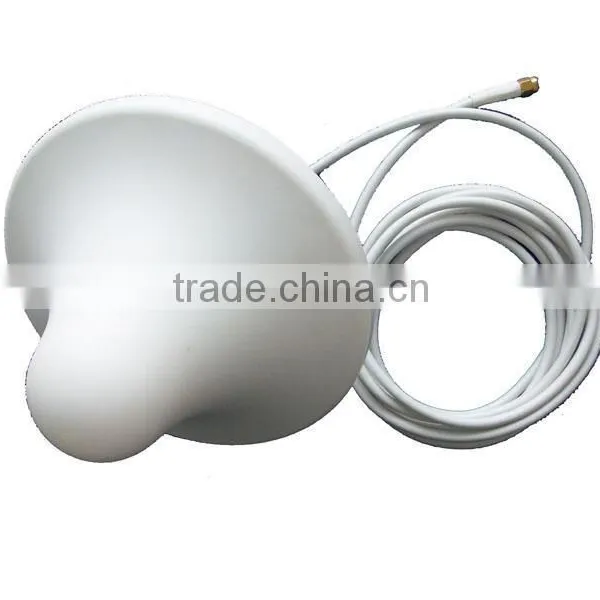

High gain gsm booster antenna omni 360 antenna cell phone signal booster antenna
Technical Specification:
Model |
KT-0827A |
Frequency Range |
800-960(MHz) 1710-2700(MHz) |
Input Impedance |
50(Ω) |
VSWR |
<1.3 |
Gain |
3(dBi)/5dBi |
(3dB)HPBW |
360° |
Maximum Power |
100(W) |
Polarization |
Vertical Polarization |

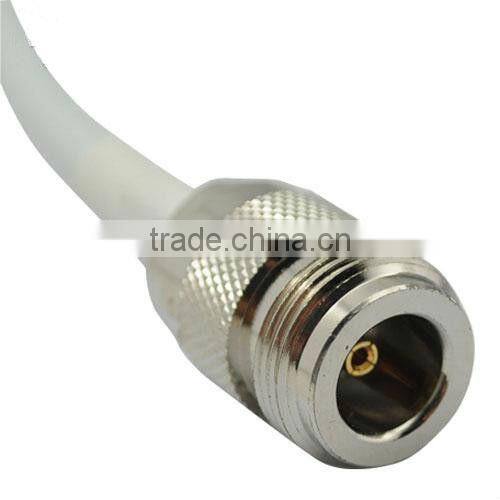

Connector Type |
N-K |
Radom Material |
ABS |
Radom Colour |
White |
Height |
75(mm) |
Weight |
0.2(kg) |
Application
- CDMA / GSM / 3G / 2.4GHz WLAN / LTE
- Wireless pubic hotspot coverage
- Wireless communication & Data transmission.
- Indoor signal coverage
- TDD/FDD-LTE
Attention:
- This is an indoor omni-directional antenna only. It doesn't work alone. You need a Cell Phone Signal Booster/Repeater to work with this antenna.
- This indoor omni-directional antenna is designed together with the cable , in order to reduce the loss of the signal and it can be installed easily .
- The antenna mustn’t be near to fire.

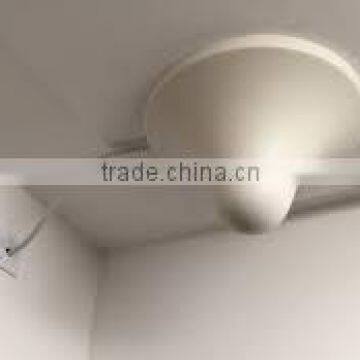

Installation instruction:
- In accordance with the installation sketch, drill a hole of Φ35mm in the ceiling.
- Screw the fixing nut to fasten the antenna on the ceiling.
- The ceiling’s thickness is at most 20mm.
Product range: GSM / CDMA / DCS / WCDMA / TETRA / LTE Wireless Full Band Repeater, Fiber Optic Repeater, Frequency Shifting Repeater, Digital / Analog Repeater, Trunk Amplifier
Support System |
Frequency Range |
Output Power |
GSM900MHZ |
890-915MHz/935-960MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
DCS1800MHz |
1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
PCS1900MHz |
1895-1910MHz/1975-1990MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA450MHz |
450-457.5MHz/460-467.5MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA800MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
CDMA1900MHz |
1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS850MHz |
824-849MHz/869-894MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
UMTS2100MHz |
1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/30W/40W/50W/60W |
GSM900/1800MHZ |
890-915MHz/935-960MHz 1710-1785MHz/1805-1880MHz |
2W/5W/10W/20W/ |
GSM850/1900MHZ |
824-849MHz/869-894MHz 1880-1890MHz/1960-1970MHz |
2W/5W/10W/20W |
GSM900/UMTS2100 |
890-915MHz/935-960MHz 1920-1980MHz/2110-2170MHz |
2W/5W/10W/20W/ |
Our present manufacturing service:
1. Single-band repeaters of LTE/GSM/CDMA/PCS/DCS/WCDMA
2. Dual-band repeater of GSM/DCS; GSM/WCDMA; CDMA/PCS;
3. Tri-band repeater of GSM/DCS/WCDMA
4,Trunk Amplifier
5. All kind of Antenna/Splitter/Connector/Cable
| Packaging Detail |
Standard Package 1) Signal Repeater (AC power cord EU standard/ US standard/ UK standard) 1PC 2) Installation kit 1PC 3) User manual 1PC |
| Delivery Detail shipping |
10-15working days after received payment DHL, UPS, FEDEX, Air/Sea freight |
- .If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
- .If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
- .If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
- Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
