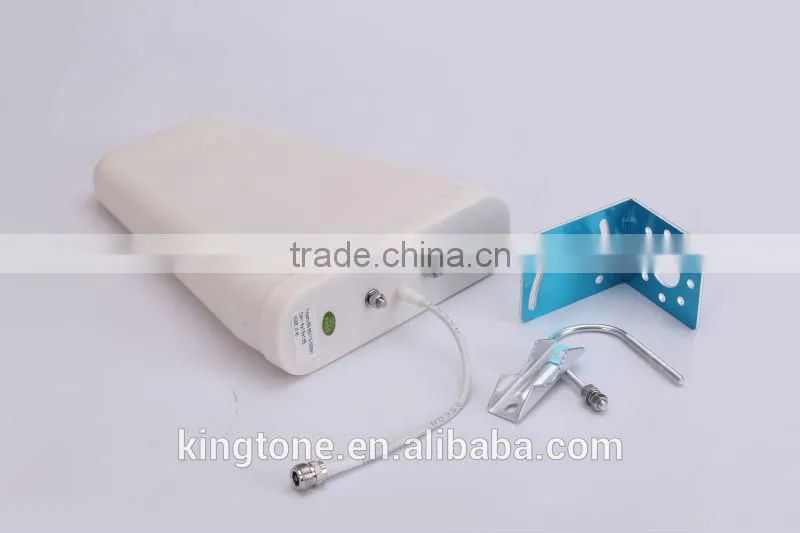

Promotion!!! 800-2700MHz Log Periodic Antennas GSM/CDMA/3G/4G Yagi Antenna
Specification
|
|
|
|
Model |
TDJ-0827DSAN-12 |
||
|
|
||
|
Frequency Range-MHZ |
800~960/1710~2700 |
||
|
Gain-dBi |
12 |
||
Vertical Beamwidth-° |
50/40 |
||
Horizontal Beamwidth-° |
65/50 |
||
F/B Ratio -dB |
≥18 |
||
VSWR |
≤1.5 |
||
Nominal Impedance-Ω |
50 |
||
Polarization |
Vertical |
||
|
Maximum Power-W |
100 |
||
|
Dimension-mm |
495×210×65 |
||
|
Weight-kg |
1.2 |
||
|
Connector |
N female |
||
|
Remarks |
Poles Mounting |
||
Installation:
1, Installation instruction: In accordance with the installation sketch,

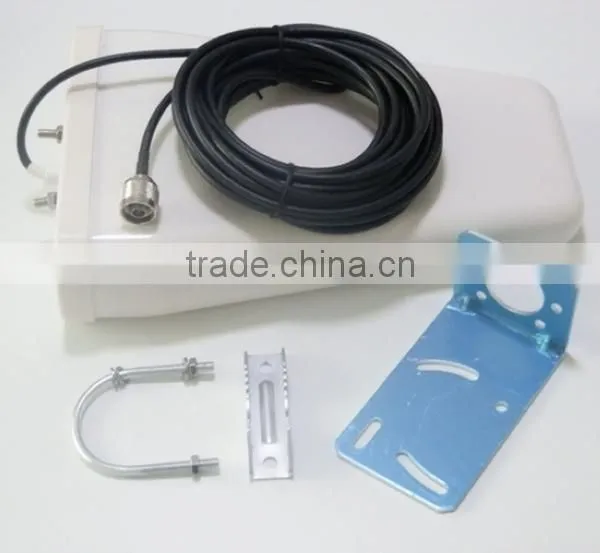

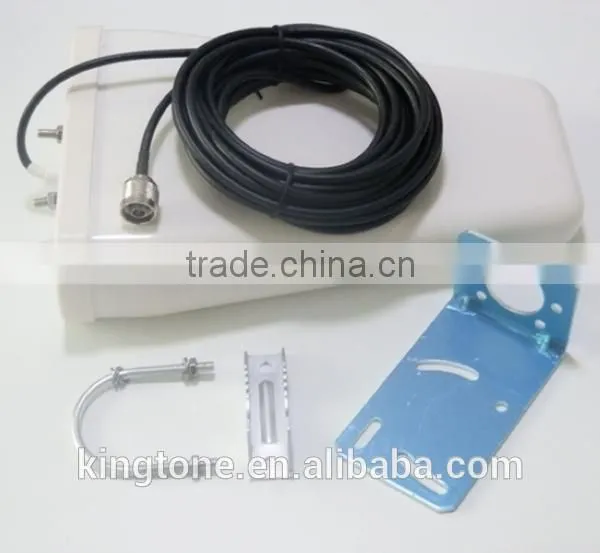

Mount the antenna on the “L” type brackets according to the mounting diagram,and then mounted it to a mast. The dimension of mast is 30-50mm.
2, Storage and transportation:
A, The antenna must be stored in room temperature and dry environment;
B, Handle the antenna with care
3, Attention: The antenna mustn’t be near to fire.
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : for more updated information .
welcome you to visit our company website: , for more information .
My contact info :
Kingtone, connecting the world seamlessly !
|
|||||
| |||||
|
