OEM CAT5E FTP Cable, Shielded Network Cable, Aluminum Mylar Shied Structure

Specifications

Specifications
1.8 cores,FTP,CAT.5E
2.Twisted Pair
3.Bare solid copper conductor.
4.lead free PVC or LSOH jacket



Product name:   OEM CAT5E FTP Cable, Shielded Network Cable, Aluminum Mylar Shied Structure



Feature:

1.Bare solid copper conductor;

2.Color-coded PE insulation;

3.Rip cord (optional);

4.Lead free PVC or LSOH jacket;

5.Flammability grade:CMX,CM,CMG,CMR;

6.TIA/EIA568B IEC/ISO11801;

7.Rated temperature:60°c,75°c.



The cat5e data copper cable with high-quality eletric and mechanical performance can satisfy high-end requirements.

Adopts shielding aluminum foil, able to reach a very good shielding effect.

Compatible with all connecting hardwares and subject to EN50173 and ISO/IEC 11801 standards.





Product application:

The structured cabling data transmission cable transmits digital, voice, data and video signals ,especially suitable for the application of all level D links and CAT5E ,including ISDN,10Mbit Ethernet, 100Mbit Fast Ethernet, 1Gbit Ethernet ,4/16Mbit/s Token Ring, TP-PMD/TP-DDI 125Mbit/s and ATM155 Mbit/s





Technical Specification:



Cat5e FTP LAN Cable
Conductor material	CCA+CCS, CCA, Copper,Bare solid copper
Conductor diameter	Solid one: 0.4mm, 0.45mm, 0.5mm
	Stranded one: 24 AWG, 26 AWG, 28 AWG
Num of Conductor	2P, 4P, 8P, 10P, 25P, 50P, 100P, 200P ,,,,,lan cable
Insulation material	PE , HDPE
Insulation diameter	0.9±0.02mm
Jacket material	PVC, ROHS PVC, LSZH PVC
Print words on Cable	CAT5E 4PR/24AWG VERIFIED TO EIA/TIA 568B.2 ISO/IEC 11801 EN501

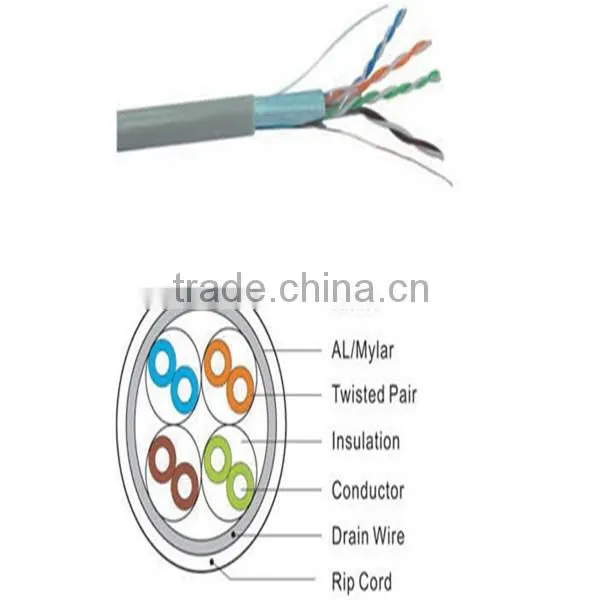

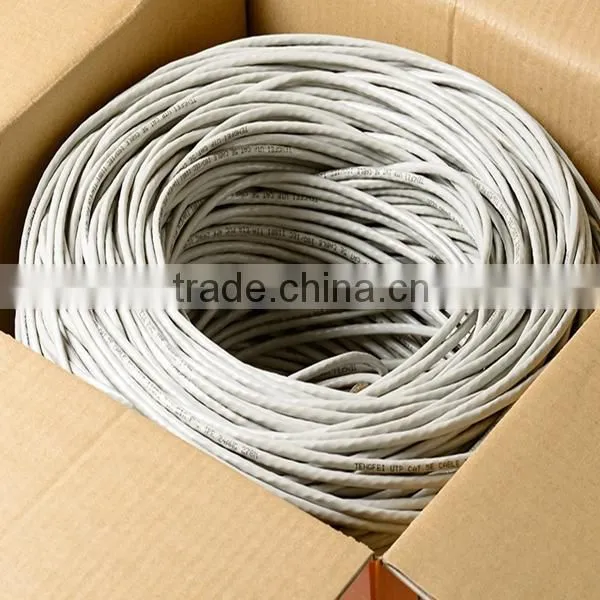

Product image:





Order information:



model	construction	conductor  AWG	conductor Diameter(mm)	shidlding	Jacket	O.D.(mm)	Packing

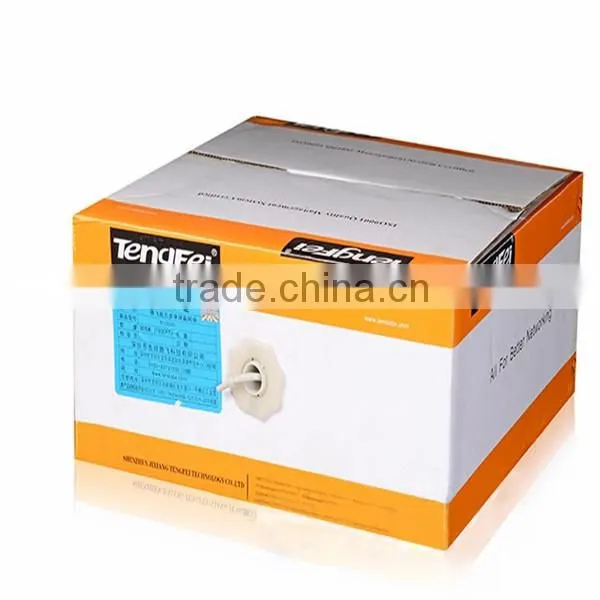

TF1003D	FTP	24	0.53	PET/AL	PVC	6.3	305m/box,3boxes/ctn
TFP1004	FTP	24	0.53	PET/AL	PE+PVC	6.3	305m/box,3boxes/ctn

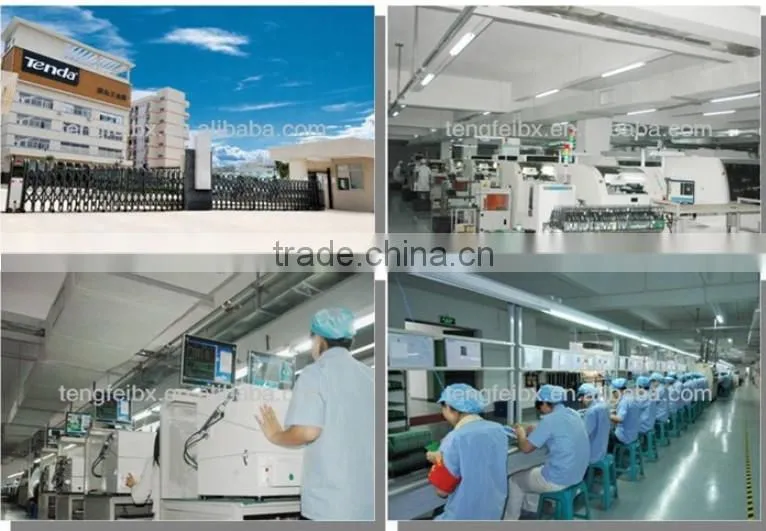

Company Show:



Certification:
